SIMOLIO SM-826D - MM;Aux Analog Connection; Other Connections in Special Cases

SETTINGS
ANALOG AUDIO OUT
VARIABLE
FIXED
SOUND / AUDIO
Fig 3-12
* Your TV’s analog audio settings may be set to
“Variable” or “Fixed”. If you want to be able to
control your TV volume level separate from your
SIMOLIO SM-826D volume level, you will need to
make sure your TV is set to “Fixed”. Contact your
TV manufacturer for assistance. (Ref. Fig 3-12)

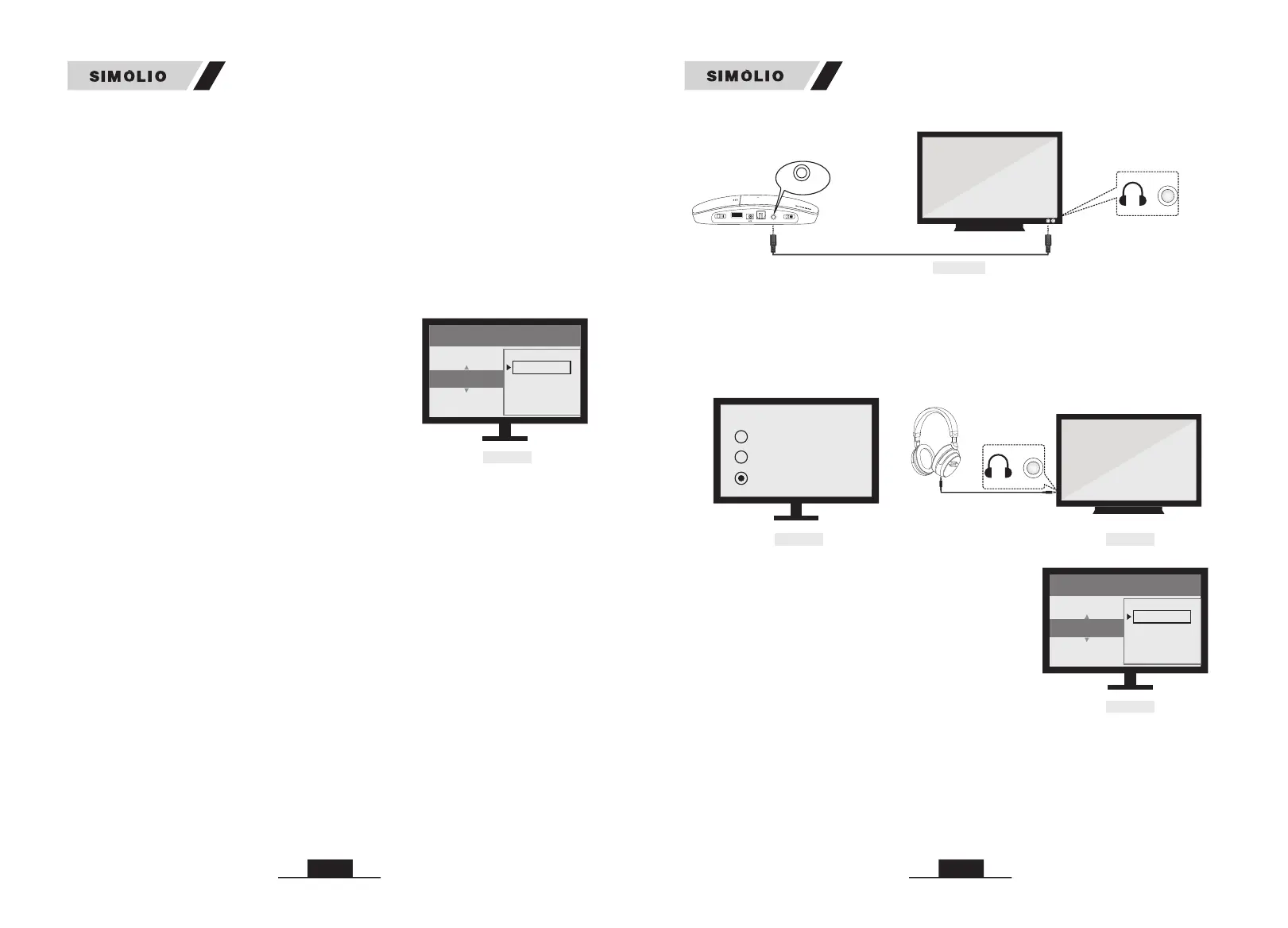

3.3 3.5mm/AUX Analog Connection
This part is an alternative to 3.1 and 3.2 on page 8-10. This part will explain how
to connect the SIMOLIO SM-826D transmitter to your television, satellite, or
cable box using a 3.5mm/AUX analog audio cable.
POWER OUT
DC 5V/500mA
STEREO
MONO
OFF
OFF/ON
DC 5V
POWER IN
OPTICAL IN
AUDIO IN
BASS
TREBLE
NORMAL
TONE
AUX/3.5mm Audio Cable
H/P or
A
u
d
i
o Ou
t
Fig 3-13
Plug one end of the 3.5mm audio cable into the “Audio Out” port on the back of
the TV. Plug the other end of the audio cable into the port labeled “AUDIO IN” on
the back of the transmitter.
• If you cannot get to the back of your TV and you only watch the programs
through a fixed TV box (cable/satellite box/DVD etc.), you can also use these
instructions to install the system to your TV box.
• If you connect the 3.5mm audio cable to the 3.5mm Audio Out port which is
usually a Headphone port on your TV, your SIMOLIO SM-826D will still
function properly, but the sound to your TV internal speakers will be muted. The
port is usually labeled with an headphone icon.
• Be aware that the base should be placed at least 4 feet away from your
Router/smart WiFi TV/TV sticks/WiFi TV box to avoid interference.
*Setting menu may be different depending on
different TV brands and models.
Step 1. Hook up SIMOLIO to the 3.5mm Audio Out Port of the TV/other
Audio Device
A
U
D
I
O I
N
Notes:
* If your TV only support single sound out, the TV’s speakers will be either
automatically muted when you plug something into an audio out port (Optical/
AUX/RCA, etc.) or they become disabled once you choose "External Speakers"
as your TV's audio output. It depends on TV circuit design.
For most TVs, the TV's internal speakers and an external audio device can work
simultaneously. Such as, for some newer LG TVs, when do analog RCA audio
connection, you can set the “Sound Out” to “Internal TV Speaker + Headphones”.
And for some newer Samsung TVs, you can enable this feature by selecting “TV
Speaker” from the TV Sound Output lists.
Fig 3-14
Step 2. TV Audio Out / TV Speaker Setting (use TV remote control)
If you can not hear sound from your headphones after connecting:
3.5mm Audio Cable
Notes:
* Your TV’s audio settings may be set to “Variable”
or “Fixed”. We recommend that you set your audio
settings to “Fixed” for better audio quality when
using this installation option. If you want to be able
to control your TV volume level separate from your
SIMOLIO SM-826D volume level, you will need to
make sure your TV is set to “Fixed”. Contact your
TV manufacturer for assistance.
• Use the AUX/3.5mm cable to plug the headphone into the headphone/3.5mm
audio output of the TV to test if you can hear the TV sound. (Ref. Fig 3-15)
Fig 3-15
Fig 3-16
• Ensure your TV speaker is set to “Headset”. (Ref. Fig 3-14)
H
/P o
r
Au
d
io Ou
t
10 11
SETTINGS
ANALOG AUDIO OUT
VARIABLE
FIXED
SOUND / AUDIO
Speakers
Internal speakers
External speakers
Headset
1) TV/Audio Source only has Digital Coaxial Audio Out port
3.4 Other Connections in Special Cases
Step1. Purchase a Digital to Analog Converter and Set up as Shown in Fig 3-17
If your TV/Audio Source only has a digital coaxial audio out port, you will need a
digital to analog converter (DAC) for installation.
* Setting menu may be different depending on different TV brands and models.
03
02
01
SM-826D
SM-826D
