Simoniz S1700 - Parts Identification; Component Diagram and List

7
Parts List
Item no. Quantity Part Name Parts No.
11Up-handle assembly MH02-002-0000
21Gun holder MH02-000-0004
33Screw MH02-000-0006
41Detergent suction tube MH02-022-0014
51Detergent lid MH02-051-0000
61Inner detergent tube MH02-050-0001
71Detergent bottle MH02-050-0003
81Gun holster MH02-000-0019
91Quick-connect coupling MH02-020-0027
Item no. Quantity Part Name Parts No.
10 1 Inlet adaptor MH02-020-0026
11 1 Inlet cover (discarded)
12 1 Water filter MH02-020-0009
13 1 Outlet cover (discarded)
14 3 Nuts MH02-000-0009
15 1 Turbo wand MH02-000-0008
16 1 Adjustable wand MH02-000-0007
17 1 Pressure hose MH02-000-0003
18 1 Gun assembly MH02-061-0000

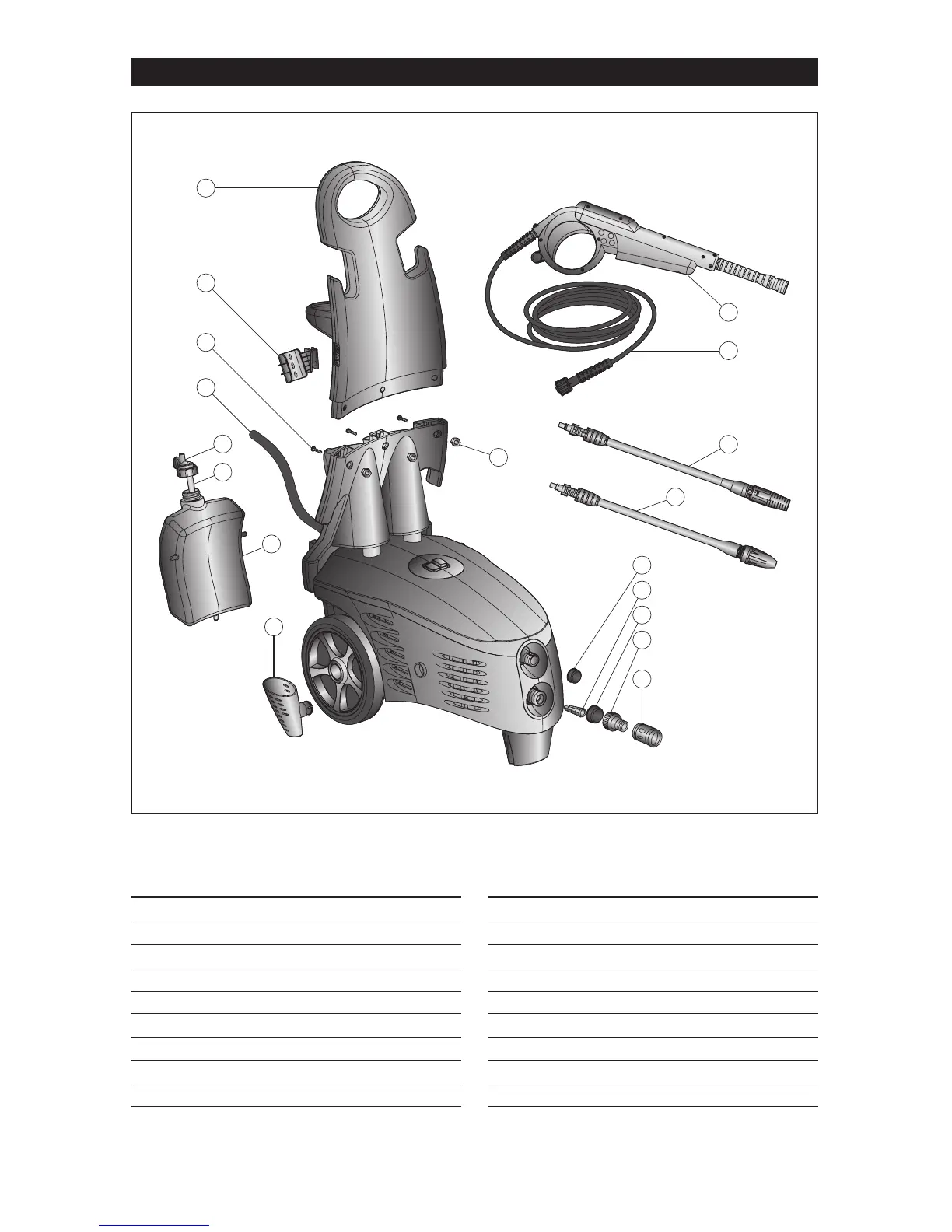

PARTS DIAGRAM AND LIST
9
11
12
13
4
5
6
7
8
3
2
10
14
1
15
16
18
17
