simplebus mt sb2 o3 - HAND-HELD PROGRAMMER ART 1251; Main Characteristics; POWER SUPPLIES AND ACCESSORIES; Art. 1214;2

MT SB2 03
23
MT SB2 03
ENGLISH

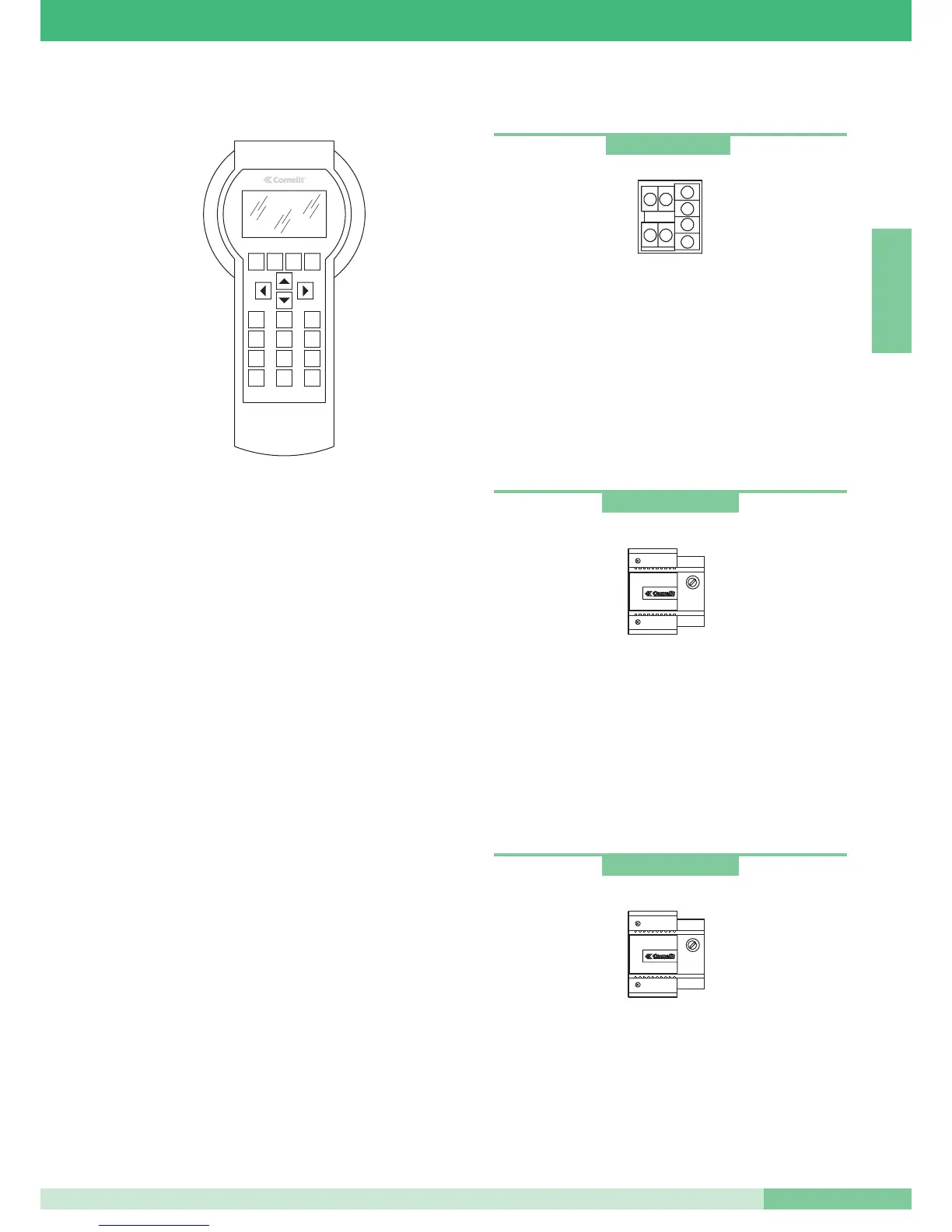

POWER SUPPLIES AND ACCESSORIESHAND-HELD PROGRAMMER ART 1251
The Programming Module of hand-held programmer Art. 1251
allows programming of the functions which can be associated with
the pushbuttons and of the intercom code of the internal extensions
of the Simplebus series.
Programming is carried out by means of a guided menu and only
requires knowledge of the structure of the system and location of
the various devices. The programmer also allows display to check
the functions associated with the pushbuttons of the internal
extensions and display of self-configuration of the intercom
interface for Simplebus system Art. 4897.
The Hand-held programmer module Art. 1251 is housed in a
portable container which can be powered by means of
rechargeable batteries or by a 230 Vac main network.
The Hand-held programmer module Art. 1251 pack contains the
cable for programming the internal extensions.
For correct use of programmer Art. 1251, please refer to the
MT/SB2/02 Manual enclosed with it.
Main Characteristics:
• Graphic display with 128x64 dots/pitch resolution.
• Membrane keypad with 20 alphanumerical keys.
• Internal contrast adjustment.
• Sturdiness and easy handling.
• Self-recognition of the device to be programmed.
• Allows programming of the functions associated with the pushbuttons
for the following articles:
- 5714, 4714W/2 Bracket for digital Simplebus system.
- 5714/I, 4714W/2I Bracket intercom for Simplebus system.
- 2418W Simplebus intercom telephone.
• Allows readout of the pushbutton settings or system configuration
for the following articles:
- 5714, 4714W/2 Bracket for digital Simplebus system.
- 5714/I, 4714W/2I Intercom bracket for Simplebus system.
- 2418W Simplebus intercom telephone.
- 4897 Intercom interface for Simplebus system.
• Possibility of displaying the programmer menus in one of the 9
languages available.
• Power supply from rechargeable batteries or mains network.
• Signalling for battery discharged.
• Timed Display illumination for energy saving.
. , :
F1 F2 F3 F4
123
456
789
*
0
#
ABC DEF
GHI MNO
PQRS WXYZ
JKL
TUV
Power supply for additional monitor
Power supply 15VA (intermittent).
Input: 230VAC
Output: 0- 20VDC 700mA
The transformer is fitted with internal protection PTC.
Dimensions: 87x105x65 (5 DIN modules).
Branch terminal and line termination
Terminal connection system:
Lin Lin: line riser input.
Lout Lout: line riser output.
LM LM: line riser branched towards the monitor/telephone.
+ +: terminals for power supply connection for compatibility
with Simplebus1 systems.
Transformer for intercom interface
Transformer: 60VA (intermittent).
Primary: 230VAC
Secondary: OUT1: 0-12V 1,5A
OUT2: 0-12V 1,5A
The transformer is fitted with internal protection fuse.
Dimensions: 87x105x65 (5 DIN modules).
Art. 1212/B
Art. 1214/2
Art. 1195
