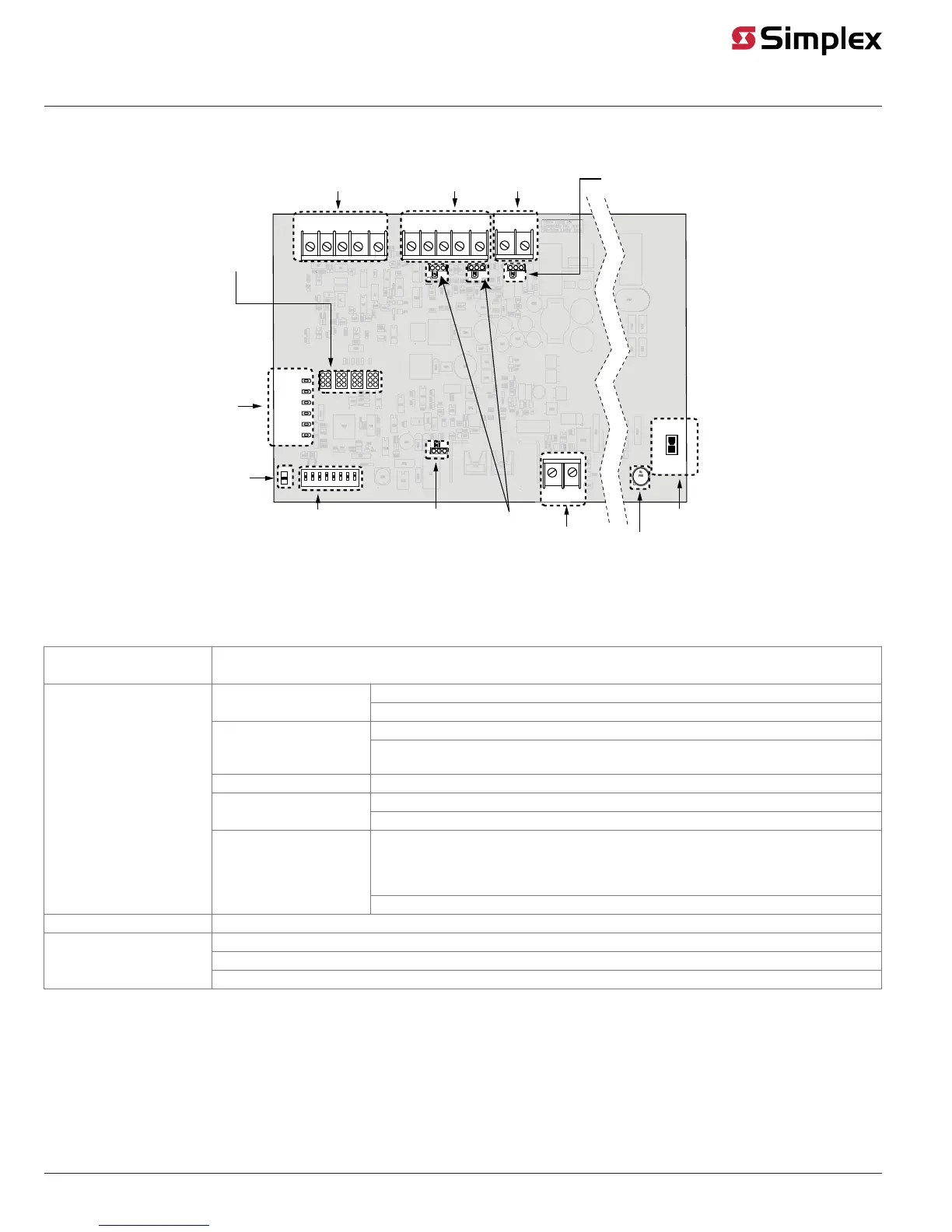

Page 2 579-1019 Rev M
4009 IDNAC Repeater Installation Instructions
Card layout and Specifications
Card layout
2 31 7654 8
IDNAC OUT
+ +
SHLD
- -
IDNAC IN
AUX OUTPUT
+ +
SHLD
- -
+
-
TB1
+
-
TB2
AC POWER
BATTERY INPUT
TRBL A
TRBL B
TRBL C
COMM
TRBL D
IDNAC In AUX OutputIDNAC Out
Battery
Input
Block
Address
Wiring
Mode
LEDs
Jumpers
Class A
Adapter
Connectors
AC Connector
Fuse
Trouble
Scroll
Switch
Low Battery
Disconnect
Jumper
J4
IDNAC IN line
termination Jumper
100%
Fig 2: Card Layout
Card specifications
Table 1: Card specifications
Operating conditions
32°F - 120°F (0°C-49°C)
Up to 93% relative humidity at 90°F (32°C), non-condensing
120 V, 50/60 HZ, 2.5 A
AC Input specifications
240 V, 50 HZ, 1.25 A
Standby: 70 mA plus 0.8 mA for an IDNAC device plus Aux Output current
DC Input specifications
(battery standby)
Alarm: 96 mA plus 1.37XSLC Load Current plus 1.37 X Aux Output Current. (4.5A maximum
with 3A IDNAC SLC load and 200mA Aux Output load)
IDNAC Input specification 1 address, 4 unit loads
Voltage: 29 V special application
IDNAC Output specification
Power: 3 A max.
Voltage: 29V DC Nominal with AC present or when powered from batteries with system
in Alarm or 24 V DC nominal when powered from batteries with system in Standby
mode. Special Application. Aux Loads include 4603-9101 Annunciator, 4100-96xx series
Annunciators, and 4090 series of IDNet ZAMs and IAMs
Electrical specifications
Aux Output specification
Power: 0.2 A max. @ 29 V
Earth fault Earth fault detection is 10 k minimum to any circuit
Charges up to 25 Ah sealed lead-acid batteries connected to the power supply
High Voltage Internal battery charger Output: 27.6 VInternal battery charger
Output Current Limit: 1.3 A
