Simplex 4020 Installation Instructions

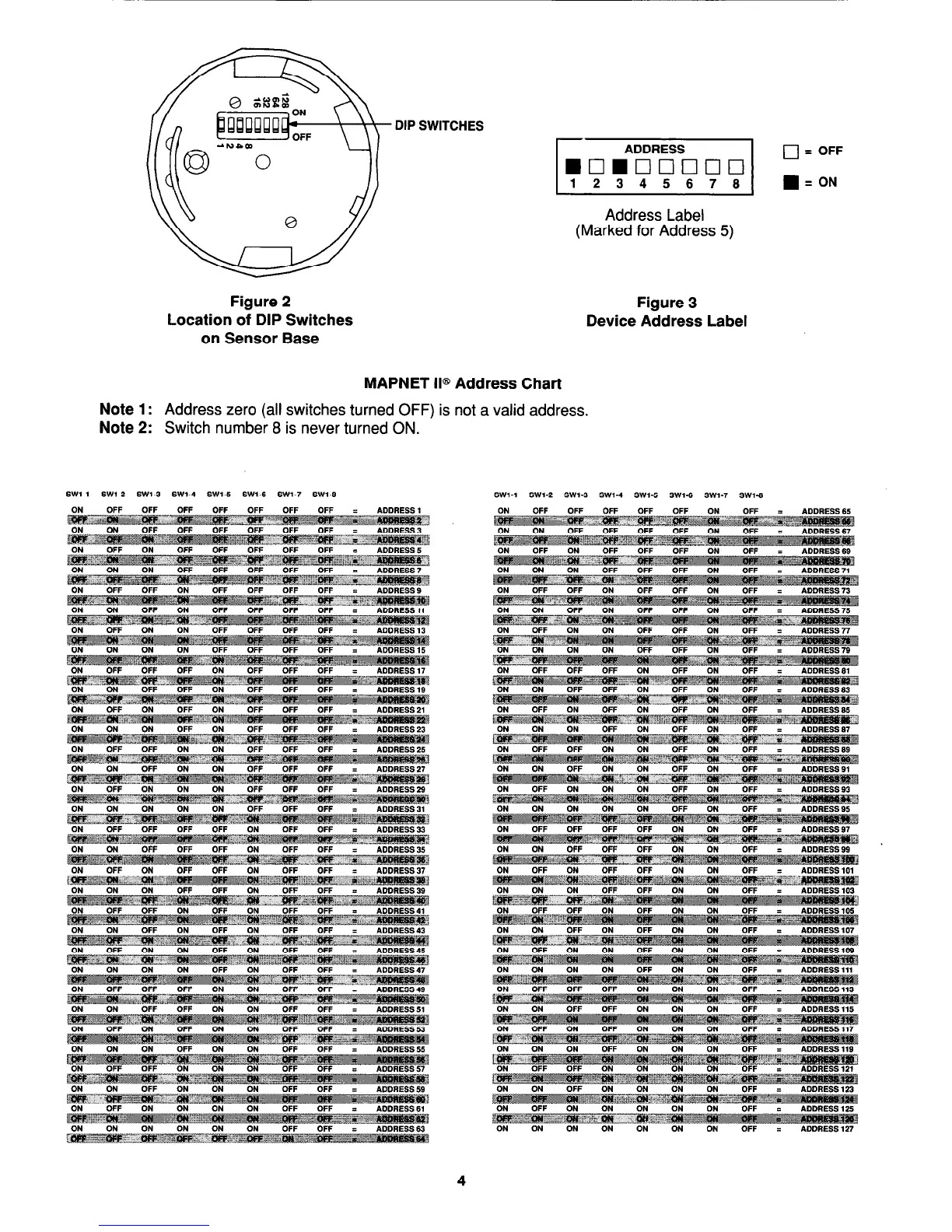

DIP SWITCHES
Address Label
(Marked for Address 5)
Figure 2
Location of DIP Switches
on Sensor Base
Figure 3
Device Address Label
MAPNET II@ Address Chart
Note 1: Address zero (all switches turned OFF) is not a valid address.
Note 2: Switch number 8 is never turned ON.
SWl-1 SW,-2 SW,-3 SW14 SW14 SW,-5 SW,-7 SW,-8
ON OFF OFF OFF
OFF OFF OFF OFF = ADDRESS 1
0 = OFF
n = ON
Technical Manuals Online! - http://www.tech-man.com

Simplex 4020 Specifications

General

Type	Fire Alarm Control Panel
Manufacturer	Simplex
Model	4020
Display	LCD
Frequency	50/60 Hz
Battery Backup	Yes
NAC Outputs	4
Power	120/240 VAC
Voltage	120/240 VAC
Operating Temperature	0°C to 49°C (32°F to 120°F)
Humidity Range	Up to 93% RH, non-condensing
Communication Protocol	Optional
