Installing the Digital Audio PDI Termination Plug
A Digital Audio Riser Termination Plug (734-183) is provided with every ES Net Digital Audio Controller or Digital Audio Riser Module. You must use this
termination plug to properly terminate the Digital Audio Signal on the PDI.
Installing the Digital Audio PDI Termination Plug
To properly terminate the Digital Audio Signal on the PDI, you must install the termination plug into P7 of the last bay that has digital audio. The Digital
Audio Controller (or Digital Audio Riser Module) should be the first item and the Digital Audio Termination Plug the last item in the Digital Audio PDI
bay-to-bay wiring. See Figure 16.
Place the Digital Audio PDI Termination Plug into P7 of the last bay with digital audio.

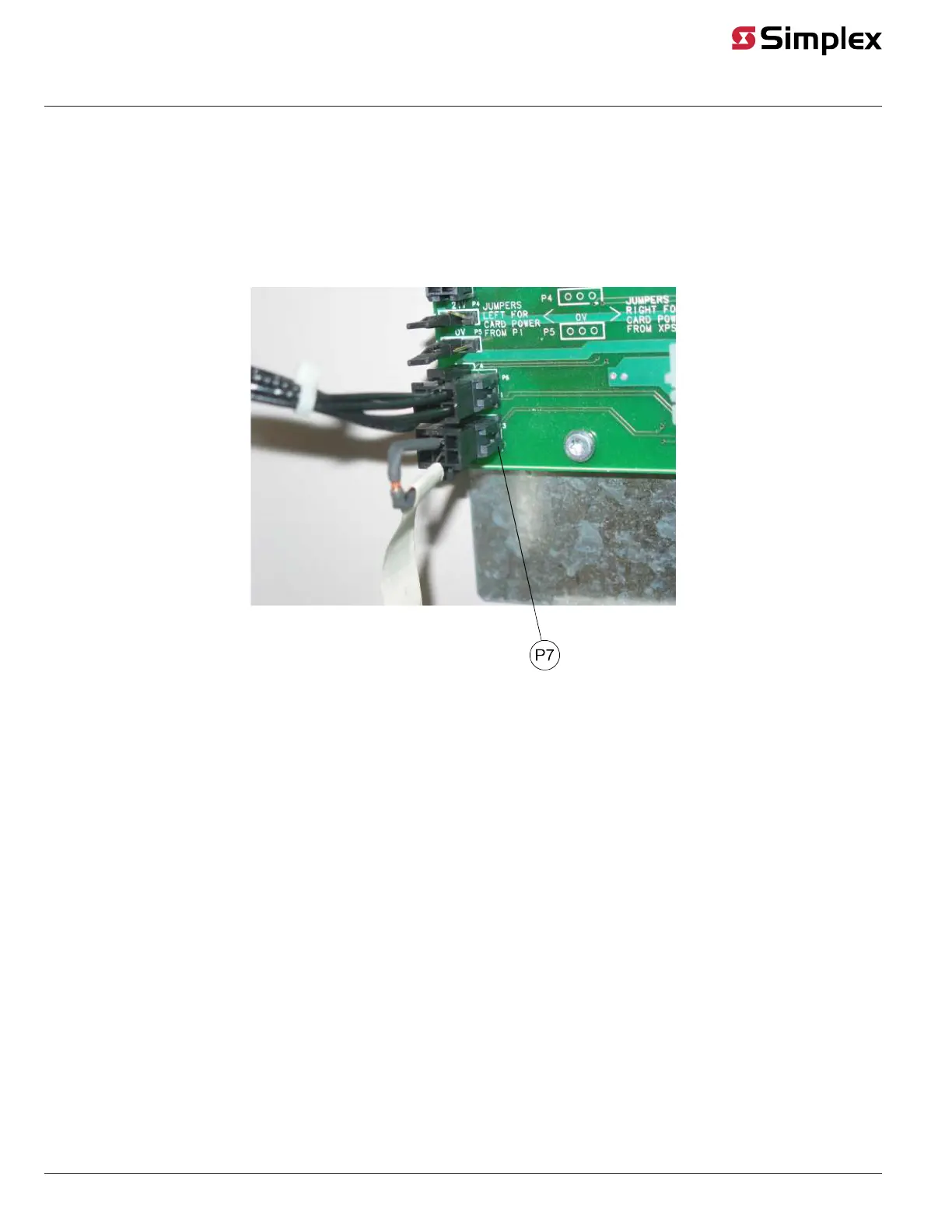

Figure 16: Installing a Digital Audio PDI Termination Plug
page 22 579-1408 Rev. B
ES Net Digital Audio Controller Installation Instructions
