Transponder bay
Use the ES Net DAC to connect to the Digital Audio Riser installed in Miniplex Transponders.
4100-1411 ES Net Digital Audio Controller with audio riser interconnections to TICs (constant supervision
applications)

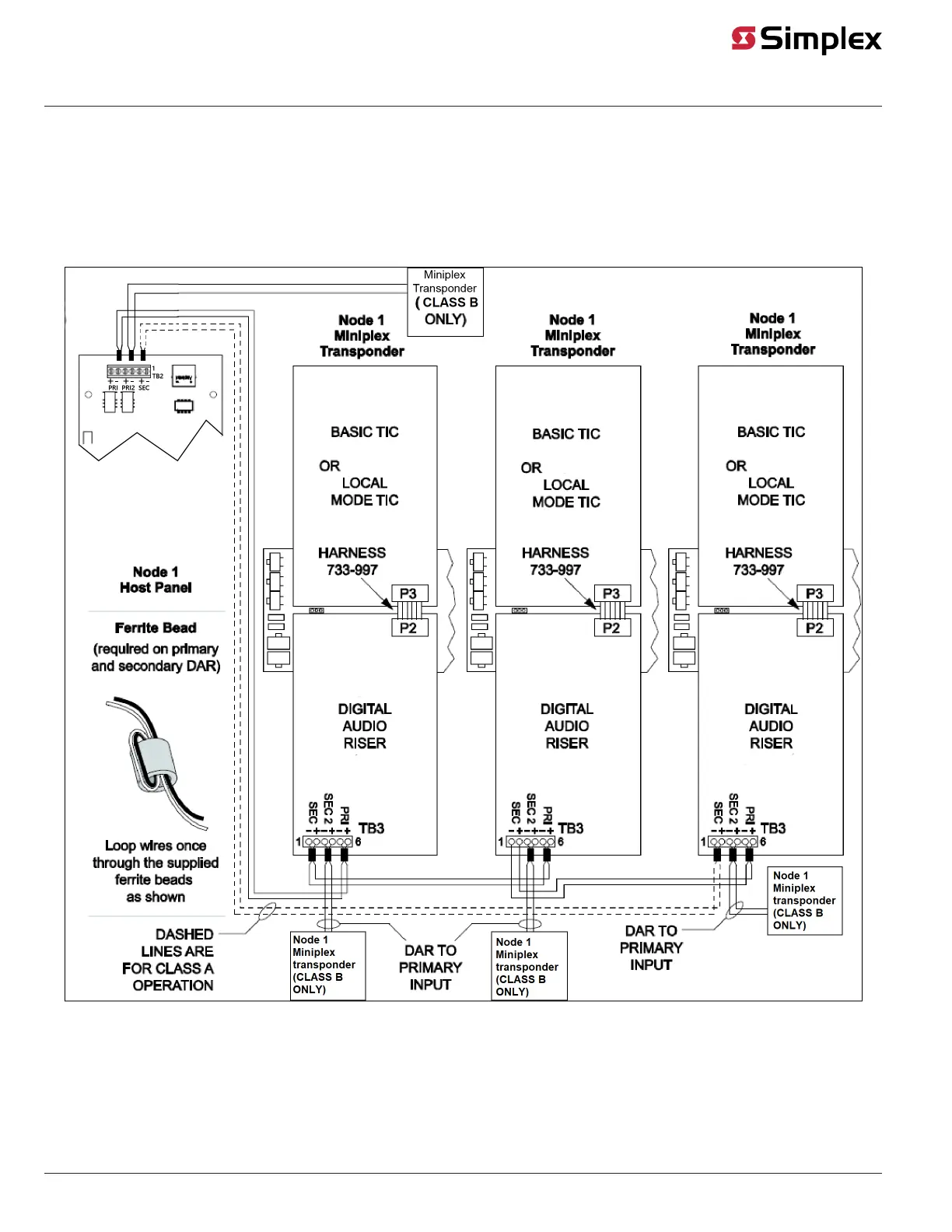

Figure 13 is an illustration of class A and class B digital wiring from the 4100-1411 ES Net Digital Audio Controller to the digital audio risers connected
to TICs.
Figure 13: Digital audio interconnections with the 4100-1411 Digital Audio Controller*
Note: *The following parts are illustrated in Figure 13:
• 4100-1411 ES Net ES Net Digital Audio Controller (566-1291)
• 4100-0620 Basic TIC or 4100-0625 Local Mode TIC
• 4100-0622 Digital Audio Riser (566-407, 566-1000)
page 16 579-1408 Rev. B
ES Net Digital Audio Controller Installation Instructions
