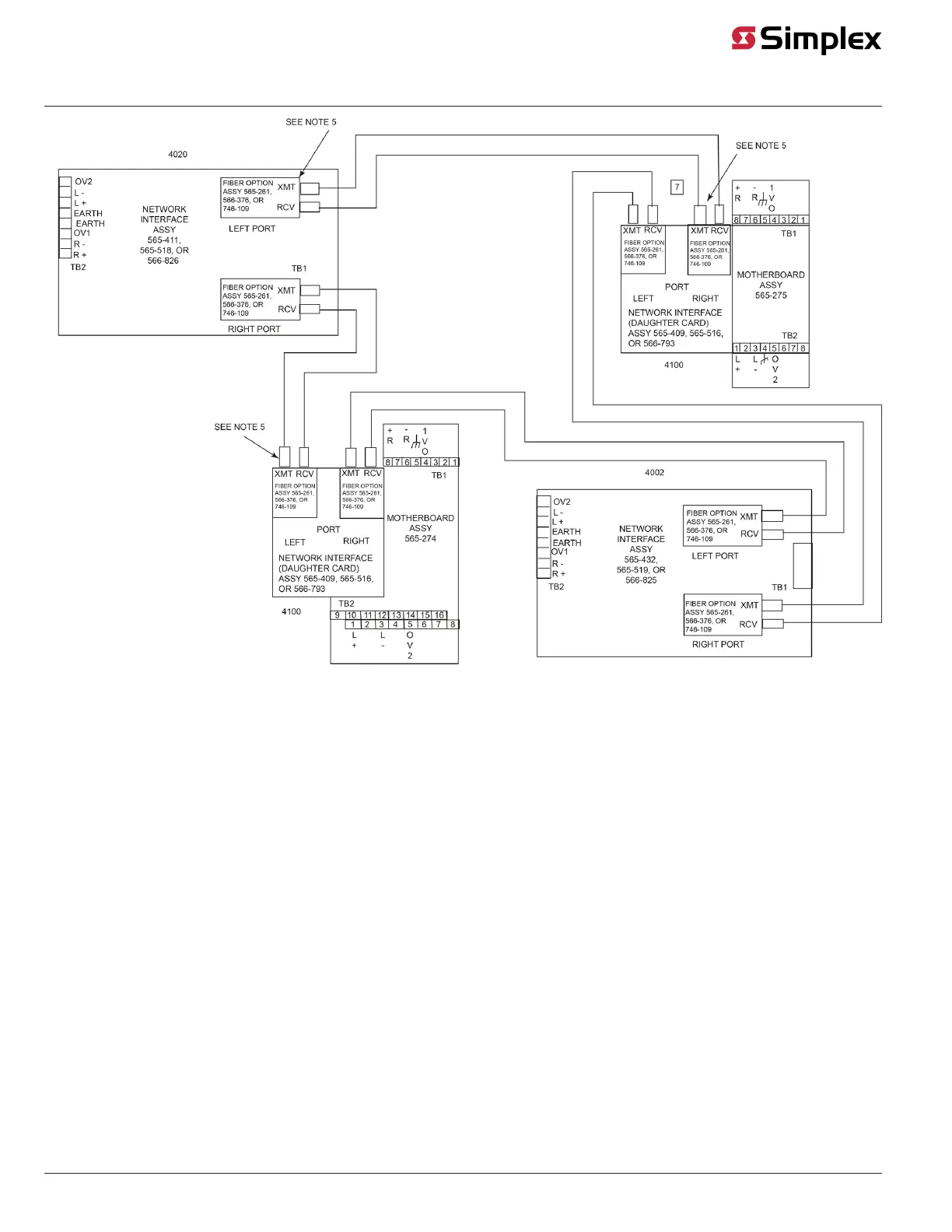

Figure 26: Fiber-optic, Class X wiring (0746-109 only)
Notes:
1. Refer to general wiring precautions in this document. For specific information about fiber optic wiring, refer to the 900-143 Fiber Tutorial.
2. The available communications distance is determined by the properties of the specific fiber cable used and the available power budget. The
maximum distance between nodes is determined by the total loss from the transmitter to the associated receiver, for example, fiber loss,
connector loss, splice loss and safety margin. or the maximum distance listed, whichever is smaller. See Table 1 for allowed losses.
3. When using fiber-optic cable, use ST connectors with long strain relief boots.
4. On assembly 565-274, JW1 and JW2 must be installed. Jumper plugs must not be installed on P5-P8.
5. Cable clamps supplied with 748-531 are used to secure the fiber cable.
Wired media and fiber-optic Class X wiring (0746-109 only)
page 26 579-182 Rev. V
4100/4120-6014, 4100-6078 NICs and 4100/4120-Series Media Modules Installation Instruction
