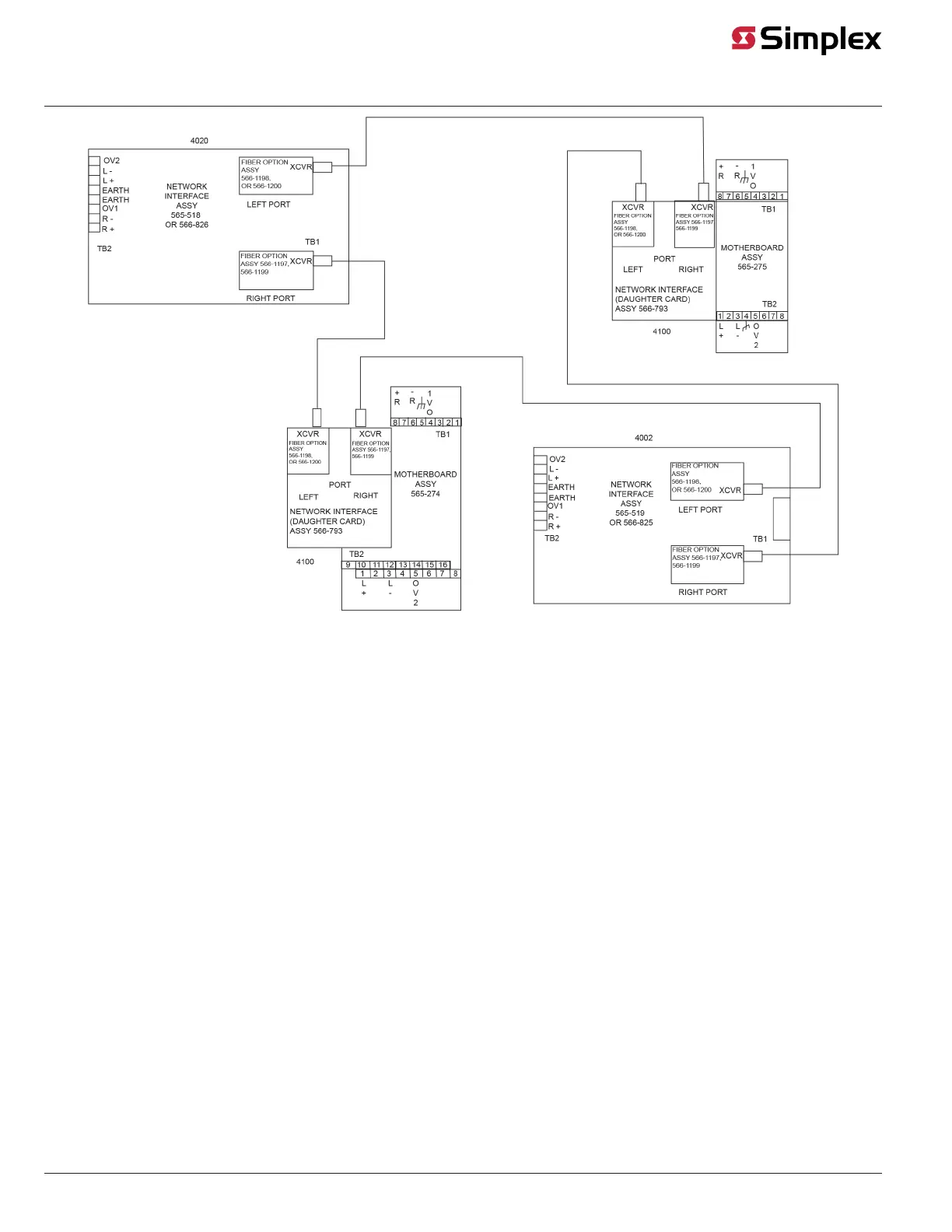

Figure 28: Duplex fiber-optic Class X wiring (566-1197, 566-1198, 566-1199, or 566-1200 only)
Notes:
1. Refer to general wiring precautions in this document. For specific information about fiber-optic wiring, refer to the 900-143 Fiber Tutorial.
2. The available communications distance is determined by the properties of the specific fiber cable used and the available power budget. The
maximum distance between nodes is determined by the total loss from the transmitter to the associated receiver, for example, fiber loss,
connector loss, splice loss, and safety margin, or the maximum distance listed, whichever is smaller. See Table 1 for allowed losses.
3. Use SC connectors with long strain relief boots for the fiber-optic cable.
4. Use fiber media service kits 650-2013, 650-2014, 650-2015, and 650-2016 on retrofit jobs where fibers with ST connectors are already installed.
5. Use cable clamps supplied with 748-531, 650-2013, 650-2014, 650-2015, and 650-2016 to secure the fiber cable.
page 28 579-182 Rev. V
4100/4120-6014, 4100-6078 NICs and 4100/4120-Series Media Modules Installation Instruction
