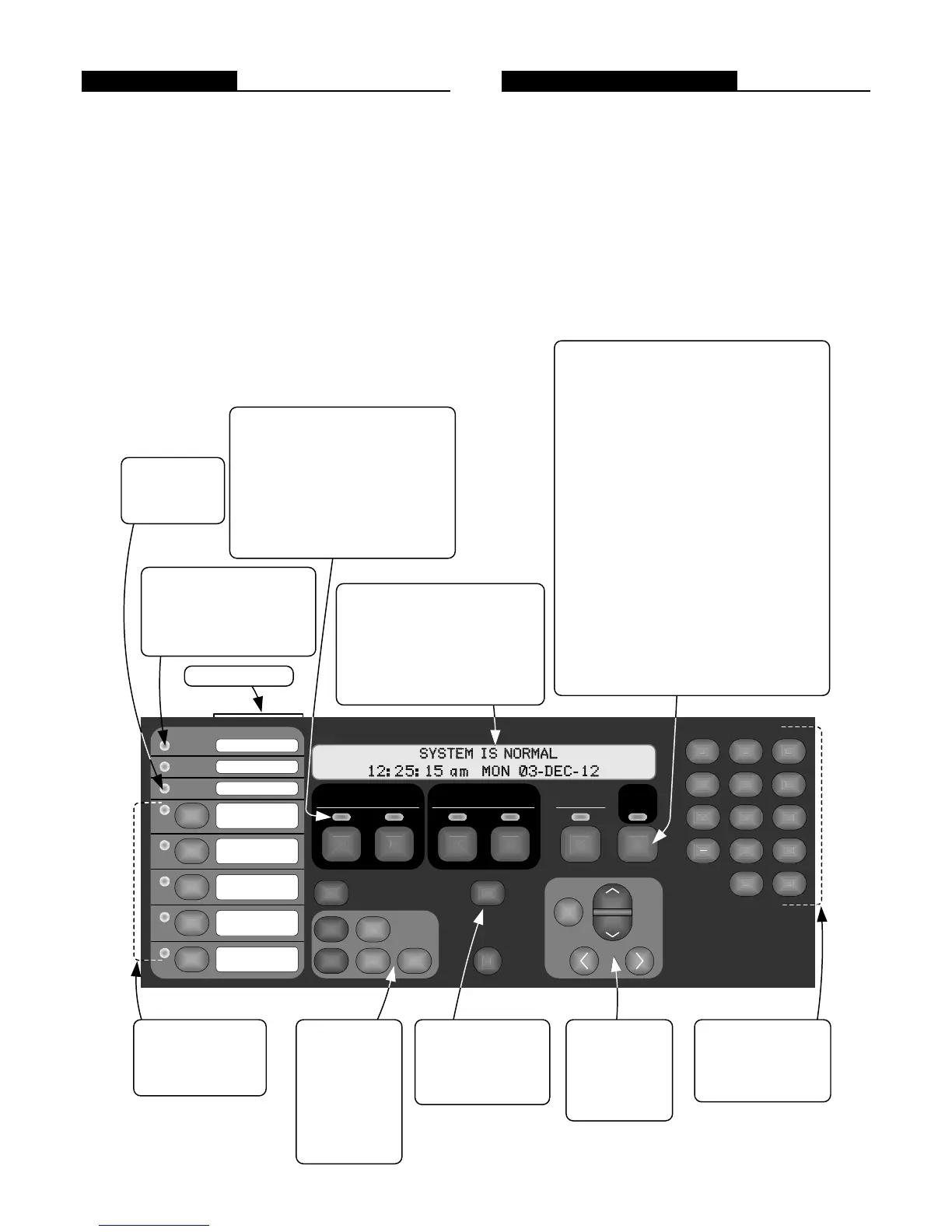

Operator Interface
Convenient Status Information. With the locking
door closed, the glass window allows viewing of the
display, status LEDs, and available operator switches.
Features include a two-line by 40-character, wide viewing
angle (super-twist) LCD with status LEDs and switches as
shown in the illustration below.
LED indicators describe the general category of activity
being displayed with the LCD providing more detail. For
the authorized user, unlocking the door provides access to
the control switches and allows further inquiry by
scrolling the display for additional detail.
Operator Interface Features
Convenient and extensive operator information is
provided using a logical, menu-driven display
Multiple automatic and manual diagnostics for
maintenance reduction
Alarm and Trouble History Logs (up to 1300 total
events) are available for viewing from the LCD, or
capable of being printed to a connected printer, or
downloaded to a service computer
Convenient PC programmer label editing
Password access control
A B C
AC Power
D E F G H I
J K L M N O P Q R
'SP' ( ) , 0 :
S T U V W X Y Z /
ALARMS
Fire Alarm Priority 2 Alarm
SYSTEM WARNINGS
Supervisory Trouble
Alarm Silenced
ZONE
1
SIG
2
AUX
3
FB
4
IO
5
IDNet
6
P
7
A
8
L
9
NET ADDR
0
DEL
Enter C/Exit
Fire Alarm
Ack
Priority 2
Ack
Supv
Ack
Trouble
Ack
Alarm
Silence
System
Reset
Event
Time
Enable
On
Arm
Disable
Off
Disarm
Auto
Lamp
Test
More
Info
Menu
Previous
Next
SIX SYSTEM STATUS INDICATOR LEDs
provide system status indications in addition
to LCD information, LEDs flash to indicate the
condition and then when acknowledged,
remain on until reset :
Fire Alarm & Priority 2 Alarm, red LED
Supervisory & Trouble, yellow LED
Alarm Silenced, yellow LED
AC Power, green LED (on for normal)
FIVE PROGRAMMABLE
FUNCTION SWITCHES,
each with a yellow LED
indicator
POINT STATUS
CONTROL KEYS:
Point Enable and
Disable
Force On or Arm
Force Off or Disarm
Return On/Off or
Arm/Disarm to Auto
Mode
NUMERIC KEYPAD for
point category and point
selection (alphabet
characters are not used at
this time)
ADDITIONAL FUNCTION
KEYS:
Event Time Request
More Information Request
Lamp Test
Elevator Recall
City Disconnect
Manual Evac
Ground Fault
Waterflow-West
Waterflow-East
Custom label insert
LCD NAVIGATION
CONTROL:
Menu selection
Vertical and
Horizontal position
selection buttons
FIRE ALARM ACK acknowledges a Fire Alarm
condition, logs the acknowledge, and silences the
operator panel and all annunciator tone-alerts
PRIORITY 2 ACK acknowledges a Priority 2 Alarm
condition, logs the acknowledge, and silences the
operator panel and all annunciator tone-alerts
SUPV ACK acknowledges system supervisory
conditions, logs the acknowledge, and silences the
operator panel and all annunciator tone-alerts
TROUBLE ACK acknowledges system troubles, logs
the acknowledge, and silences the operator panel and
all annunciator tone-alerts
ALARM SILENCE causes audible notification
appliances to be silenced (depending on panel
programming) typically after evacuation is complete and
while alarm source is being investigated; may allow
visible notification to continue (strobes still flashing)
SYSTEM RESET restores control panel to normal when
all alarmed inputs are returned to normal
2 X 40 LCD READOUT, LED backlighted
during normal conditions and abnormal
operating conditions, provides up to 40
characters for custom label information
FIRST ALARM DISPLAY: Operation can
be selected for maintained display of first
alarm until acknowledged
THREE PROGRAMMABLE LEDs
provide custom labeling, the top
two LEDs are selectable as red or
yellow, the bottom LED is
selectable as green or yellow
ULC SYSTEMS
require designating
a Ground Fault
indicator
Almost Dirty
Ground Fault
Latch
3 S4100-0031-21 12/2012
