ALARM
ACK
SUPV
ACK
TROUBLE
ACK
ALARM
SILENCE
SYSTEM
RESET
FIRE
ALARM
SYSTEM
SUPERVISORY
SYSTEM
TROUBLE
ALARM
SILENCED
AC
POWER

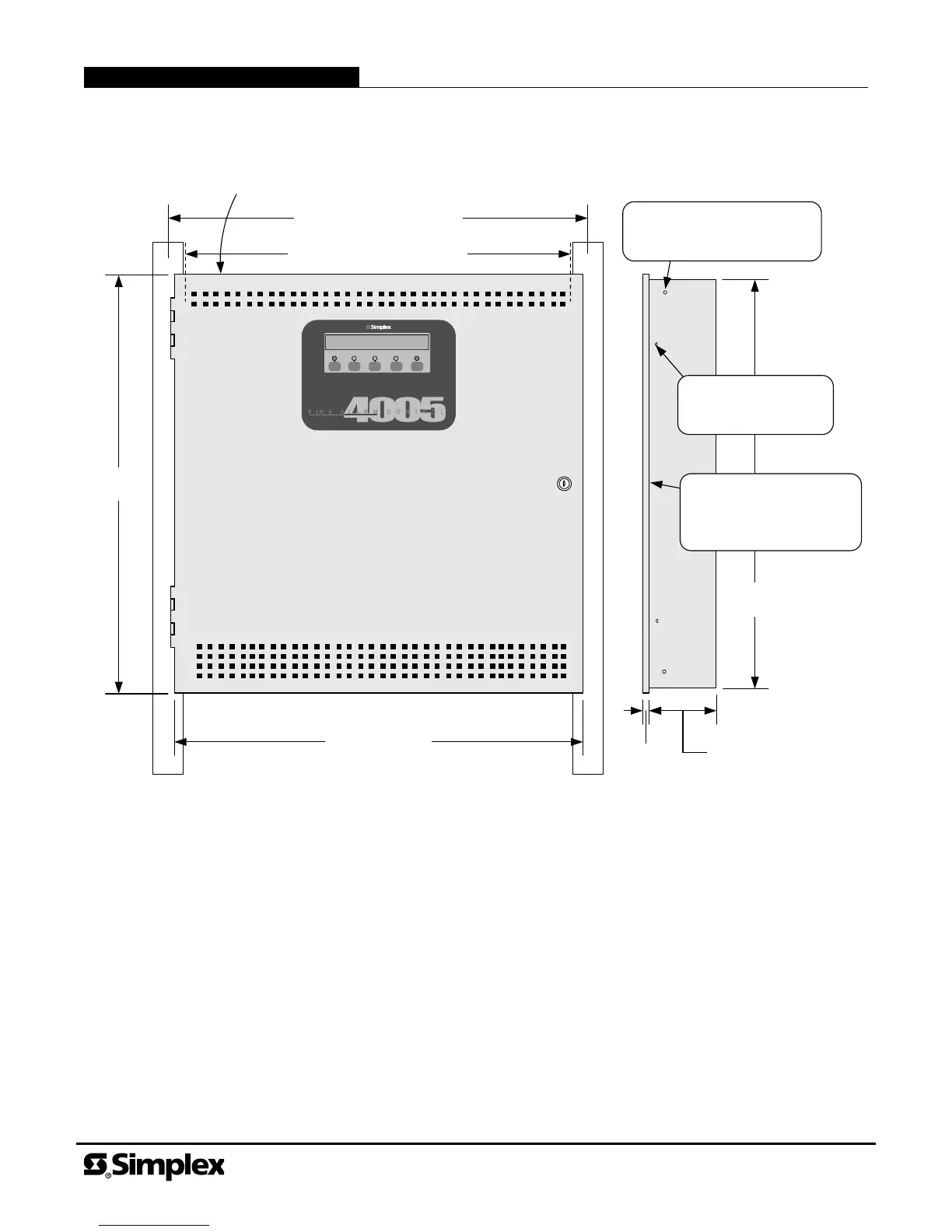

Reference, 24" stud centers
24"
(610 mm)
23-3/8" (594 mm)
23"
(584 mm)
3-7/8"
(98 mm)
1/2"
(13 mm)
Box width = 22-1/2" (572 mm)
Knockouts are provided for
nailing. Two on each side and
one each on top and bottom.
Conduit knockouts are provided on top and bottom
Box includes an 0.048 "
(1.2 mm) thick trim for semi-
flush mounting. Height and
width are same as door.
Drywall markers indicate
1/2" (13 mm) depth, two
on each side
Tyco is a registered trademark of Tyco International Services GmbH and is used under license. Simplex the Simplex logo, LifeAlarm, and WALKTEST are trademarks of Tyco
International Ltd. and its affiliates and are used under license. NFPA 70, NFPA 72, and National Fire Alarm Code are registered trademarks of the National Fire Protection
Association (NFPA).
Tyco Safety Products Westminster • Westminster, MA • 01441-0001 • USA S4005-0001-9 3/2009
www.tycosafetyproducts-usa-wm.com
© 2009 Tyco Safety Products Westminster. All rights reserved. All specifications and other information shown were current as of document revision date and are subject to change without notice.
Mounting Dimensions Reference
NOTE: A system ground must be provided for Earth Detection and transient protection devices. This connection
shall be made to an approved, dedicated Earth connection per NFPA 70, article 250, and NFPA 780.
