Simplicity 1693080 Service And Repair Manual

9 Drive Controls Service
Tuff Torq K-56 Models
9 - 6

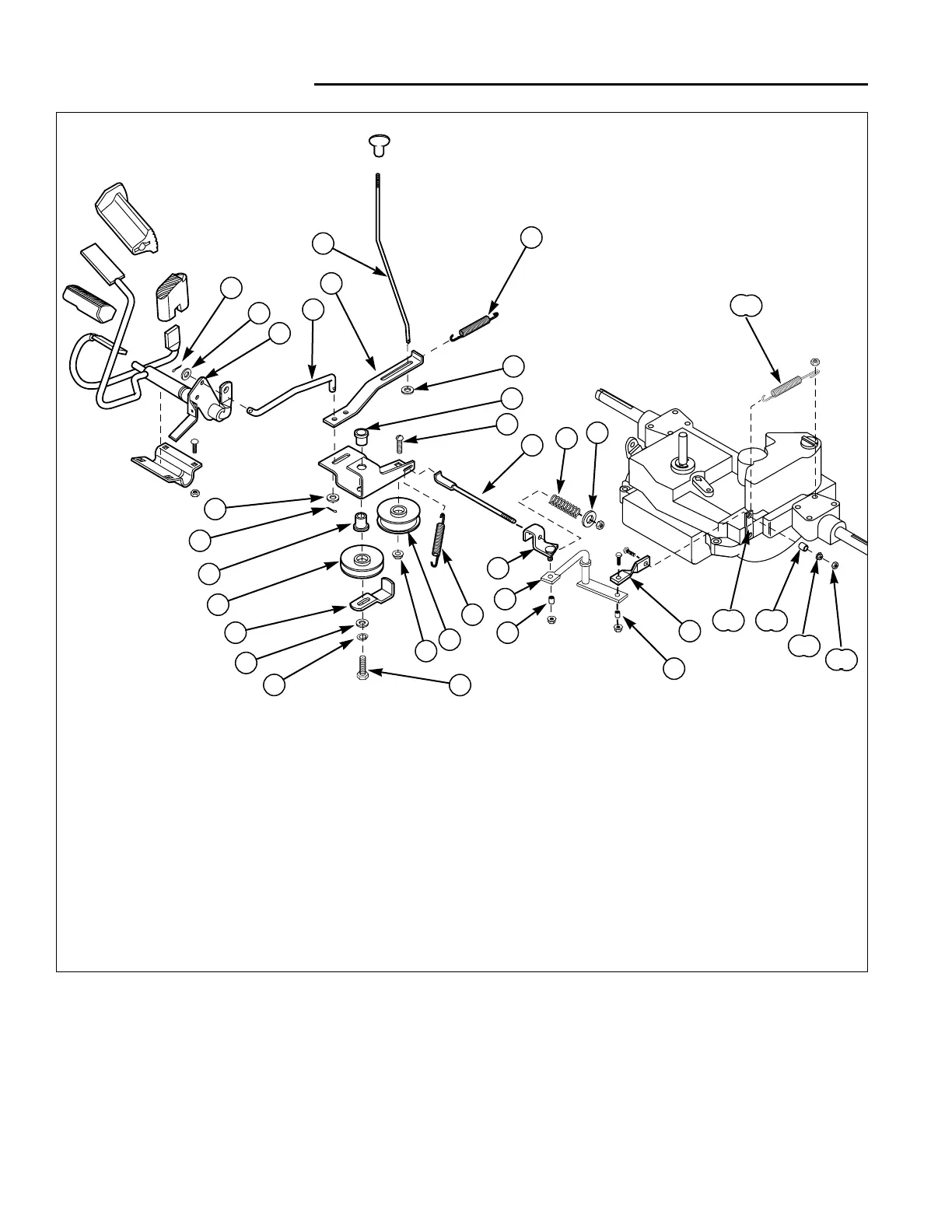

Figure 6. Brake Linkage & Idler Assembly
D
E
F
G
H
H
I
J
K
L
M
O
P
Q
R
N
S
T
U
V
W
Z
X
Y
C
B
A
B
A
A. Cotter Pin
B. Washer
C. Brake Pedal Arm
D. Front Brake Rod
E. Parking Brake Lever
F. Parking Brake Rod
G. Washer
H. Bushing
I. Carriage Bolt
J. Rear Brake Rod
K. Idler Bracket Spring
L. Back-Side Idler Pulley
M. Nut
N. Capscrew
O. V Idler Pulley
P. Belt Guide
Q. Washer
R. Lockwasher
S. Brake Spring
T. Washer
U. Brake Rod Guide
V. Brake Arm
W. Spacer
X. Spacer
Y. Brake Link
Z. Brake Return Spring
AA. Transmission Brake Arm
BB. Spacer
CC. Flange Locknut
DD. Center-Lock Nut
EE. Brake Arm Return Spring
Brake Linkage -
Tuff Torq K-56 Models
