Simplicity 1693080 Service And Repair Manual

16 Mower Deck Service
44” Mower Deck - Housing, Arbors, & Blades
16 - 10
Torque nuts to 50-70 ft. lbs.
Apply gasket
former to this
surface if foam
gasket (Ref. 10)
is not used.
Torque screws to 50-70 ft. lbs.
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
17
18
19
20
21
23
24
14
25
26
27
28
29
30
31
32
33
34
35
32
31
27
25
3
37
22
36
39
38

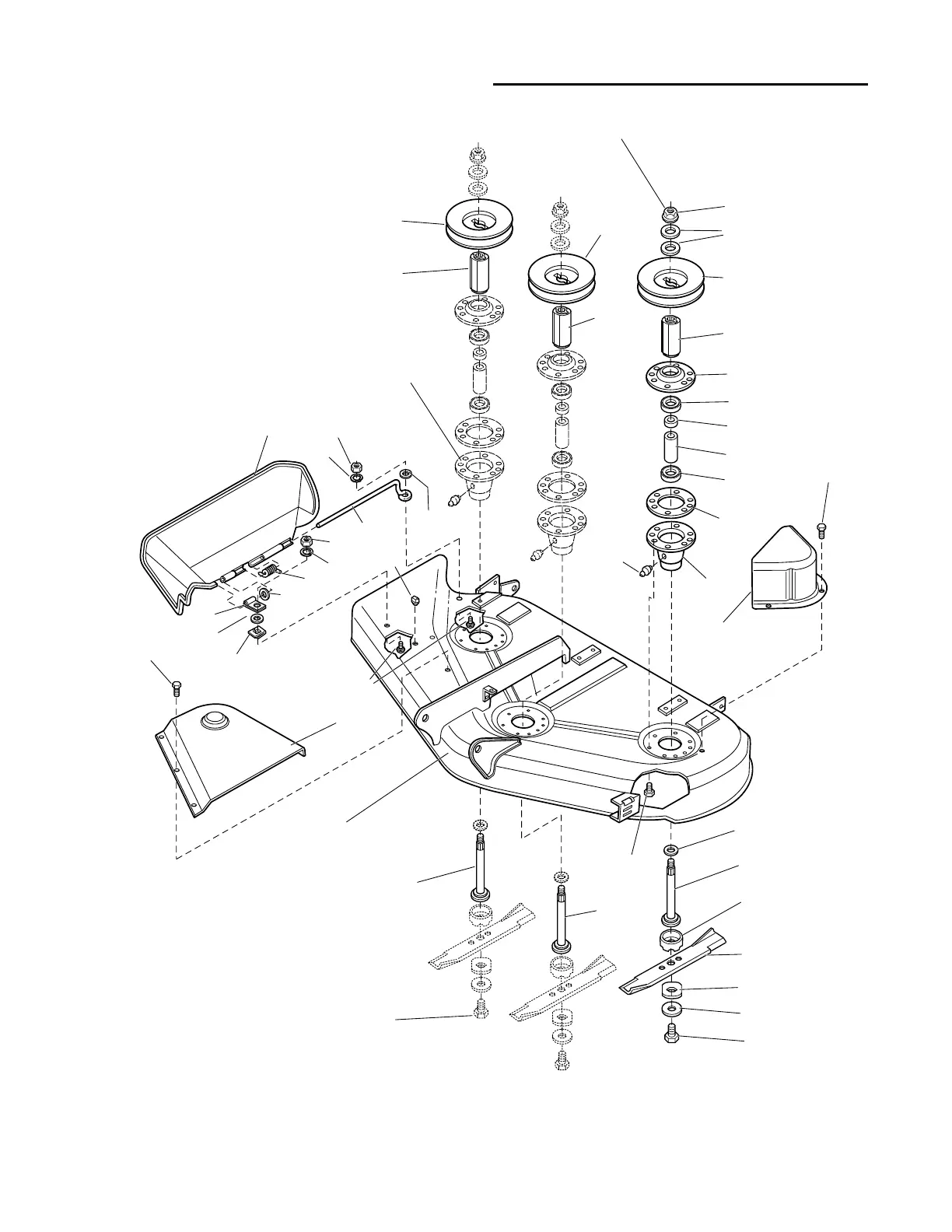

Figure 5. Housing, Arbors, & Blades
Torque to 45-55 Ft. Lbs.
