Simplicity 1693080 Service And Repair Manual

6 Common Service Procedures
Front Wheel Removal / Wheel Bearing Replacement
6 - 6
FRONT WHEELS & TIRES
Simplicity Models
AGCO-Allis &
Massey Ferguson Models
6
2
1
1
3
174
5
7
8
9
7
1 2 Bearing
2 1 Rim
3 1 Grease Zerk
4 1 Valve
5 1 Tire
6 1 Washer
7 1 E-Ring
8 1 Hub Cap (Simplicity Models)
9 1 Hub Cap
(AGCO-Allis & Massey Ferguson Models)
Ref. Qty. Description Ref. Qty. Description

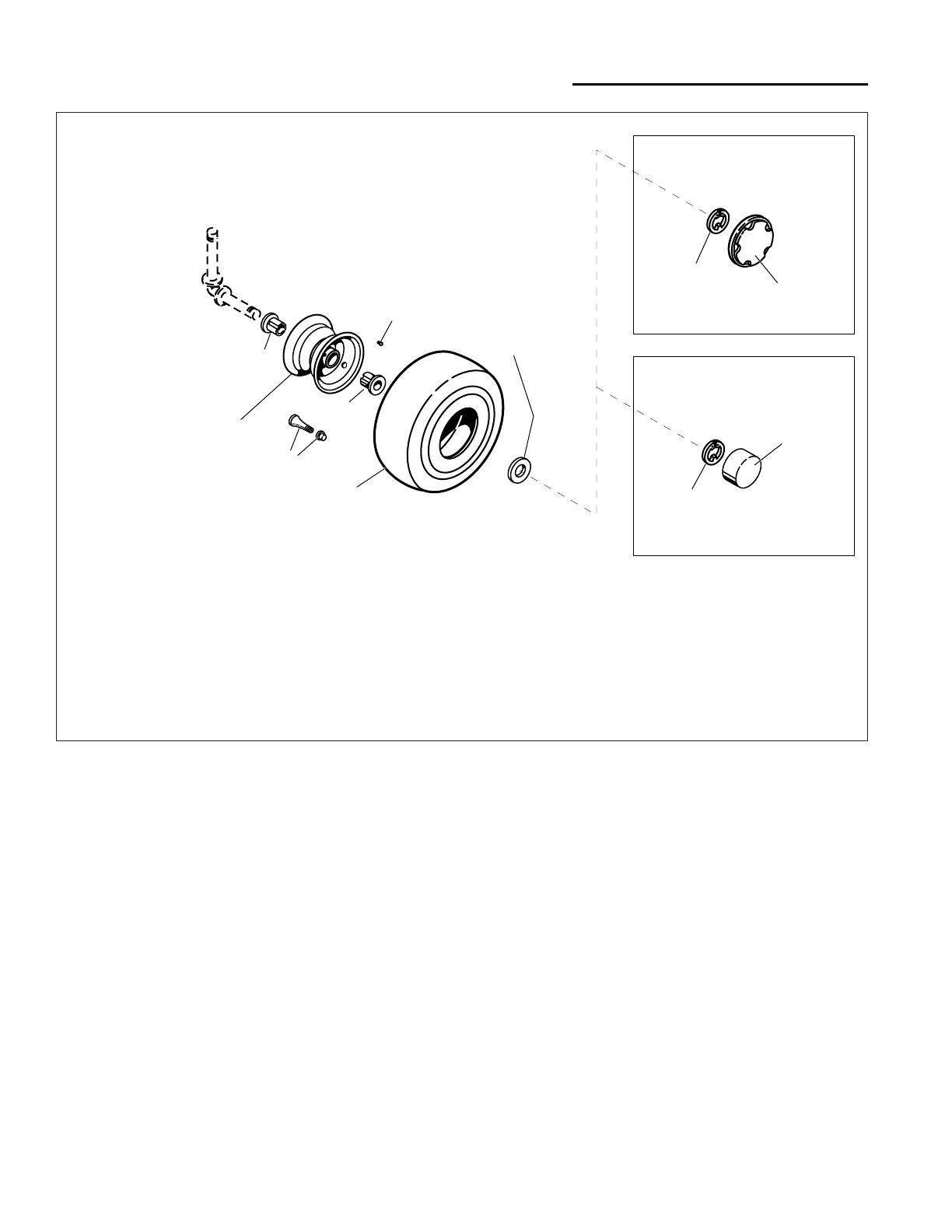

Figure 15. Front Wheel Assembly
FRONT WHEEL SERVICE
Front Wheel Removal & Installation
Refer to Figure 15.
1. Elevate the front of the rider (see ELEVATING
FRONT END FOR SAFE SERVICE, this section)
2. Remove the plastic hub cap (Ref. 8, 9). Remove the
e-ring (Ref. 7) using a screwdriver.
3. Remove the washer (Ref. 6).
4. Remove the wheel assembly (Ref. 2 & 5).
5. Install in reverse order of removal.
Wheel Bearing Replacement
Refer to Figure 15 for assembly.
1. Elevate the front of the rider (see ELEVATING
FRONT END FOR SAFE SERVICE, this section)
2. Remove the front wheel (see FRONT WHEEL
REMOVAL & INSTALLATION, this section).
3. Using a drift and hammer, tap the old bearings
(Ref. 1) out of the rim (Ref. 2).
4. Press the new bearing (Ref. 1) into the rim (Ref. 2)
using an arbor press.
5. Reinstall the front wheel (see FRONT WHEEL
REMOVAL & INSTALLATION, this section).
