Simplicity 1693080 Service And Repair Manual

11 - 11
11 Transmission Teardown
Hydro-Gear 0500 / 0650
Torque to
350-400
in. lbs.
Torque to
80-100 in. lbs.
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O

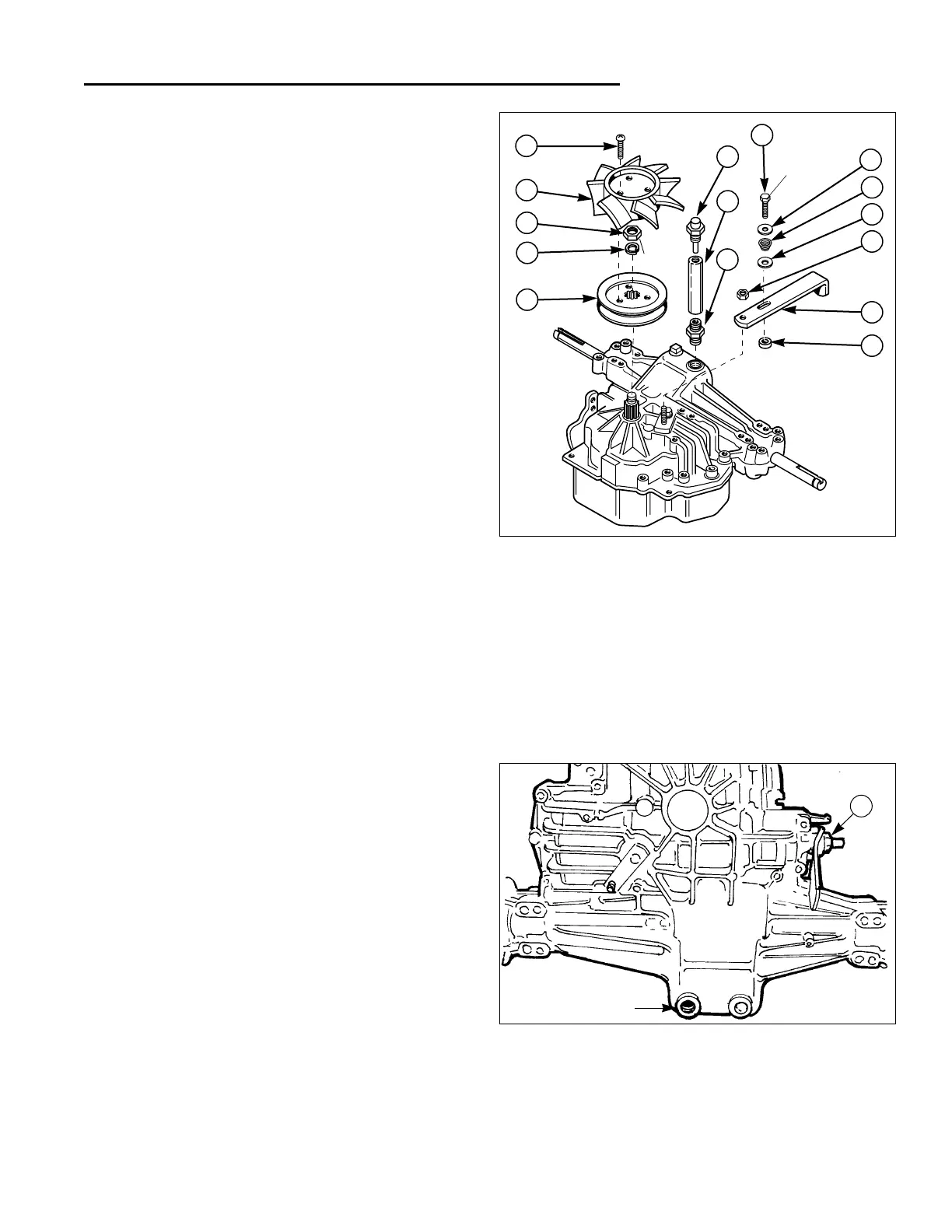

Figure 4. Remove External Components
A. Taptite Screw I. Vent Tube
B. Washer J. Vent Plug
C. Spring K. Input Pulley
D. Washer L. Lock Washer
E. Nut M. Jam Nut
F. Release Lever N. Fan
G. Spacer O. Taptite Screw
H. Tube Fitting
INPUT PULLEY
1. Remove the taptite screws (O, Figure 4) securing the
fan, and remove the fan (N).
2. Remove the jam nut (M) and lockwasher (L).
3. Remove the input pulley (K).
HYDRO RELEASE LEVER
1. Remove the taptite screw (A, Figure 4), washer (B),
spring (C), and washer (D).
2. Remove the nut (E) and remove the lever (F).
VENT TUBE
1. Remove vent plug (J, Figure 4). Clean the vent with
safety solvent.
2. Remove the tube fitting (H) from the transmission
casing.
Transmission Disassembly
1. If not already done, drain transaxle oil by removing
the breather hose assembly and positioning the
transaxle so the breather port is at lowest point of
transaxle to allow oil to drain thoroughly.
2. Remove the nut (A, Figure 5) securing the brake arm
and remove the brake arm.
Figure 5. Drain Oil From Breather Port
A. Brake Arm Nut
Breather Port
A
