11 Transmission Teardown
Hydro-Gear 0500 / 0650
11 - 16
All Models
33.Remove the motor thrust bearing assembly, swash-
plate kit and cradle bearings from the housing and
inspect for unusual wear or damage.
NOTE: Note the orientation of the variable swash plate
and reinstall in the same position.
34.Remove the slot guide block from the displacement
control shaft.
35.Remove the bypass actuator from the housing.

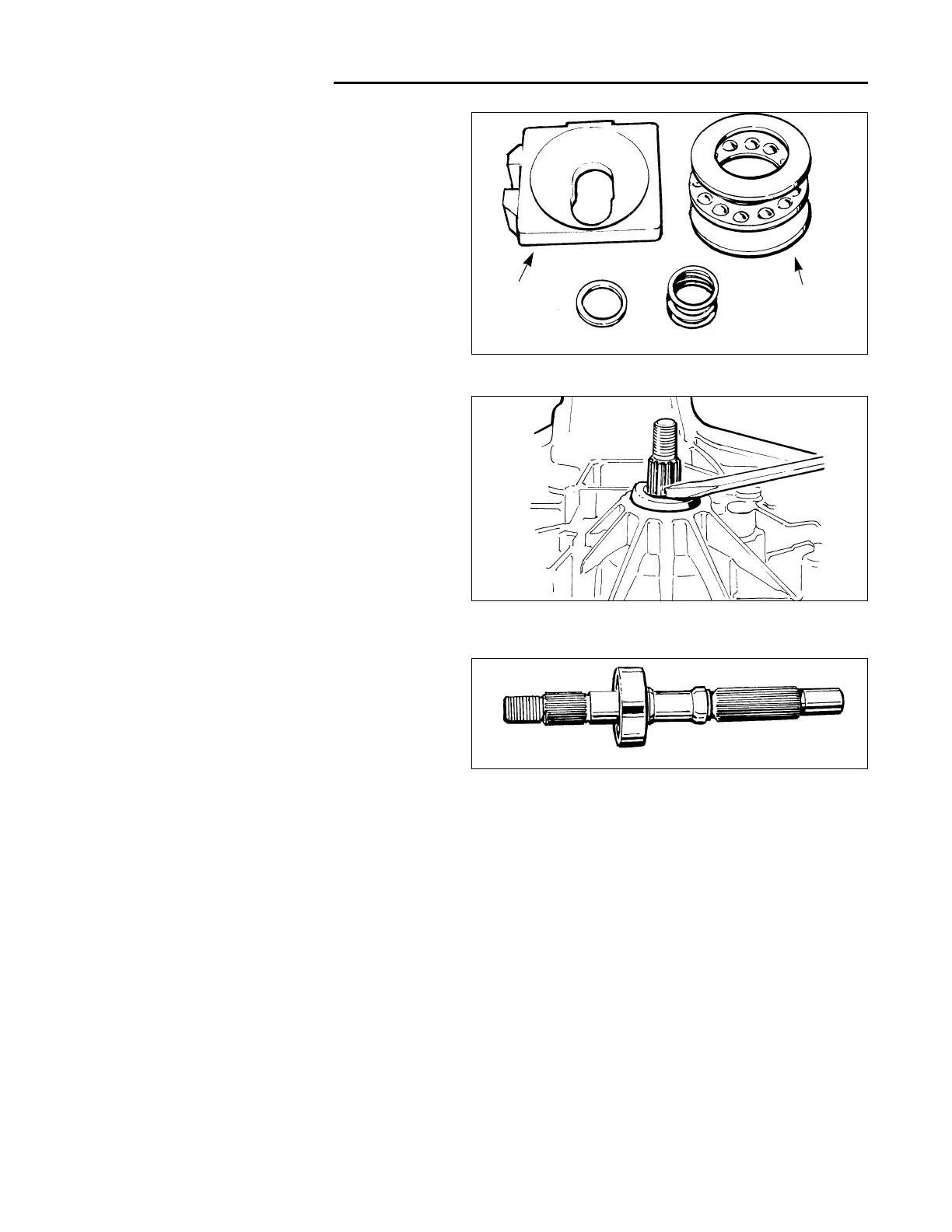

Figure 18. Swashplate & Thrust Bearing Assembly
Thrust
Bearing
Assm.
Variable
Swash
Plate
Washer
Spring
Figure 19. Remove Input Shaft Seal
36.Reposition the housing and remove the input shaft lip
seal from the housing bore. A hook type tool may be
used to pry the seal out. Care must be taken to avoid
damage to the housing bore, shaft sealing surface or
bearing. Once removed, the seal is not to be reused.
37.Remove the input shaft bearing retaining ring.
38.Remove the pump and input shaft assembly from the
transaxle housing.
39.Inspect the shaft and bearing for unusual wear or
damage.
40.Reposition the housing and remove the displacement
control shaft and lip seal.
41.Inspect the housing for damage.
Figure 20. Shaft and Bearing
