15 Miscellaneous Component Service
Seat Cover Removal & Installation
15 - 4
SEAT COVER
REMOVAL & INSTALLATION
Early Models
The seat cover is a friction fit and can be replaced by
pealing it off the seat pan and foam assembly. Be care-
ful not to damage the foam.

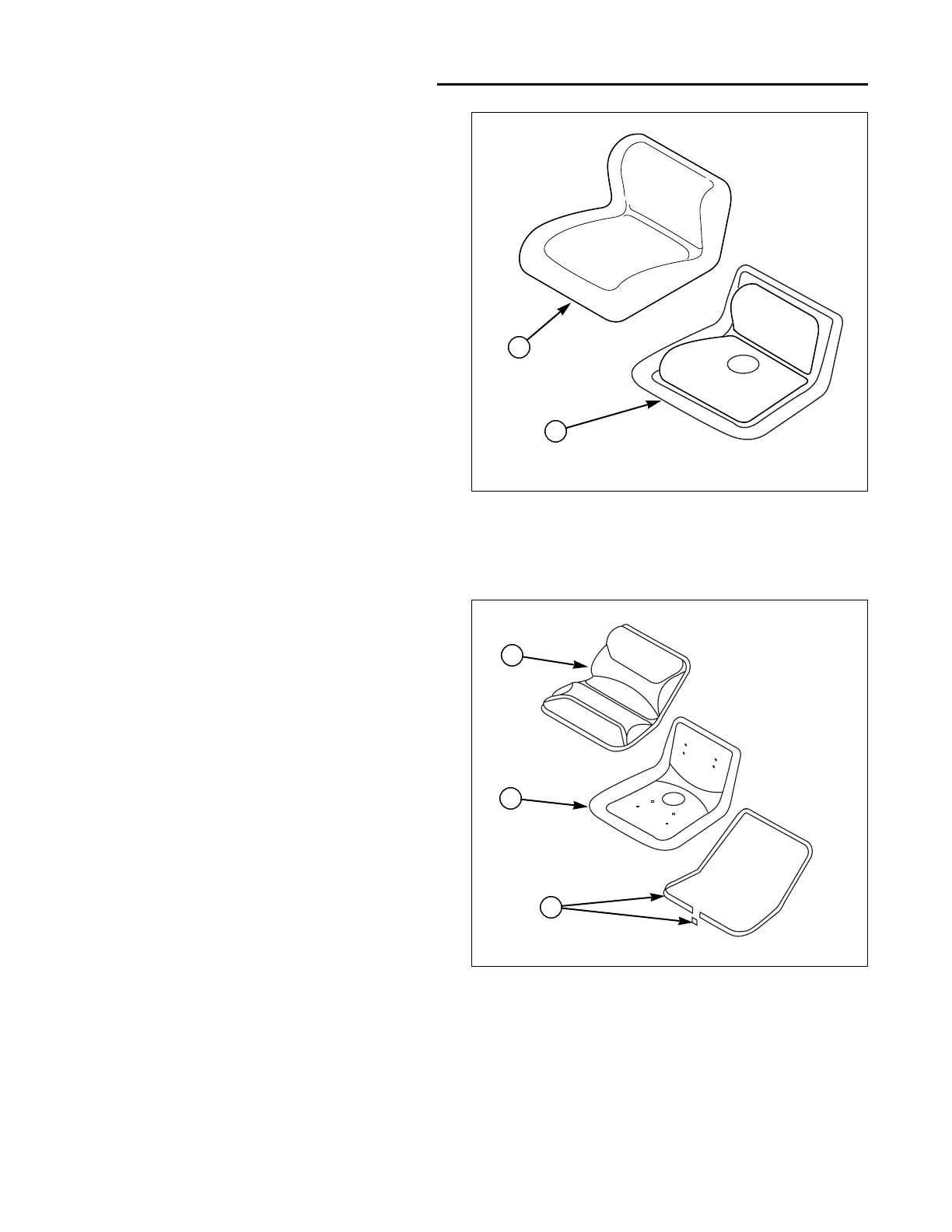

Figure 5. Seat Cover - Early Models
A. Seat Cover
B. Seat Pan and Foam Assembly
Figure 6. Seat Cover - Later Models
A. Seat Cover and Foam Assembly
B. Seat Pan
C. Plastic Edging & Clip
A
B
A
B
C
Later Models
The seat cover and foam assembly are held on the seat
pan by plastic edging and a metal clip. Once removed,
the cover, foam, plastic edging, and clip cannot be rein-
stalled. As a result, this seat is only serviced as a com-
plete assembly.
