Simplicity Broadmoor 5008 - Page 33

Part No.
108679
108134
108250
108181
108202
108257
108472
108201
108139
177005
918312
922133
108369
108371
108246
1651310
908127
916965
916950
108493
108372
917642
916965
916950
923428
108386
108497
917642
916965
916950
154369
156131
108505
1651376
1651375
922123
917397
918431
161080
917642
917356
108500
922125
916964
916622
108186
921959
917377
108508
108501
922586
916965
912958
Description _
ARBOR TUBE ASSY,
RING, Backing
ARBOR ASSY.
WASHER
BEARING, Ball
WASHER
WASHER
SPACER .
FLINGER
PULLEY
KEY, Woodruff, 3/16 x5/8
LOCKNUT, hex, 3/4-16
DRIVE ARBOR ASSY.
SPACER
PULLEY, Cross drive
HOUSING
CAPSCREW, hex, 3/8-16 x
LOCKWASHER, 3/8
NUT, Hex, 3/8-16
LEVER ASSY.
STUD
WASHER, Plain, 5/16
LOCKWASHER, 3/8
NUT, Hex, 3/8-16
LOCKNUT, hex, 3/8-16
PULLEY, Idler
SCREW, Special
WASHER, Plain, 5/16
LOCKWASHER, 3/8
NUT, Hex, 3/8-16
SPRING, Tension
STUD
BELT, "V"
COVER, Half housing, R.H.
COVER, half housing, L.H.
SCREW, Thread cutting
CAPSCREW, Hex, 5/16-
18 x 3/4
WASHER, Plain, 1/2
STOP, Belt
WASHER, Plain, 5/16
LOCKWASHER, 5/16
BAFFLE, Mower
SCREW, Thread cutting.
1/4-20 x 7/8
LOCKWASHER, 1/4
NUT, hex, 1/4:20
CLIP, Baffle
CAPSCREW, hex, 1/4-
20 x 5/8
WASHER, Plain, 1/4
BELT, "V"
BLADE
CAPSCREW, Hex, 3/8-
16 x 5/8
LOCKWASHER, 3/8
FITTING, Grease
MFG. NO. 1690023
36" ROTARY MOWER

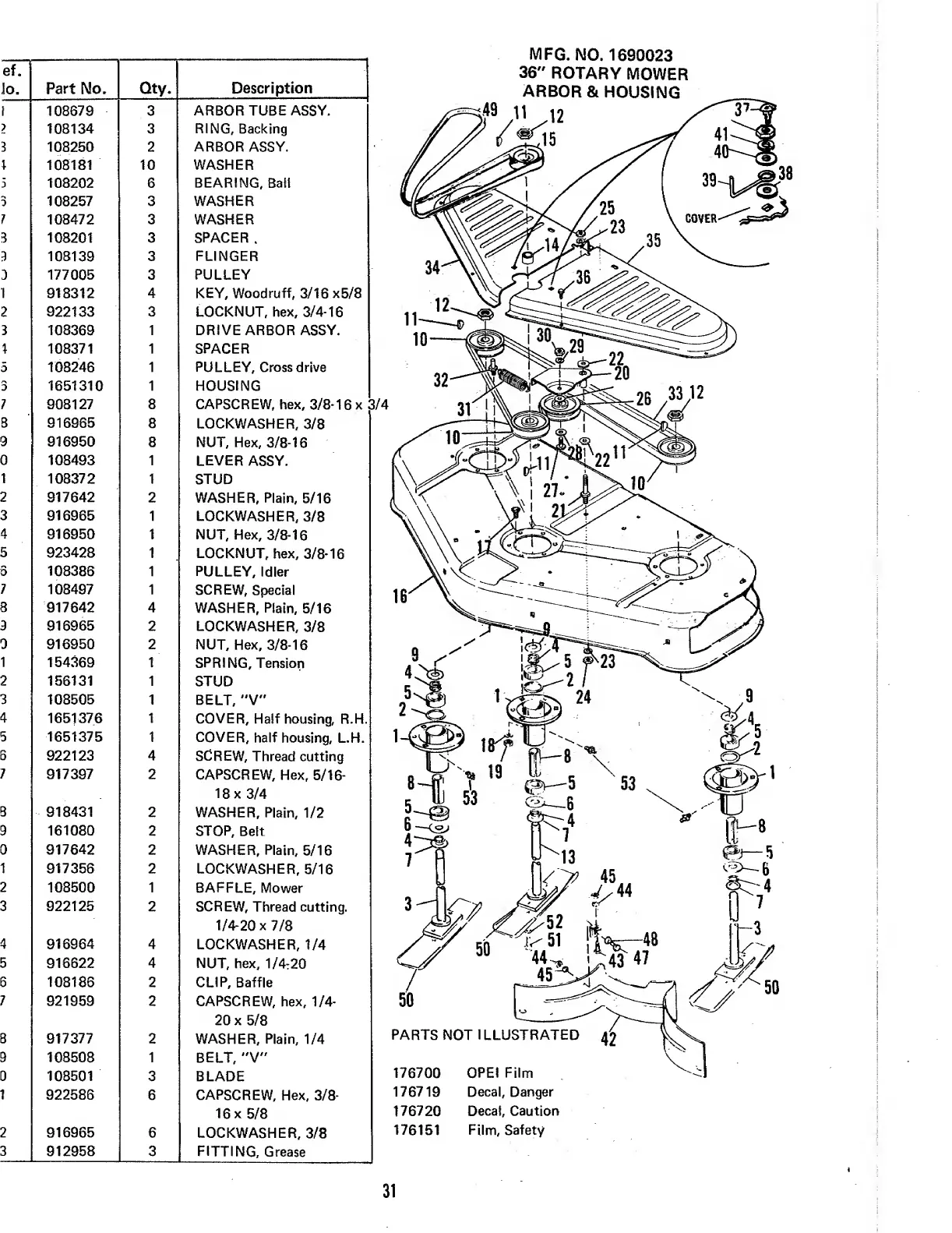

ARBOR & HOUSING
