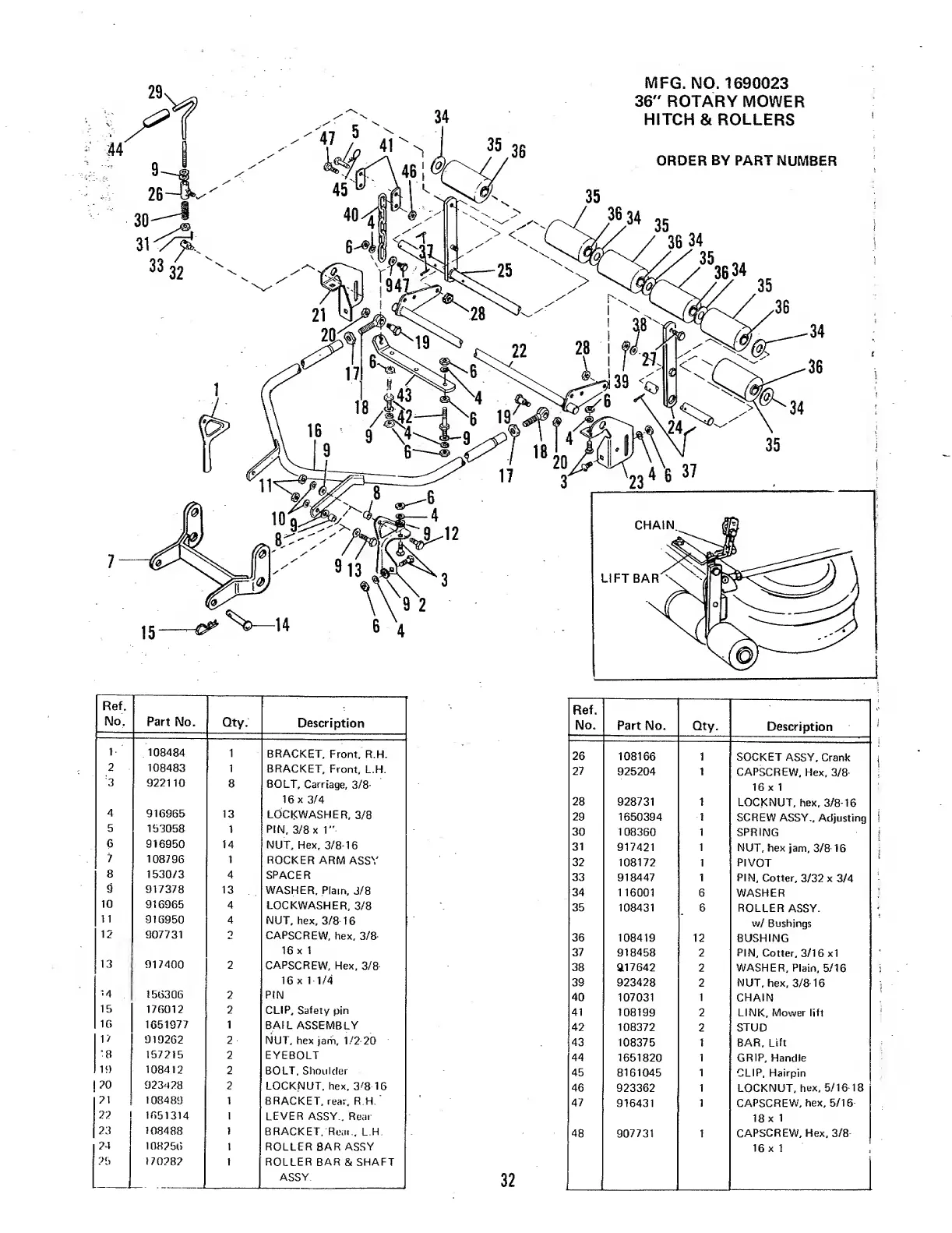

Simplicity Broadmoor 5008 - Page 34

Ref.
No
Part No.
Qty.
Description
1
108484
1
BRACKET, Front, R.H.
2
108483
1
BRACKET, Front, L.H.
3
922110
8
BOLT, Carriage, 3/8-
16 x 3/4
4
916965
13
LOCKWASHER, 3/8
5
153058
1
PIN, 3/8 x 1"
6
916950 14
NUT, Hex, 3/8-16
7
108796
1
ROCKER ARM ASSY
8
1530/3 4
SPACER
9
917378
13
WASHER, plain, 3/8
10
916965
4
LOCKWASHER, 3/8
1 1
916950 4
NUT, hex, 3/8-16
12
907731
2
CAPSCREW, hex, 3/8-
16 x 1
13
917400
2
CAPSCREW, Hex, 3/8-
16x1-1/4
■ 4
156306
2 PIN
15
176012
2
CLIP, Safety pin
16
1651977 1
BAIL ASSEMBLY
1 7
919262
2
NUT, hex jam, 1/2-20
‘8
157215
2
EYEBOLT
19
108412
2
BOLT, Shoulder
20
923428
2
LOCKNUT, hex, 3/8-16
21
108489
1
BRACKET, rear, R.H. '
22
1651314 1
LEVER ASSY.. Rear
23
108488
1
BRACKET, Rear . L.H.
24
108256
1
ROLLER BAR ASSY
25
170282 1
ROLLER BAR & SHAFT
ASSY
Ref.
No.
Part No.
Qty.
Description
26 108166
27 925204
28
29
30
31
32
33
34
35
928731
1650394
108360
917421
108172
918447
116001
108431
1 SOCKET ASSY, Crank
1 CAPSCREW, Hex, 3/8-
16 x 1
1 LOCKNUT, hex, 3/8-16
1 SCREW ASSY., Adjusting
1 SPRING
1 NUT, hex jam, 3/8-16
1 PIVOT
1 PIN, Cotter, 3/32 x 3/4
6 WASHER
6 ROLLER ASSY.
w/ Bushings
36
37
38
39
40
41
42
43
44
45
46
47
48
108419
918458
9.17642
923428
107031
108199
108372
108375
1651820
8161045
923362
916431
907731
12 BUSHING
2 PIN, Cotter, 3/16x1
2 WASHER, Plain, 5/16
2 NUT, hex, 3/8-16
1 CHAIN
2 LINK, Mower lift
2 STUD
1 BAR, Lift
1 GRIP, Handle
1 CLIP, Hairpin
1 LOCKNUT, hex, 5/16-18
1 CAPSCREW, hex, 5/16
18 x 1
1 CAPSCREW, Hex, 3/8
16x1
32
