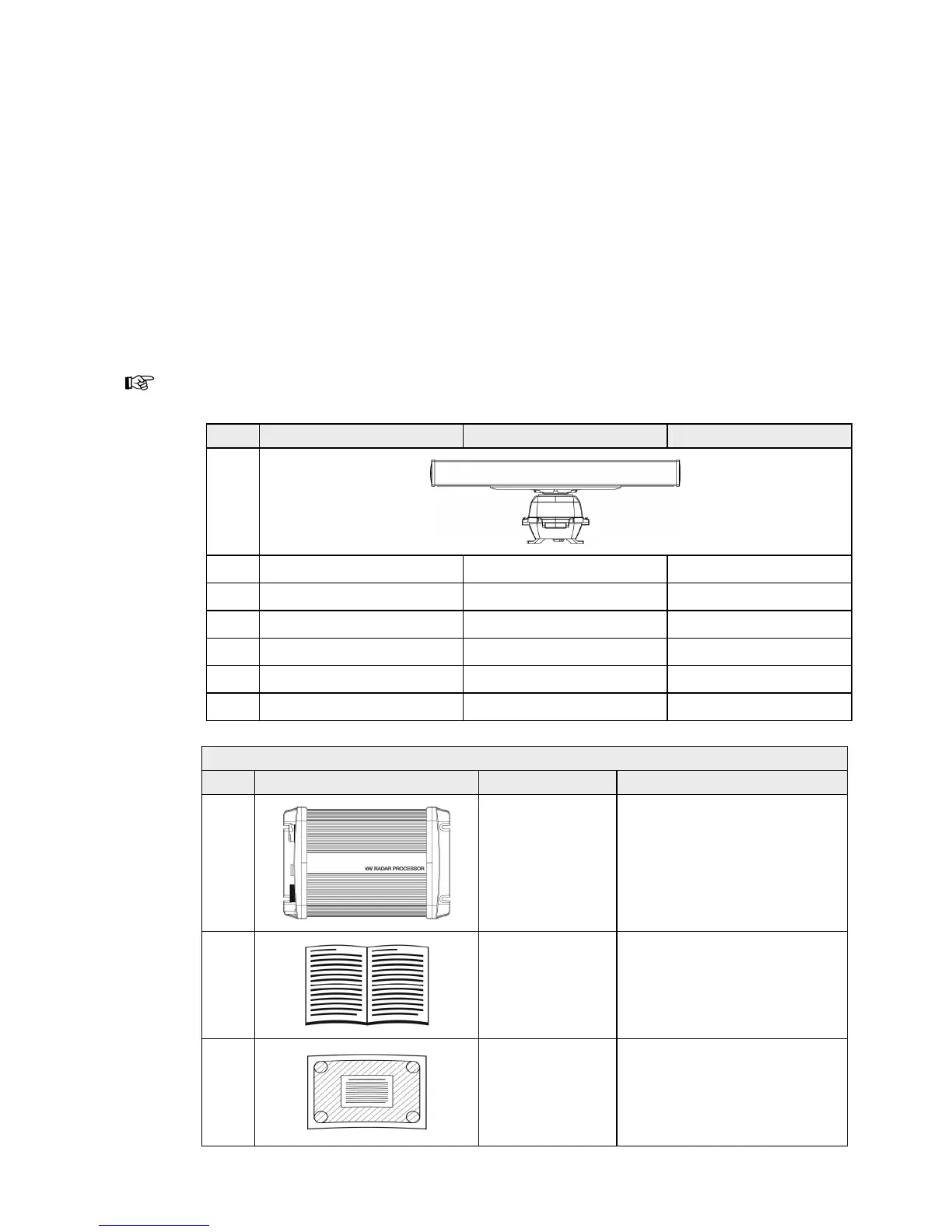

10 | Install the radar
3.1 Check the radar parts
The Navico radar system consists of a scanner, a radar processor, and associated cables. some
of which need to be ordered separately.
There are three main components of the radar system:
The open array radar scanner
The radar processor. The radar processor must match the power out put of the scanner e.g a
6 kW Scanner connects to a 6 kW processor box. Connection cables to attach to a display
head are not shipped with this item and they must be ordered separately. The cables
required will depend on the type of display head being used with the radar system. Later in
this manual, you will find information about connecting particular display heads.
Radar connection kit. This varies depending on display head that you are connecting to. Later
in this manual, you will find information about connecting particular display heads.
Unpack the boxes carefully and check the contents against the packing lists. If anything is
missing, contact your distributor.
Note: A parts list of what comes with scanner can be found inside the scanner packaging.
Qnt. Item Description Part No.
1
Simrad 6 kW scanner TX06s Scanner w/cable AA010026SIM
Simrad 10 kW scanner TX10s Scanner w/cable AA010027SIM
Simrad 25 kW scanner TX25s Scanner w/cable AA010028SIM
Northstar 6 kW scanner NS004792 Scanner w/cable AA010026NOR
Northstar 10 kW scanner NS004793 Scanner w/cable AA010027NOR
Northstar 25 kW scanner NS004794 Scanner w/cable AA010028NOR
Radar processor standard components
Qnt. Item Description Part No.
1
6 kW processor
10 kW processor
25 kW processor
AA010014
AA010015
AA010016
1
This manual MN000785
1
Installation template
LA000276B-G
