Connect Simrad GB40 or Northstar 8000i | 37
5.2 Simrad GB40 using a SimNet heading sensor

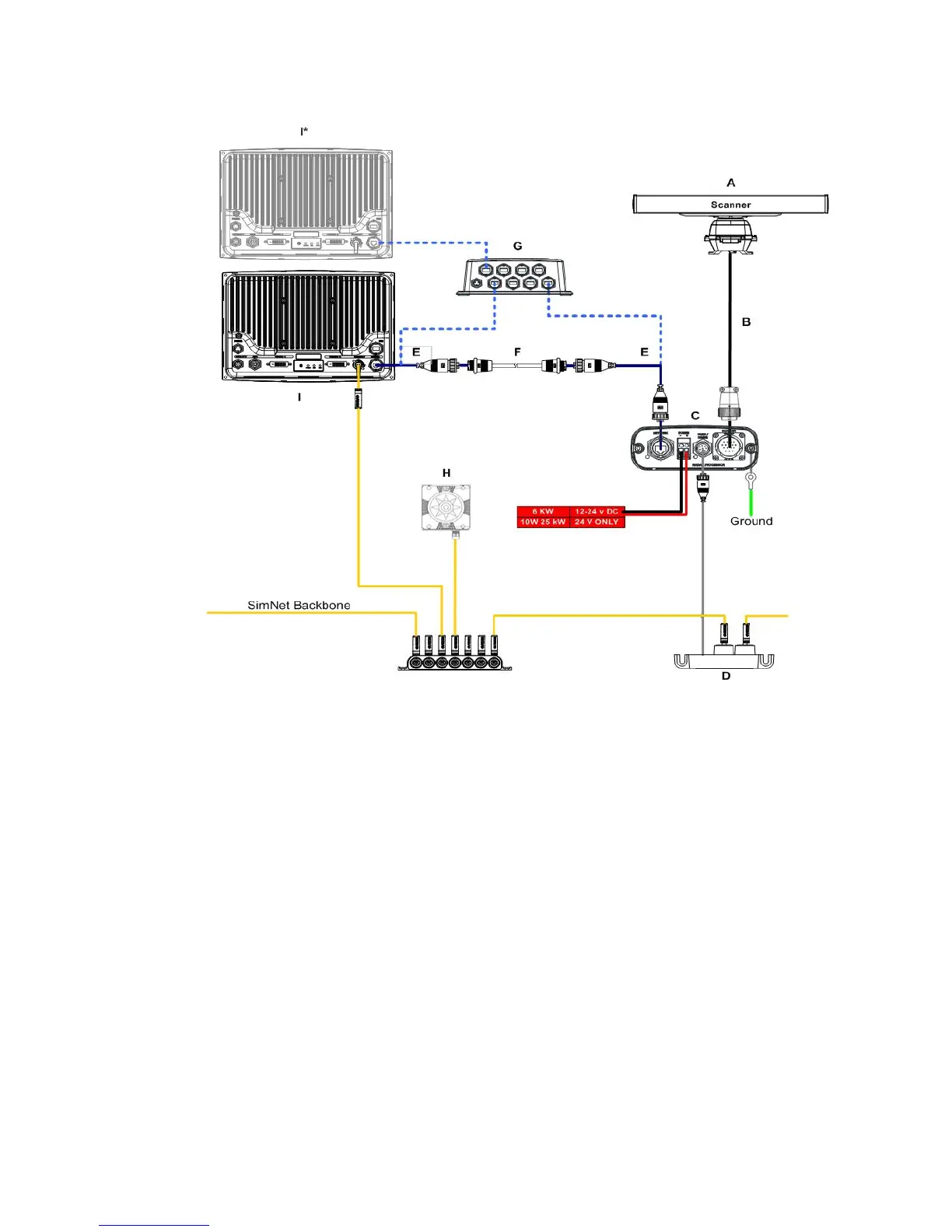

The diagram below details how to connect the Navico radar to a GB40 system using an Ethernet
crossover cable (F), or using the 8 port ethernet linker (G). High speed heading is via SimNet
(D).
For key
information (page 39)
