Wiring the radar system | 29

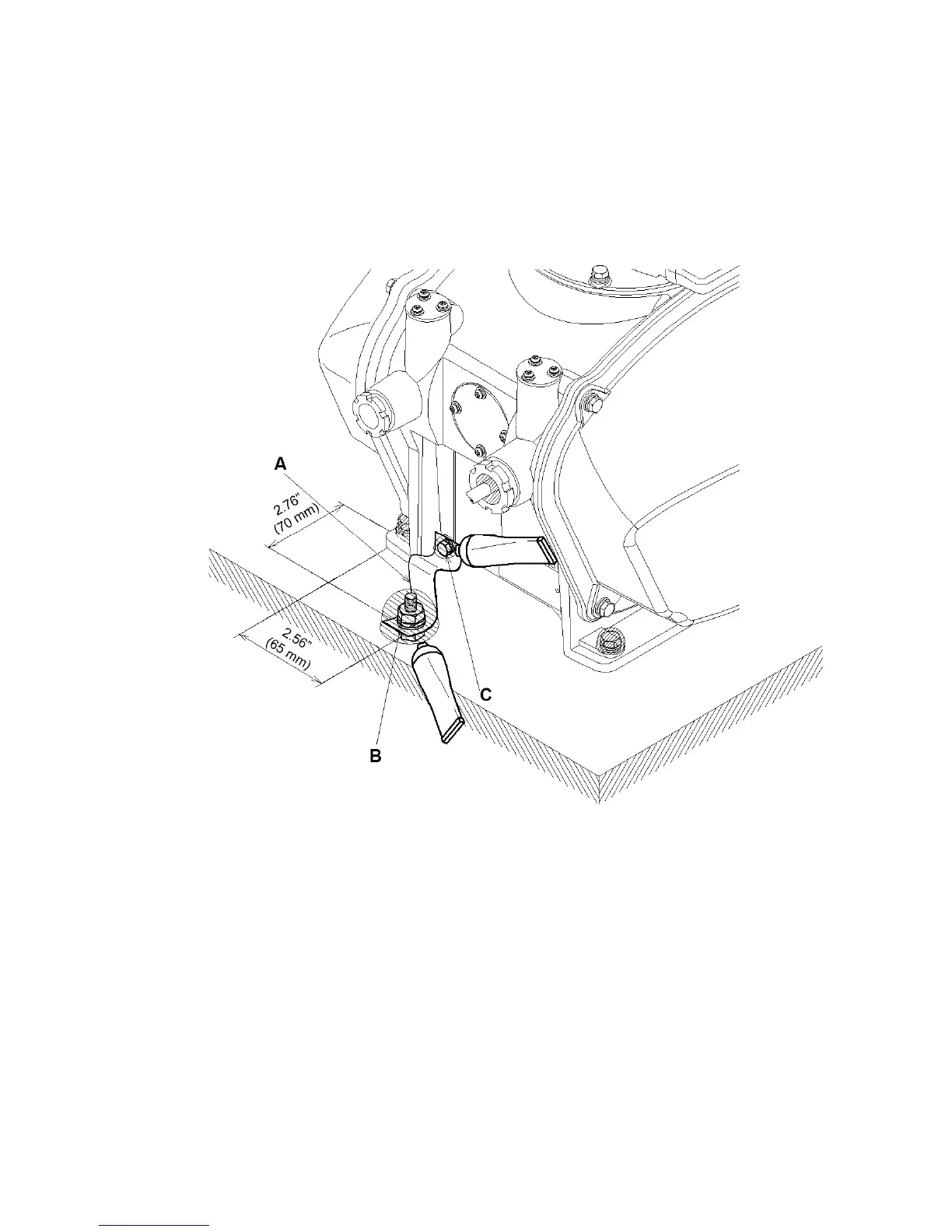

4.6 Earth the 25 kW scanner
The Earth bolt MUST be connected to the vessel's ground system.
• Connect the copper Earth strap (A) to the scanner with a hexagonal bolt (C).
• Connect the other end of copper Earth strap to the mounting location, using the special
hexagonal Earth bolt (B), then apply silicon sealant around both the bolts.
