22 | Wiring the radar system
4.3 Radar scanner 10 kW: Connect the interconnection cable
(AA010093/AA010094) to the scanner
• Unscrew and lift up the hinged cover of the scanner.

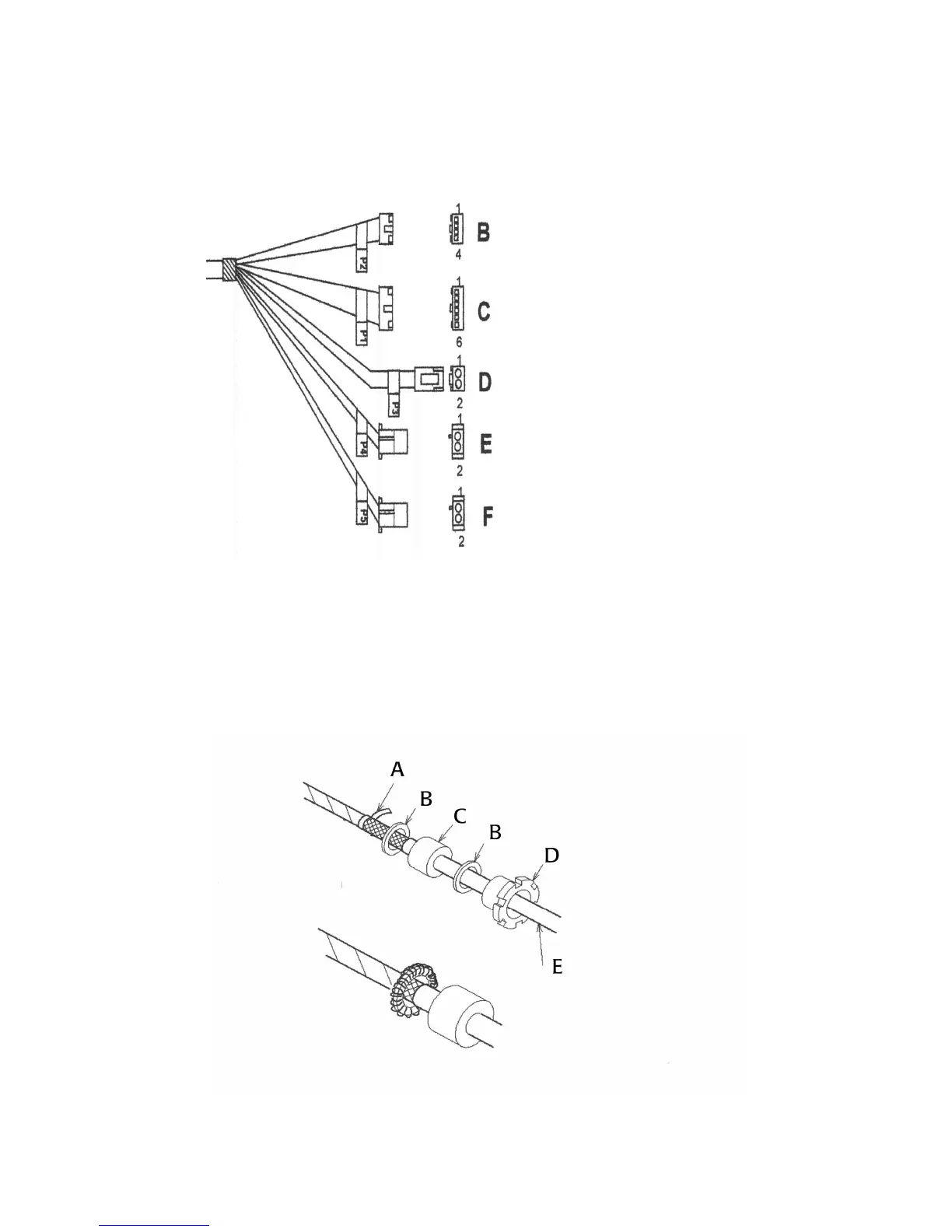

• Identify the connectors B, C, D, E, and F at the end of the interconnection cable.
• Push the cable gland (D), a plain washer (B), the gasket (C) and another plain washer (B)
over the connector end of the interconnection cable (E) in the order shown. Push the
interconnection cable through the cable inlet into the scanner.
• Tear away the tape (A) then unravel the shield mesh and wrap this around the washer as
shown.
• Check that the interconnection cable is positioned so that you can easily connect it to the
J connectors on the inside of the scanner lid, as shown.
