Wiring the radar system | 21

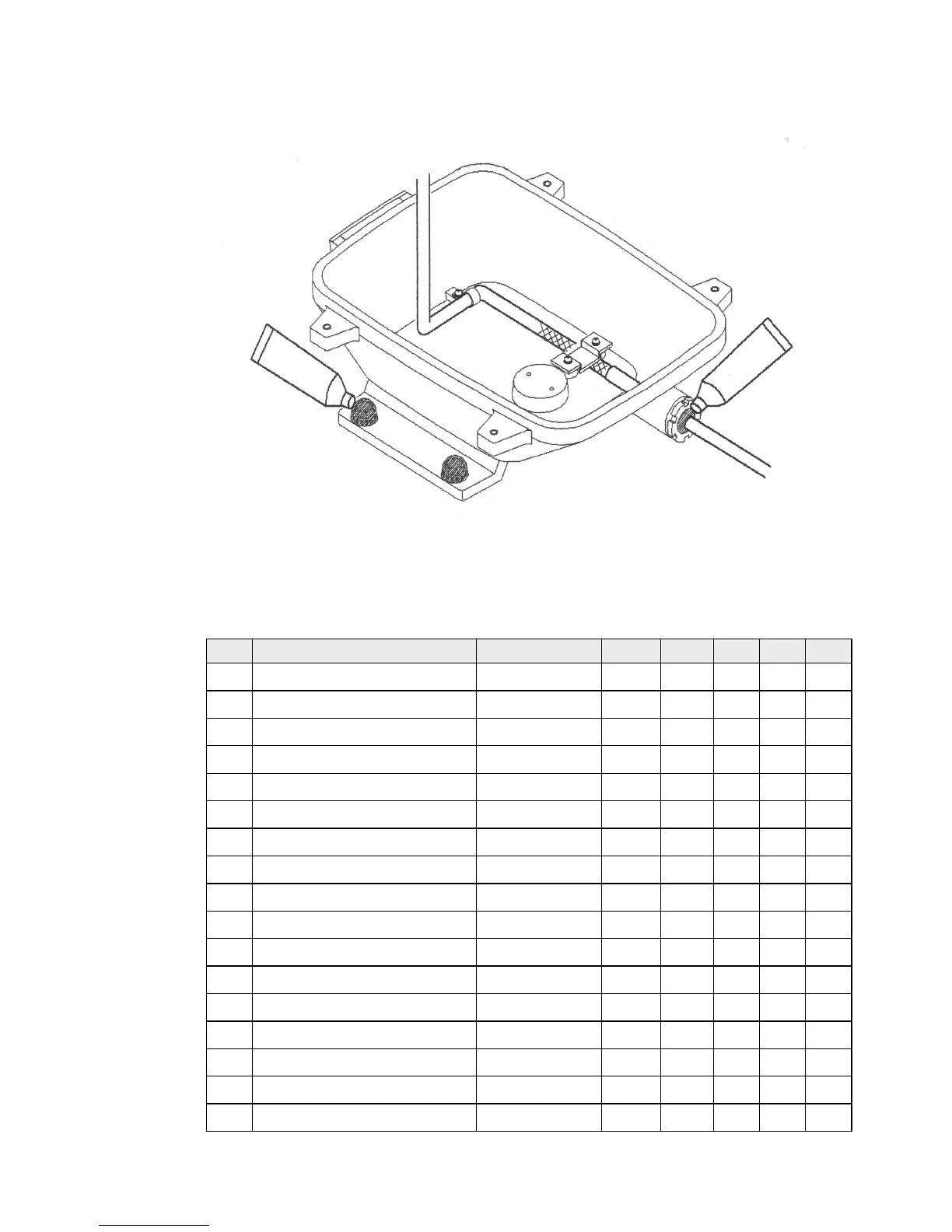

• Close the scanner lid and secure it with the screws.
• The wiring details for the connector ends (B, C, D, E, and F) are shown:
Pin Color/Name AWG size B C D E F
1 Blue / Gray (thick) #16
1
2 Purple / Brown (thick) #16
1
3 Red / Green (thick) #16
2
4 Yellow /Pink (thick) #16
2
5 Drain wire (coax line) #24
2
6 No connection
7 No connection
8 No connection
9 Yellow (thin) #24 twist pair
3
10 Axis line #24
1
11 No connection
12 Green (thin) #24
5
13 White (thin) #24 twist pair
4
14 Drain wire #24
2
15 Shield line #24
1
16 Orange (medium) #18
3
Shell Braid shield
X
