20 | Wiring the radar system
-

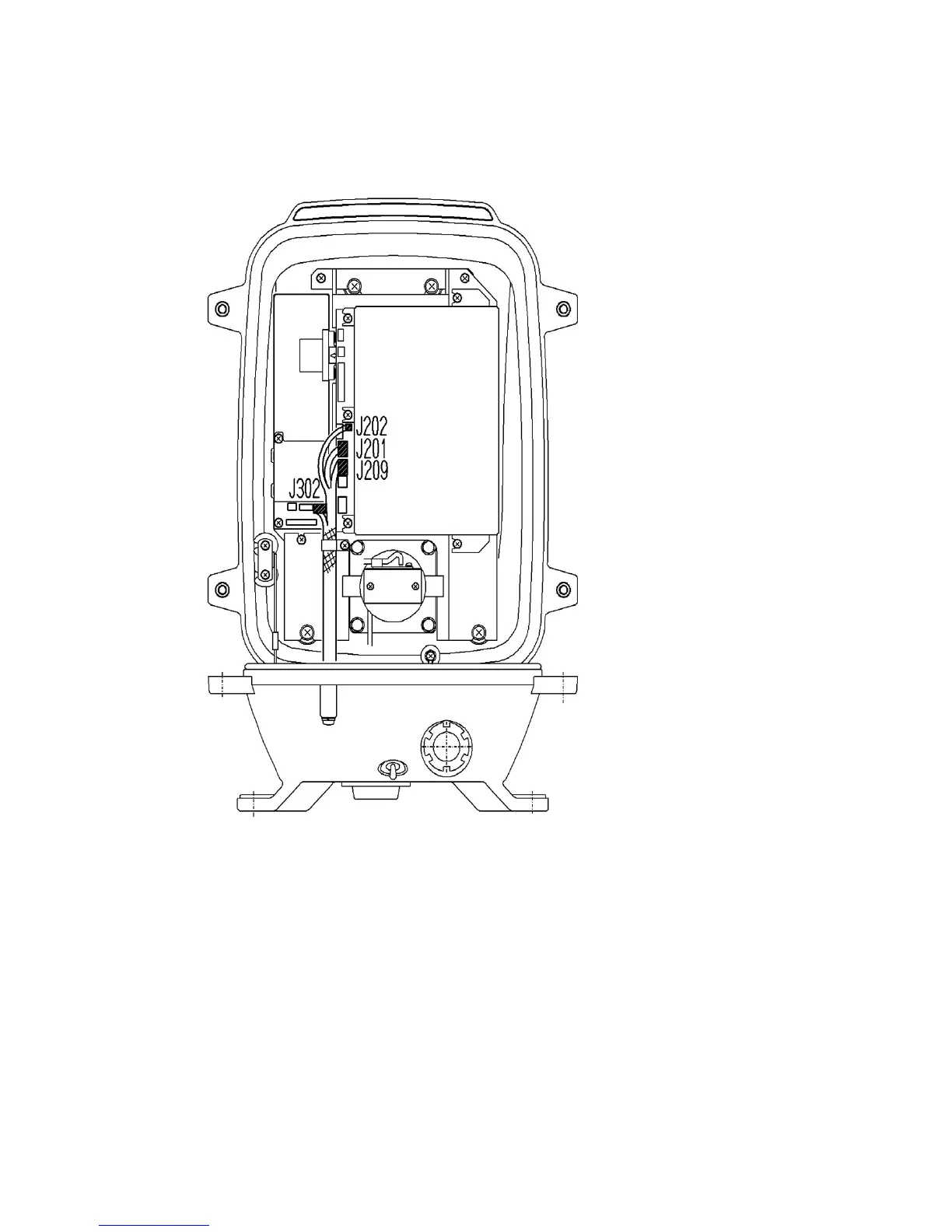

Connector end C to J202
-
Connector end D to J201
-
Connector end E to J209
• Tighten the strain relief clamp then connect Connector end F to one of the screws close by
to provide an Earth.
• Screw down the cable holders and clips to keep the scanner cable in place inside the
scanner, then spread silicon sealant around the nuts and the cable entry point.
