24 | Wiring the radar system

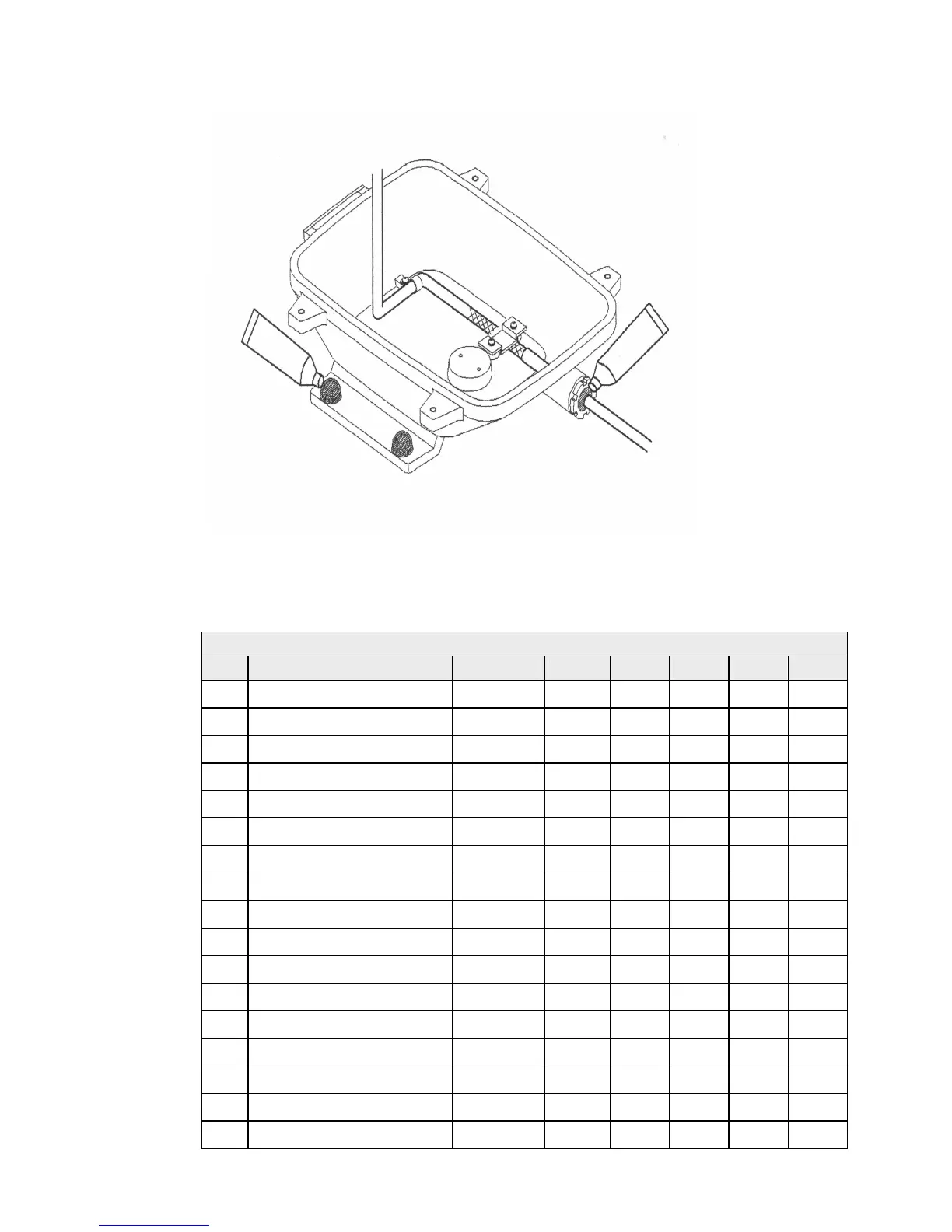

• Close the lid and secure it with the screws.
• The wiring details for the connector ends B, C, D, E, and F are as follows:
AA010093/AA010094 Interconnection cable - connector ends
Pin Color/Name AWG Size B C D E F
1 Blue / Gray (thick) #16
1
2 Purple / Brown (thick) #16
1
3 White / Orange (thick) #16
2
4 Red / Green (thick) #16
2
5 Black / Sky (thick) #16
1
6 Black #22
6
7 Drain wire (coax line) #24
2
8 No connection
9 Yellow / Pink (thick) #16
2
10 Axis line (transparent insulation) #24
1
11 Yellow (thin) #24
3
12 Green (thin) #24
5
13 White (thin) #24
4
14 Drain wire #24
2
15 Shield line #24
1
16 Orange (medium) #22
3
Shell Braid shield
