Simrad AC12 User Manual

Installation | 9
unit. The VRF can be used on boats up to 40 ft.
2 The VRF technology requires a Simrad rate
compass (RC42) for heading information to the
autopilot system.

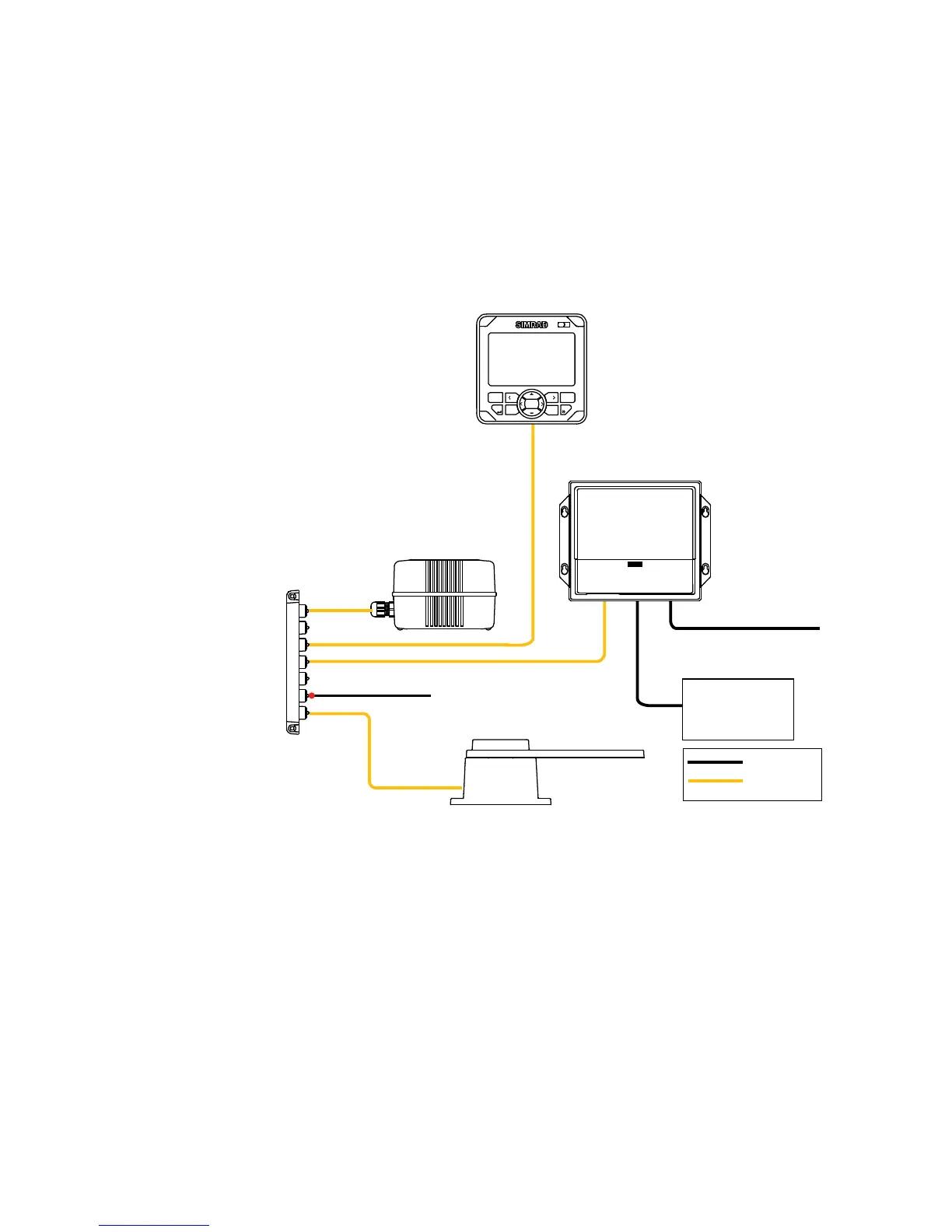

2.4 Autopilot system layout
12/24V Motor supply
Drive unit
AP24
Control Unit
Multijoiner
Compass
5,5 m
5,5 m
5,5 m
24
AP
MODE
MENU
AUTO
STBY
TURN
1010
PWR
1
1
RF25 Rudder Feedback
12V SimNet supply
(SimNet cable with terminator)
Autopilot
Computer
Non SimNet
SimNet
Figure 2-1 AP24 basic system layout
