16 | Installation
Autopilot Computer
*
Non polarized
(color independent)
Optional RF300 Rudder Feedback
*
RUDDER

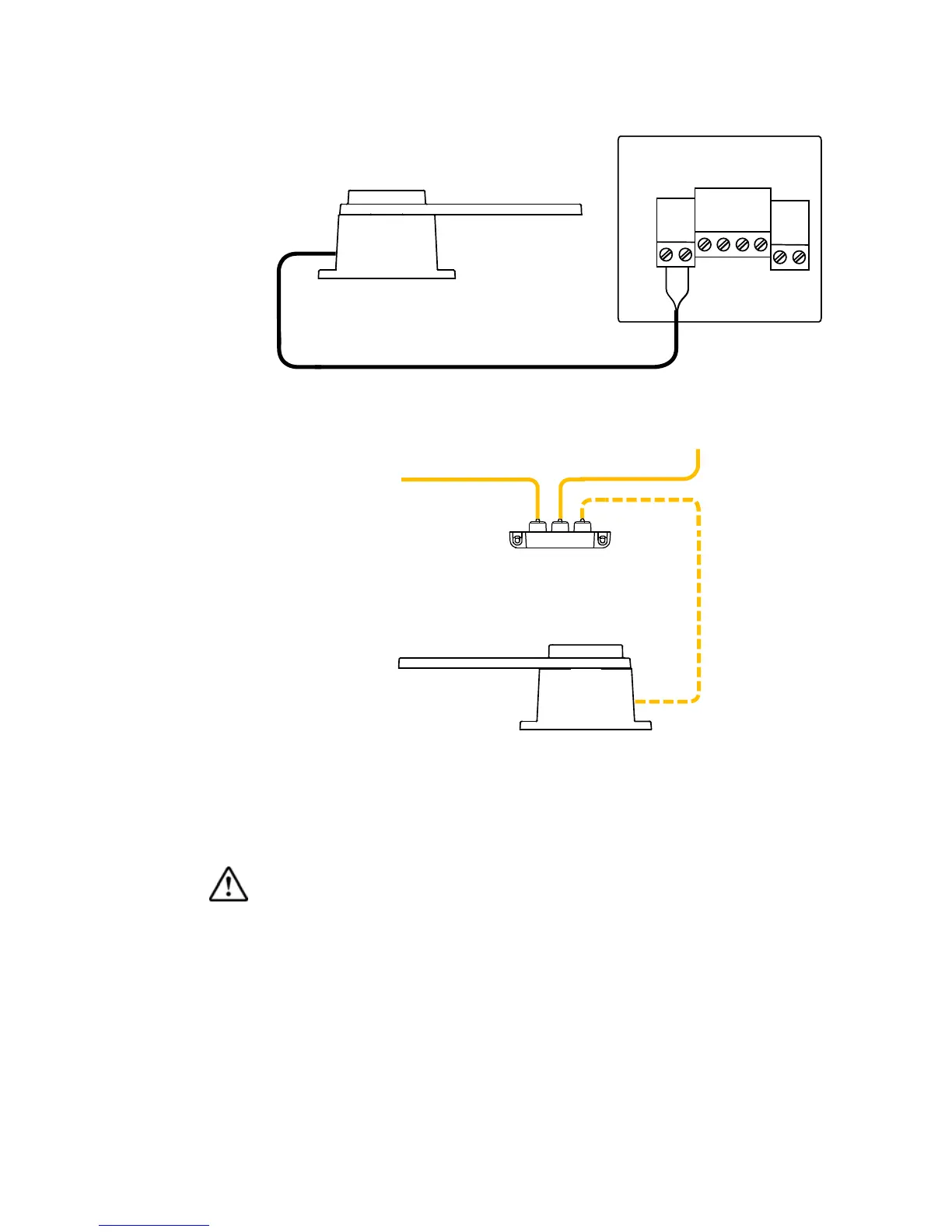

Figure 2-6 RF300 connection
RF25 Rudder Feedback Unit
8-16V SimNet supply
SimNet
T-joiner
Figure 2-7 RF25 connection to SimNet
2.7 LF3000 Linear Feedback
The rod of the LF3000 is not locked in place in the
cylinder. Pay attention as it may slip out of its
housing and end up on the seabed.
The LF3000 is a waterproof feedback unit. It has a 300
mm (11,8") stroke and comes with a special mounting
bracket which secures the LF3000 to the cylinder of the
existing outboard drive unit.
The 8,5 m (28') cable is terminated in the LFI3000 Mk2
Linear Feedback Interface according to Figure 2-9.
T
he mounting hardware provided is made to interface with
Teleflex HC5340 cylinders and Hynautic K7 and K10
