44 | Technical specifications
Cable supplied:............. 10 m (33 ft.) twisted pair shielded cable
Rudder angle: ..............................................................± 90 °
Output signal: .....Polarity independent two wire frequency signal
Frequency resolution: ...... Centre: 3400 Hz, 20 Hz/degree
of change
Linearity: ................................± 3 ° up to 45 ° of rudder
Transmitter link:......Stainless 345 mm (13.6") with 2 ball joints.
Ball joint stud for rudder arm requires
4.2 mm diameter hole and 5 mm tap.

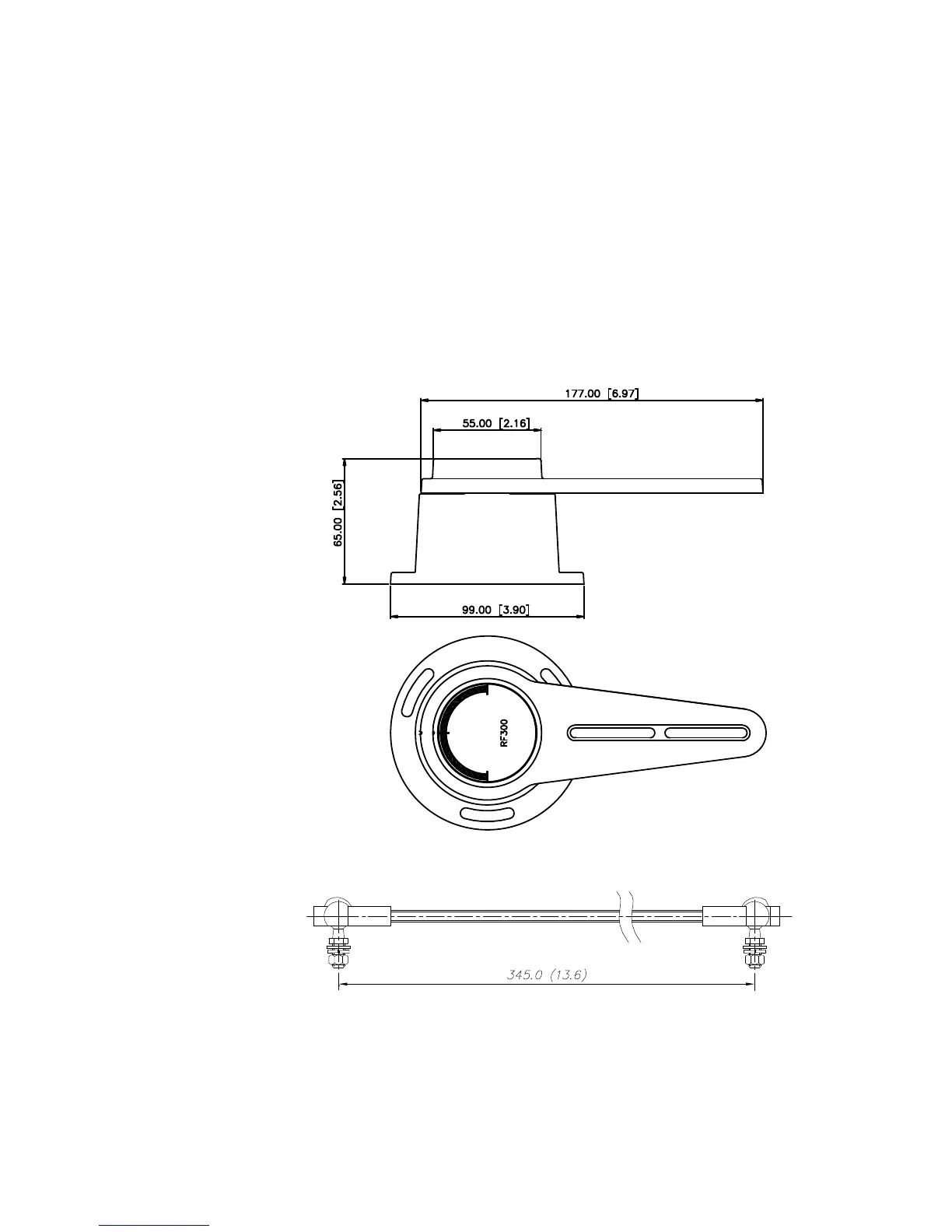

Figure 4-7 Rudder Feedback - Dimensions
Figure 4-8 Transmitter link - Dimensions
