Mounting | AP70/AP80 Installation Manual

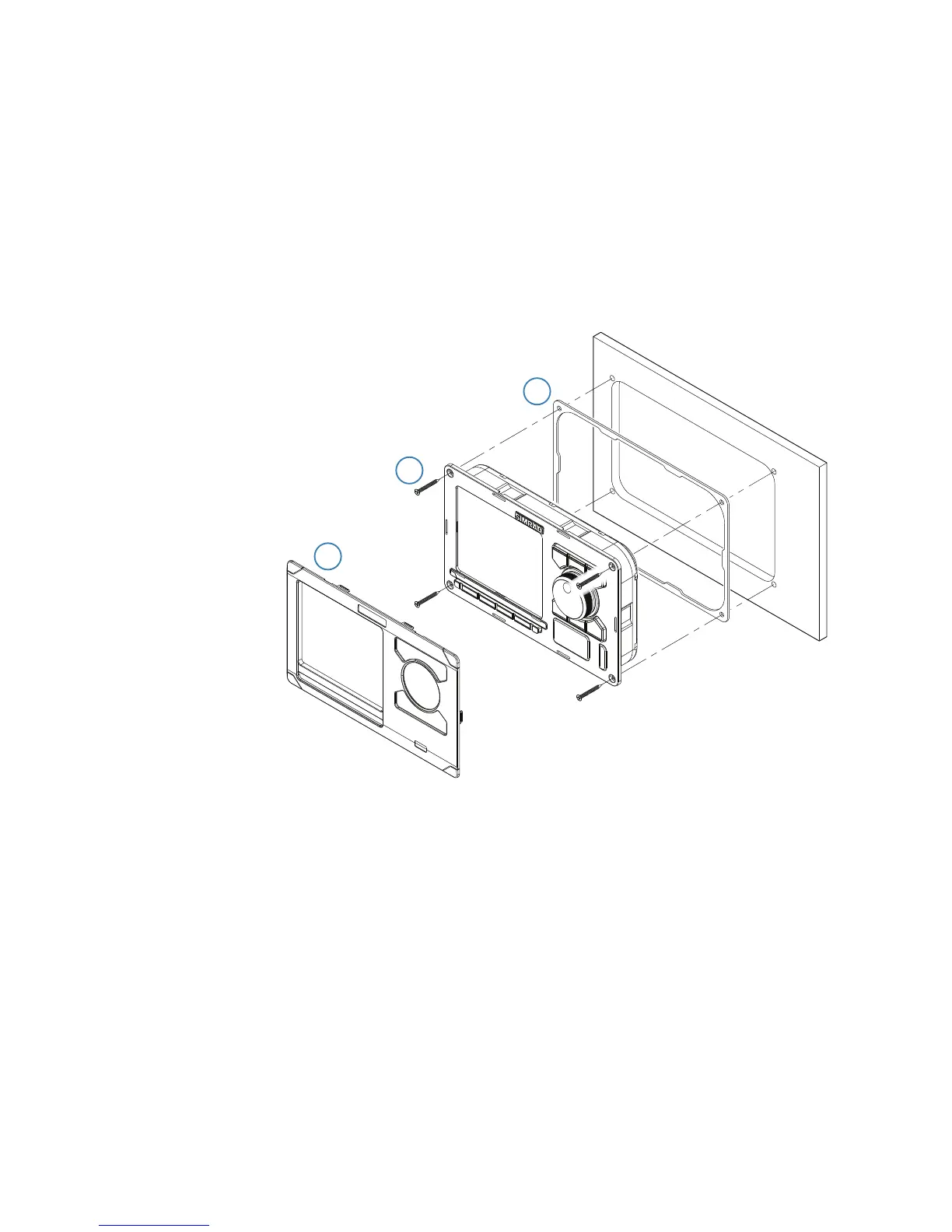

Panel (ush) mount
1. Attach the mounting template to the selected mounting position
2. Drill pilot holes for the 4 hole saw cuts and for the 4 self tapping screws used to secure the
unit. If using M4 machine screws use a 5 mm (0.20 ”) drill bit
3. Use a 25 mm (1 “) hole saw to cut the four corner radius
4. Cut along the dotted line and remove waste material
5. Peel backing off the gasket and apply it to the unit (A)
6. Connect the cables to the rear of the unit before placing the unit into the console
7. Secure the display to the surface with 4 screws (B)
8. Firmly clip the bezel in place (C)
¼ Note: For AP80 the bezel may not be used for flush/low profile installations.
A
B
C
