| 19
Mounting | AP70/AP80 Installation Manual
Bracket mount (option)
¼ Note ! When the control unit is bracket-mounted, it is not weatherproof from the back due to
a breathing hole in the back cabinet. When bracket-mounted, the exposed parts of the plugs
should be protected against salt corrosion.

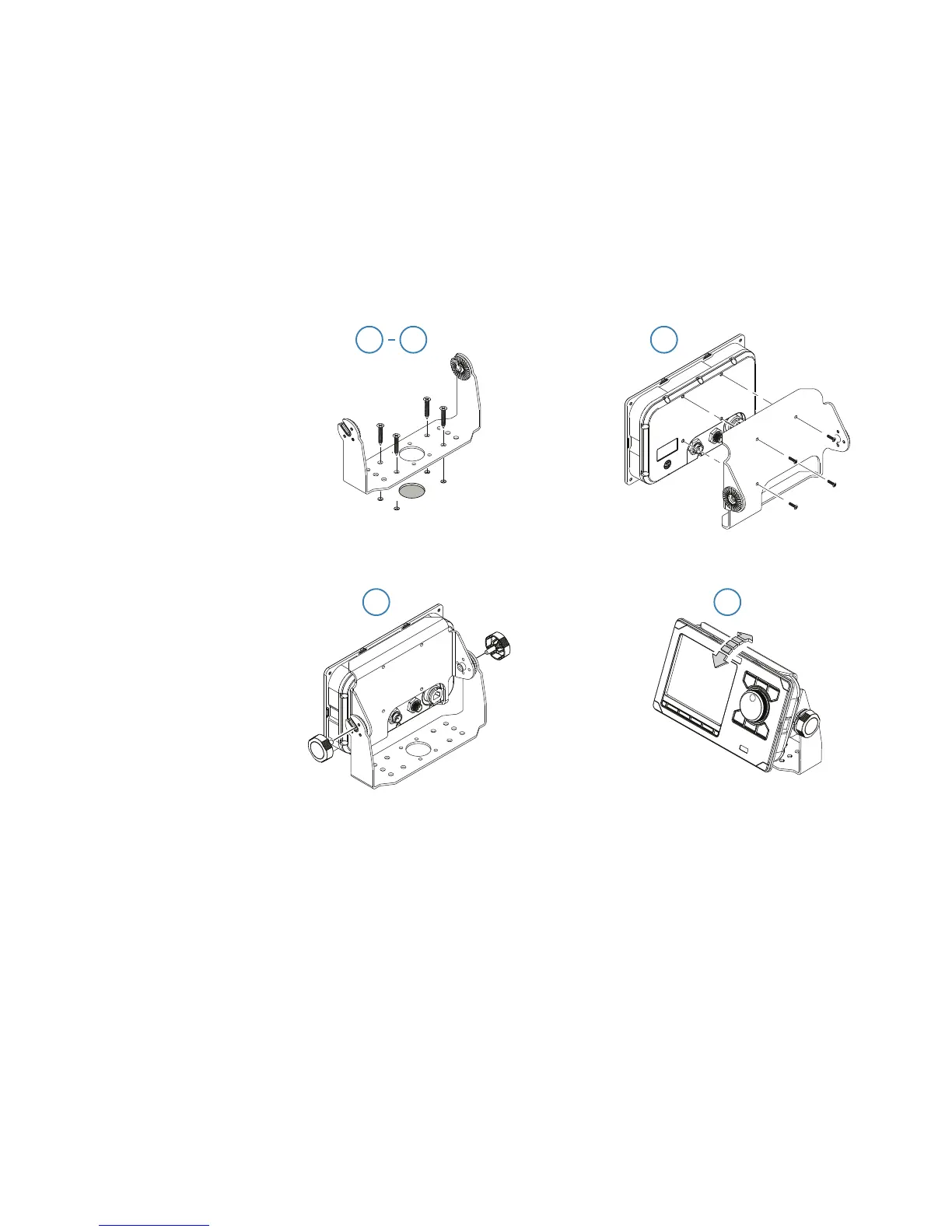

1. Use the bracket base as a template to mark the screw hole location
2. Drill pilot holes and hole for cables if required
3. Secure the bracket base to the surface
4. Secure the bracket’s adapter to the rear of the control unit using the 4 screws supplied with
the bracket
5. Align the bracket base with the cradle and partially screw in the bracket knobs one at a time
6. Adjust the unit for best viewing angle, and tighten the bracket knobs
1 3 4
5 6
