EQ44/54 Fundamentals & initial start-up Chapter 2-1
2.1 Fundamentals of the display and page system

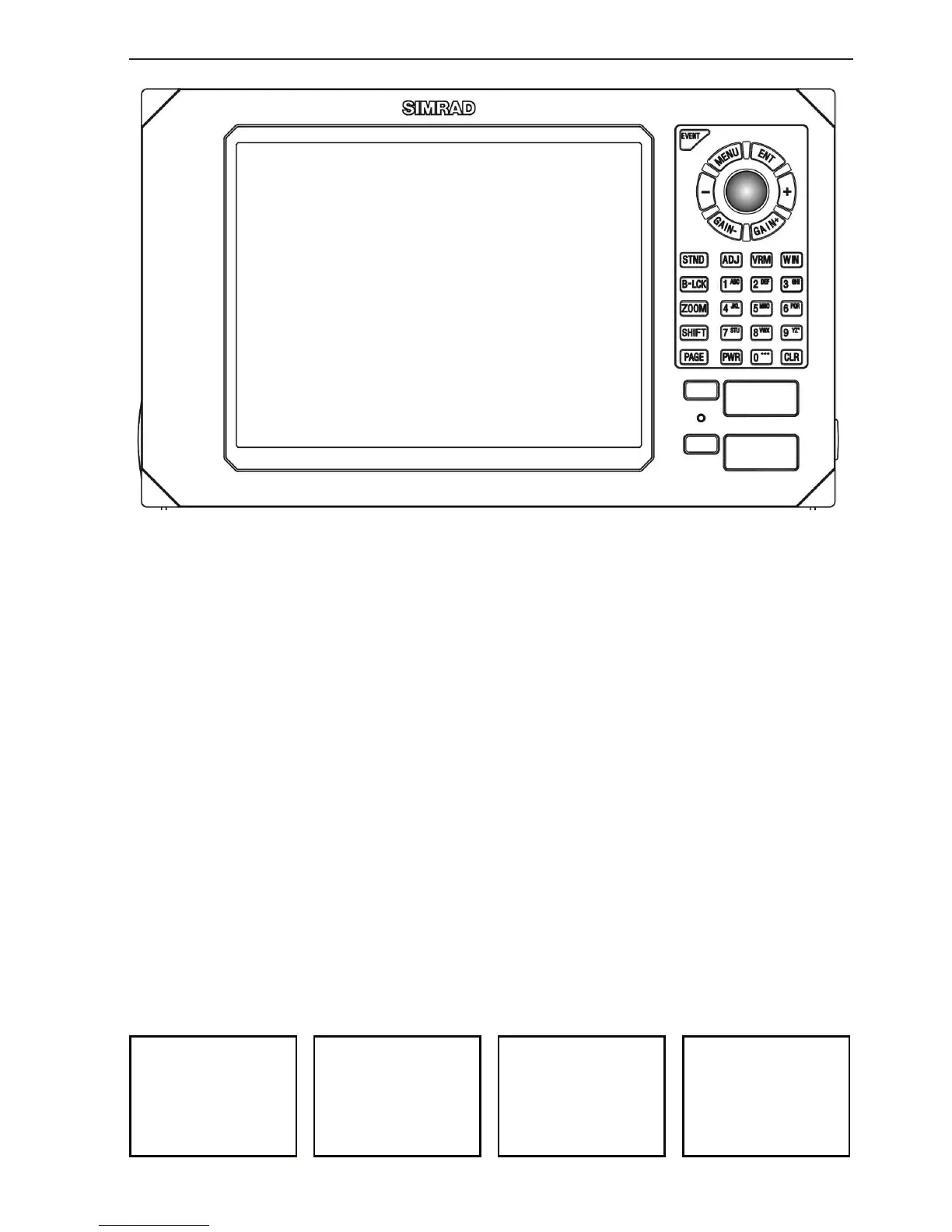

The EQ44/54 Echosounder has a multi-function screen and data
presentation system with full screen and different types of split
screens. The series of pages under the function keys (situated in the
left column of the keypad) will in most situations be sufficient infor-
mation for the operator.
In split screens consisting of up to four displays, the active display
is indicated by a solid red frame. Use the [WIN] key to clockwise
toggle between which display on the screen is active. Only active
displays are operable.
The [PAGE] key differs from the other function keys. There are four
pages under the [PAGE] key which can be set up to the presentation
you prefer by exchanging an existing display in the PAGE system
with a new one selected from a function key or via the menu - see
next page. Single press on the [PAGE] key will toggle between the
active pages under the function keys e.g.:
To Next Page
