EQ44/54 Installation and service Chapter 11-15
11. 6.1 Tr an sducer s (o pt ion)

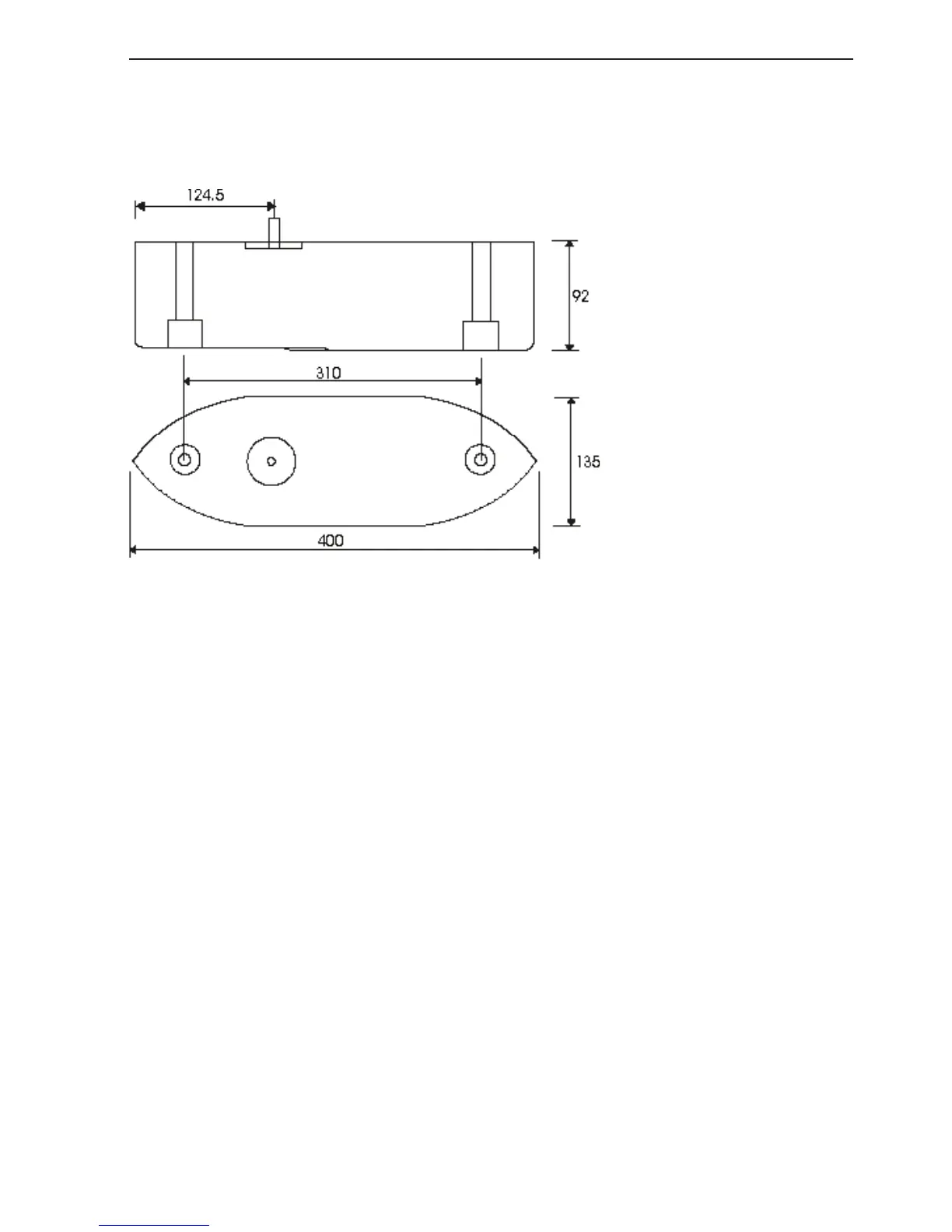

Simrad Combi-transducers C50/200 or C38/200
Combi C50/200 or C38/200 combines two transducers and a temperature
sensor in one housing. It has a streamlined shape, designed for mounting onto
the hull.
Frequency: 50 and 200 kHz 38 and 200 kHz
Beamwidth: longitudinal 10° / 7° longitudinal 13°/ 7°
transverse 16° / 7° transverse 21° / 7°
Maximum pulse
power input: 1000 W 1000 W
Maximum continuous
power input: 10 W 10 W
Storage temperature: max.70°C, min. –20°C max.70°C, min. –20°C
Cable length: 10m (32’) 10m (32’)
Maximum transducer
depth: 20 meters 20 meters
Reference No. Reference No.
700-3000 700-3001
