Chapter 6-2 EQ44/54 ZOOM menu
This feature will provide an expanded view of the area near the
*VRM line which will give a better separation of echoes. The actual
size of the expansion window can be adjusted in the presentation
setup.
*) See section 4.4 Variable range marker.

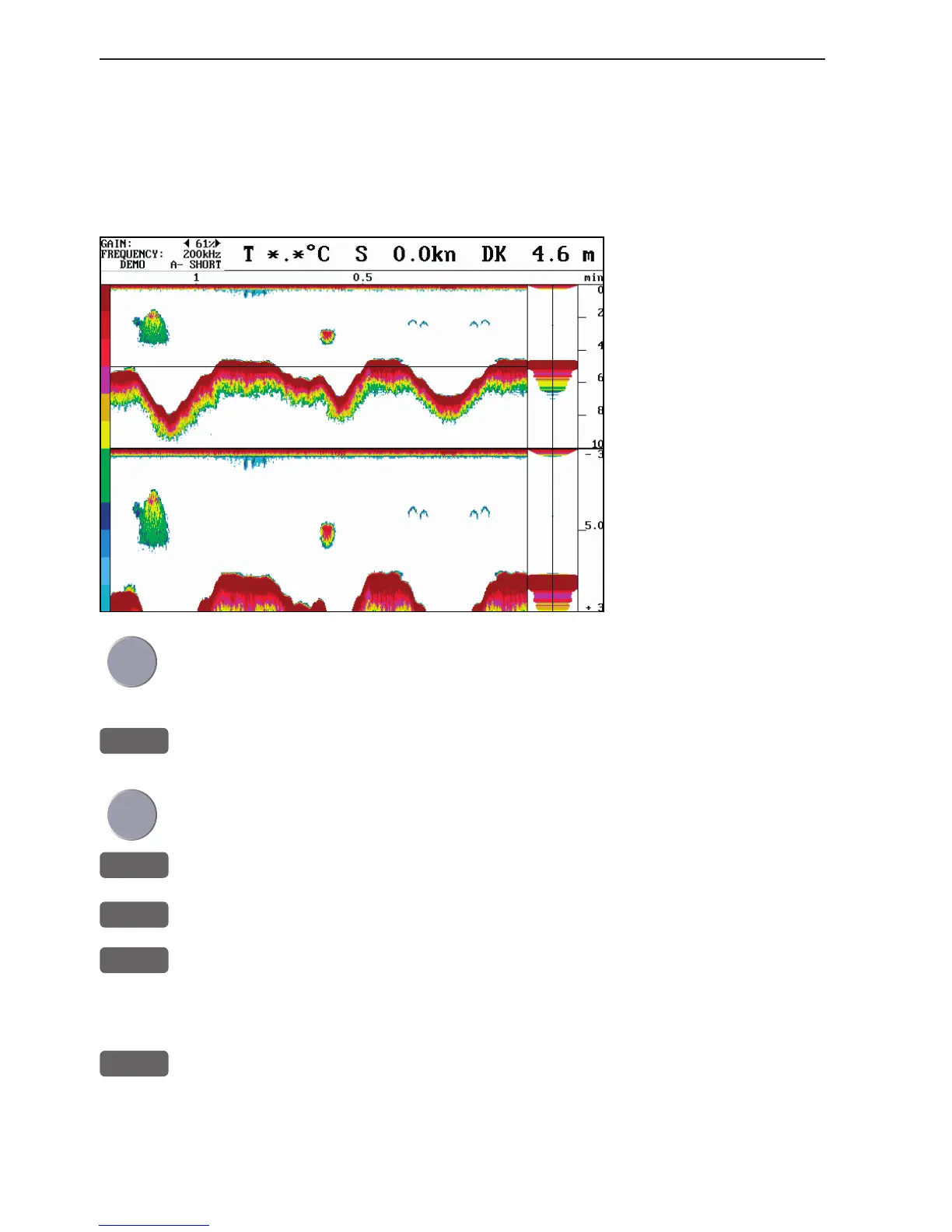

Transmission line.
Time scale.
Depth range is adjust-
able with +/- keys or
the Quick-range keys
1-9.
Press key 0 to return
to Auto range.
Press cursor left/right to adjust gain
ADJ
Direct access to presentation setup related to active echo display
50kHz or 200kHz - (see section 4.7)
Use the cursor to go to the function you wish to change the value for
+/-
Toggle between available values
ENT
Confirm changes, or...
MENU
Abandon changes and exit Setup display
Echo quick menu
ENT
Call up the Echo quick menu with access to the following features:
Change frequency.
Activate/hide A-scope
Turn transmit power on/off
To Next Page
