10 |
Installation | HS80/HS80A/MX575C/MX575D UserManual
Smart GPS compass dimensions

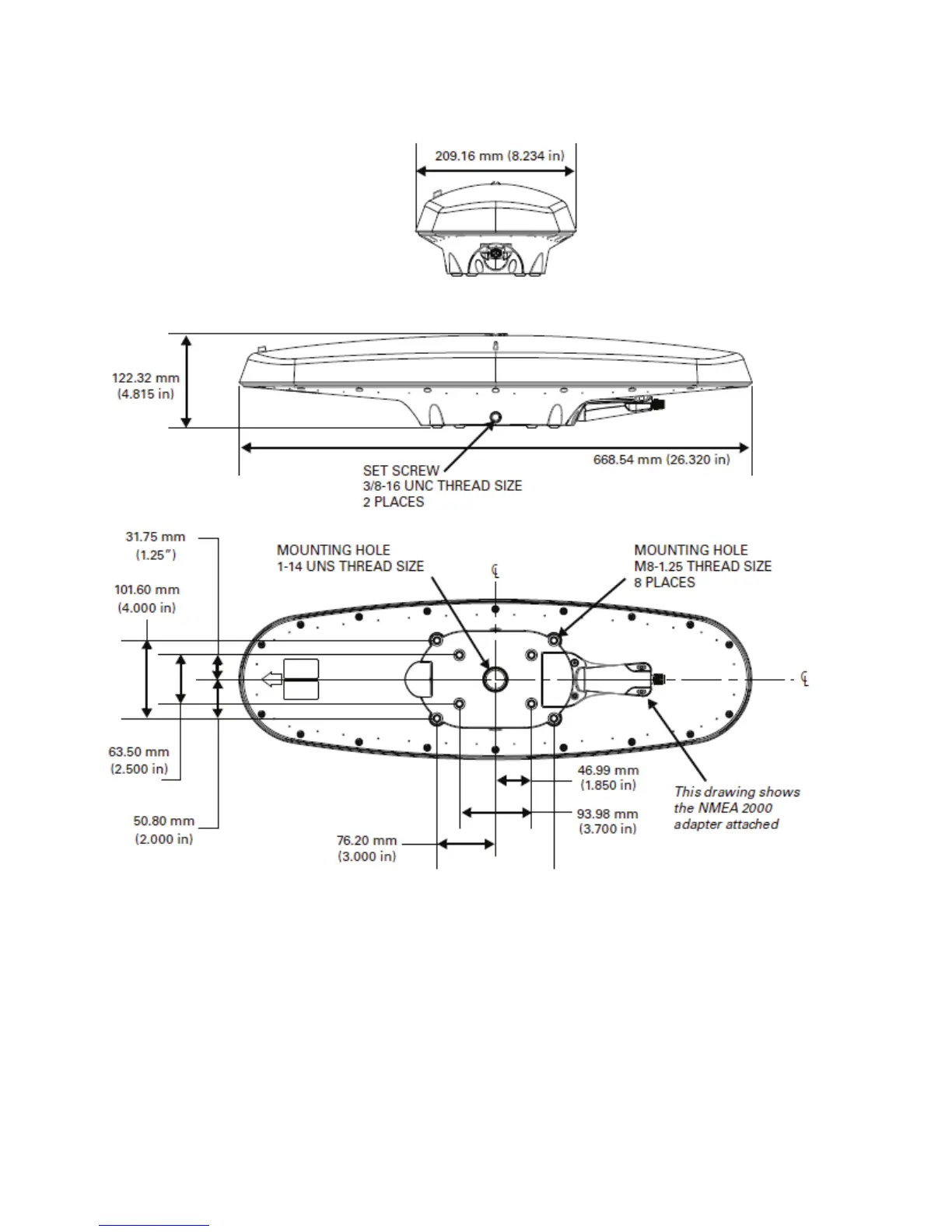

Figure 2-6 illustrates the physical dimensions of the Smart GPS compass.
Figure 2-6: HS80/HS80A/MX575C/MX575D Smart GPS compass dimensions
