Simrad NSO evo3 Installation Manual

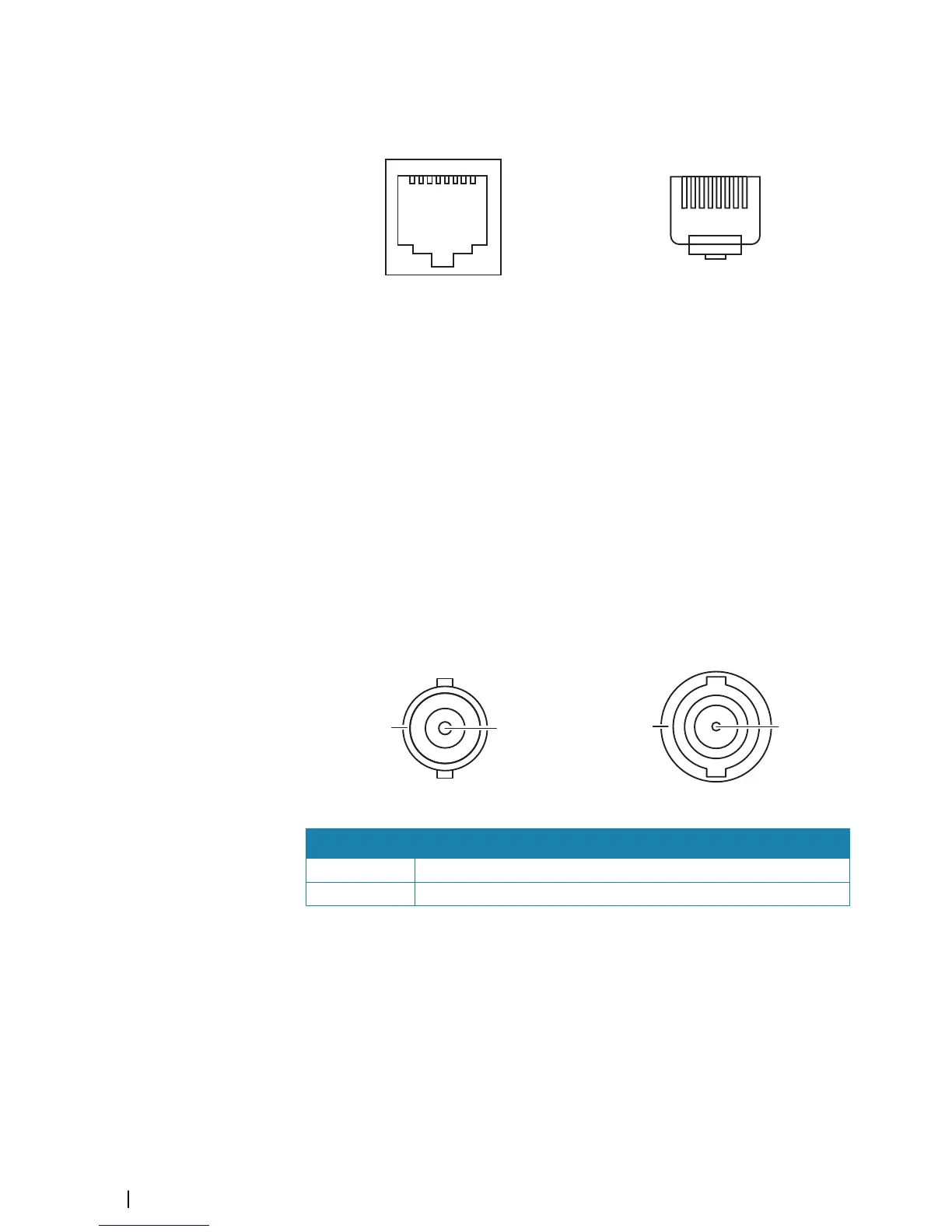

Ethernet connector details
Unit socket (female) Cable plug (male)
The unit is equipped with standard RJ45 connector(s).
Ethernet devices
The Ethernet ports can be used for transfer of data and synchronization of user created data.
It is recommended that each MFD in the system is connected to the Ethernet network.
No special setup is required for establishing an Ethernet network, it is all plug-and-play.
Ethernet expansion device
Connection of network devices can be made via an Ethernet expansion device. Additional
expansion devices can be added to provide the required number of ports.
FLIR camera setup
Compatible FLIR cameras are plug and play when used in conjunction with a device acting
as a DHCP host. For setup on networks not utilizing a DHCP host, refer to the website
www.simrad-yachting.com, or contact technical support.
Video in connector details
1
2
Unit socket (female)
1 2
Cable plug (male)
Pin Purpose
1 Ground
2 Signal
Video in
The unit can be connected to two composite video sources, and display video images on its
display.
Ú
Note: Camera cables are not supplied, and will need to be selected to suit termination -
BNC at the unit, and typically BNC or RCA plug at the camera end.
Ú
Note: The video images will not be shared with another unit via the network. It is only
possible to view video on the unit connected to the video source.
Ú
Note: Both NTSC and PAL formats are supported.
18
Wiring | NSO-evo3 Installation Manual
