Simrad NSS evo3 Software Upgrade Instructions

16 |
Update procedure | Software upgrade instructions

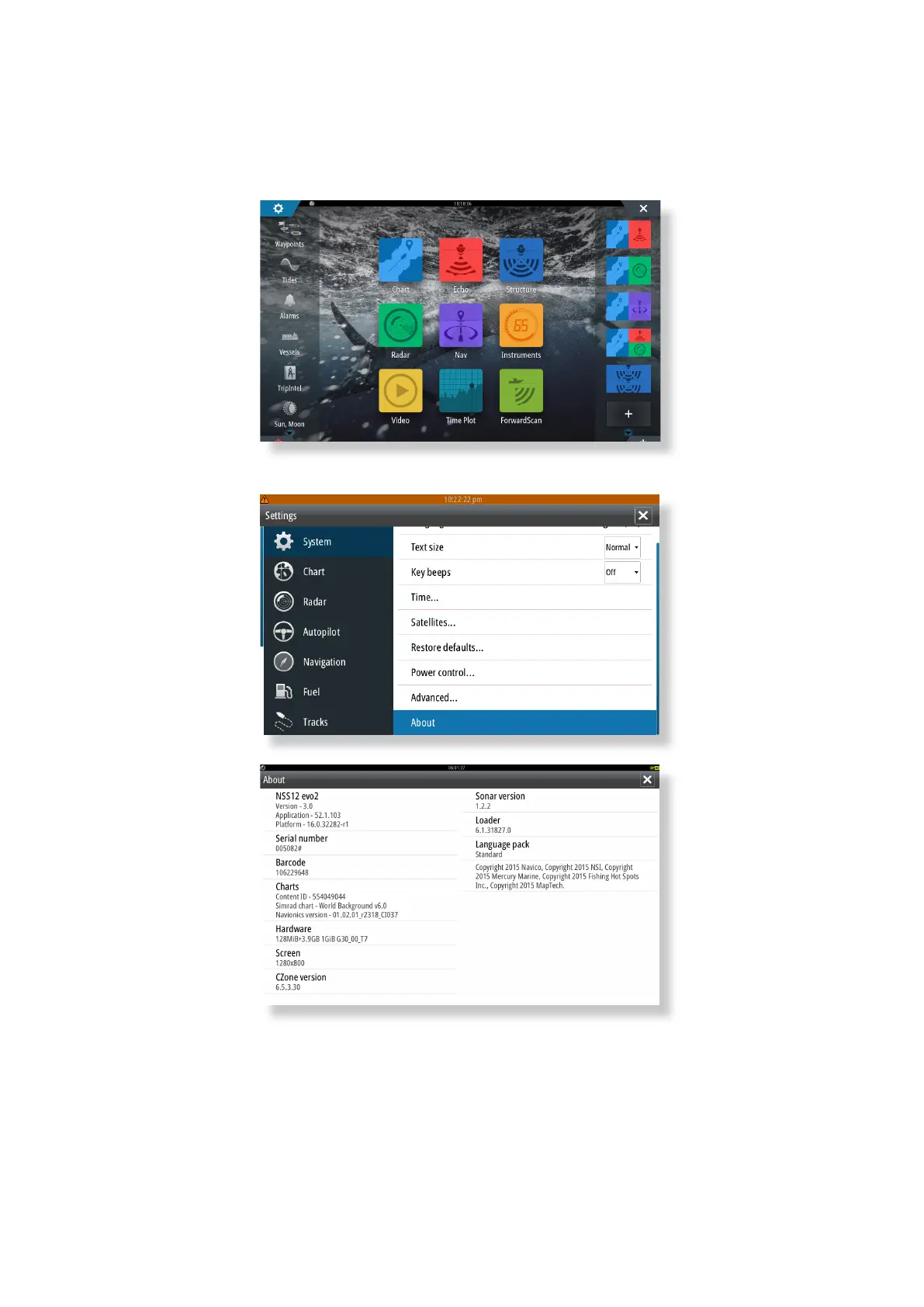

Check the software version number
After the upgrade check the software version to verify the upgrade has been installed
successfully.
1 Activate the Home page
2 Select Settings
3 Select About
¼ Note: For NSO evo2 systems with dual screens, please check the software version is the same
on both of the connected screens. If different please run the up-dater again.

Simrad NSS evo3 Specifications

General

Touchscreen	Yes
NMEA 0183 Connectivity	Yes
Operating System	Linux-based
Chartplotter	Yes
Radar Support	Yes
Waterproof Rating	IPX7
Operating Temperature	-15°C to +55°C
Display Size	9, 12, 16 inches
Screen Type	LCD
GPS	10 Hz built-in GPS receiver
Networking	Ethernet, Wi-Fi, Bluetooth
Sonar	CHIRP, StructureScan
Power Supply	12V DC
Video Input	2
Card Slots	2 x MicroSD
Processor	Quad-core processor
RAM	1GB
Internal Storage	8GB
Resolution	1280 x 800 (12")
