Simrad R5000 Installation Manual

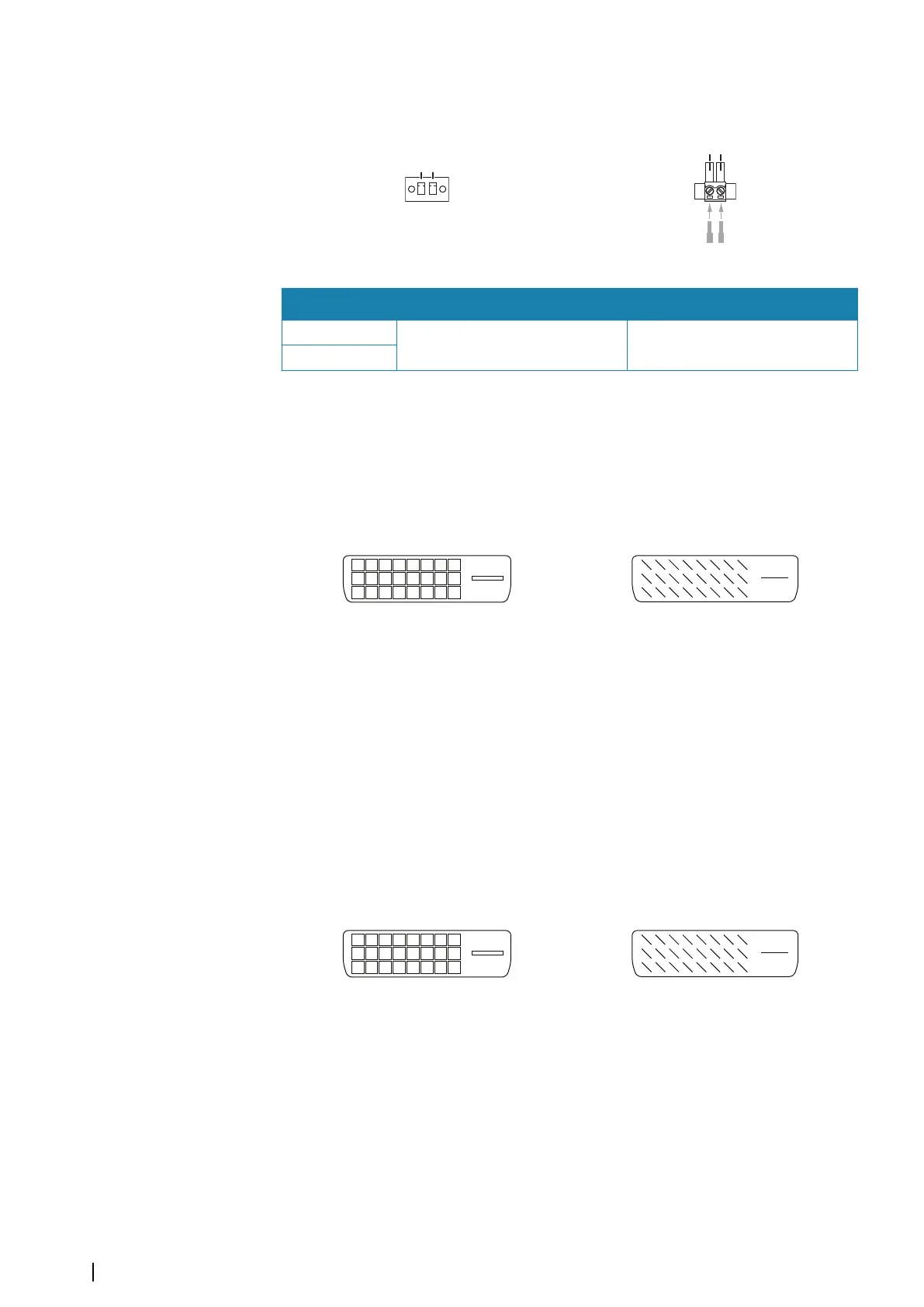

DMA
1 2
Unit socket (male)
1 2
Cable plug (female)
Pin Purpose Note
1
DMA output normally closed, isolated contact
2
VDR
A DVI-D video output is provided for interface to a 3rd party Voyage Data Recorder (VDR). The
output mirrors the screen display at the same resolution. The VDR connected to should
accept digital video input.
DVI-D connector details
Unit socket (female)
Cable plug (male)
The unit is equipped with standard DVI connector(s).
Ú
Note: The unit should be turned off prior to connecting or disconnecting a DVI cable.
Binary image to VDR over LWE
The Binary Image (BI) can be transferred to VDR by the LWE IEC61162-450 protocol. For more
information, refer to "Ethernet" on page 15.
Monitor
The unit can be connected to an external monitor. The image is shown on the external
monitor at the units own native resolution.
DVI-D connector details
Unit socket (female)
Cable plug (male)
The unit is equipped with standard DVI connector(s).
Ú
Note: The unit should be turned off prior to connecting or disconnecting a DVI cable.
Monitor control wiring
A serial connection to the monitor is required to control the monitor brightness.
For wiring details, refer to the System Installation Manual.
14
Wiring | R5000 radar processor Installation Manual
