Installation
Mounting guidelines
• Choose a location that will not expose the unit to conditions that exceed the
specifications, refer to the technical specification in the "Technical specifications" on page 22
• The mounting surface needs to be structurally strong, with as little vibration as possible
• Ensure that any holes cut are in a safe position and will not weaken the boat’s structure
• Before cutting a hole in a panel, make sure that there are no hidden electrical wires or
other parts behind the panel
• Check that it is possible to route cables to the intended mounting location. Leave
sufficient clearance to connect all relevant cables
• Make drip and service loops for cables
Ú
Note: Where flush or panel mounted, the enclosure should be dry and well ventilated. In
small enclosures, it may be required to fit forced cooling.
Warning: Inadequate ventilation and subsequent overheating of the unit
may cause unreliable operation and reduced service life. Exposing the unit
to conditions that exceed the specifications could invalidate your warranty,
refer to the technical specification in the "Technical specifications" on page 22.

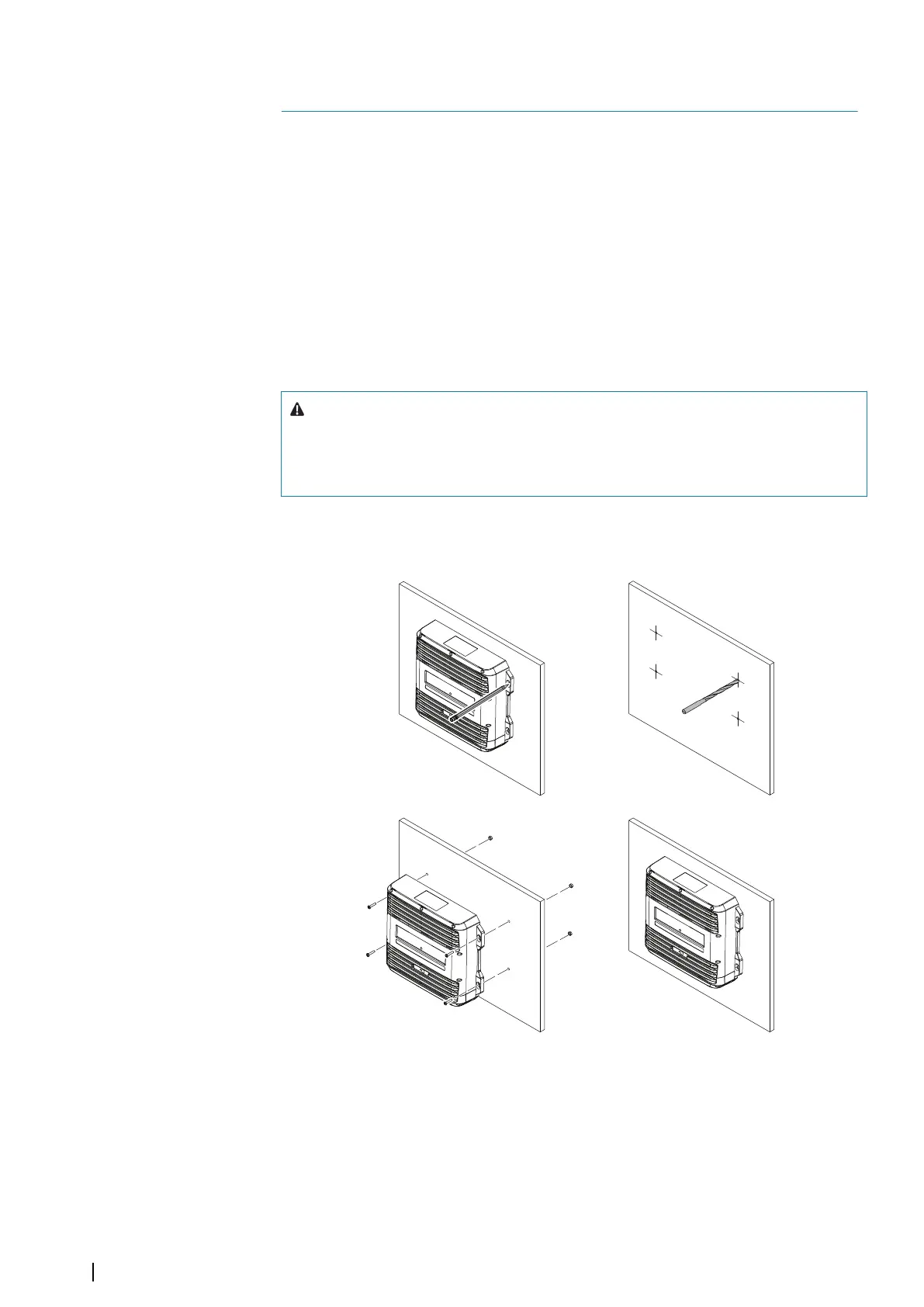

Wall mounting
2
8
Installation | R5000 radar processor Installation Manual
