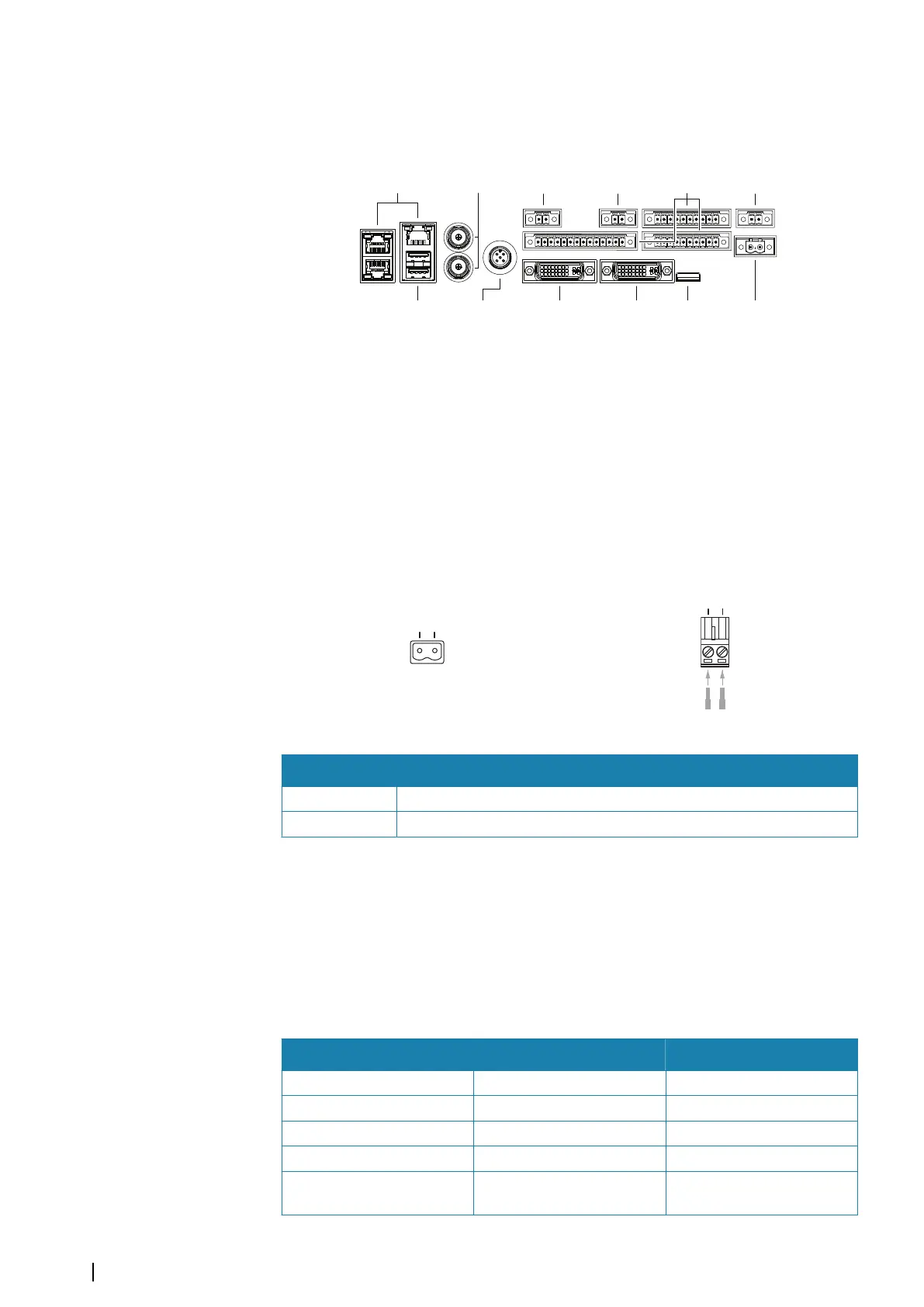

Connectors
R5000 radar processor unit
DGT DMA ALARM
POWER
IN
MICRO
SD®
VIDEO IN
NETWORK
VDRMONITORNMEA®
2000
USB
SERIAL
Ú
Note: The video in connectors are not used.
Power
The unit is designed to be powered by 24 V DC.
It is protected against reverse polarity, under voltage and over voltage (for a limited
duration).
If R5000 power supply is not used, a fuse or circuit breaker shall be fitted to the positive
supply. For recommended fuse rating, refer to "Technical specifications" on page 22.
Power connector details
Unit socket (male)
Cable plug (female)
Pin Purpose
1 +12/24 V DC
2 DC negative
Serial
The serial port provides input (Listeners) and outputs (Talkers) for the various interfaced
sensors. The port uses the IEC 61162 (serial balanced) standard.
IEC 61162 messages
The serial ports are preconfigured and cannot be changed. For details, refer to the
commissioning manual.
Description Sentences Serial ports
Heading input THS, HDT Port 1 in
AIS input VDM, VDO Port 2 in
Tracking data output TTD, TLB Port 1 out
Own-ship speed-log input VBW, VHW Port 3 in
Own-ship position, ground
speed and time
GLL, GGA, GNS, DTM, RTE,
VTG, WPL, ZDA
Port 4 in
10
Wiring | R5000 radar processor Installation Manual
