Simrad R5000 Installation Manual

Description Sentences Serial ports
Own-ship, radar system and
tracking data output
OSD, RSD, TTM Port 4 out
BAM input ACN, HBT Port 5 in
BAM output ALC, ALF, ARC, HBT Port 5 out
Legacy BAM input ACK Port 5 in
Legacy BAM output ALR, EVE Port 5 out
Monitor brilliance control
input
- Port 6 in
Monitor brilliance control
output
- Port 6 out

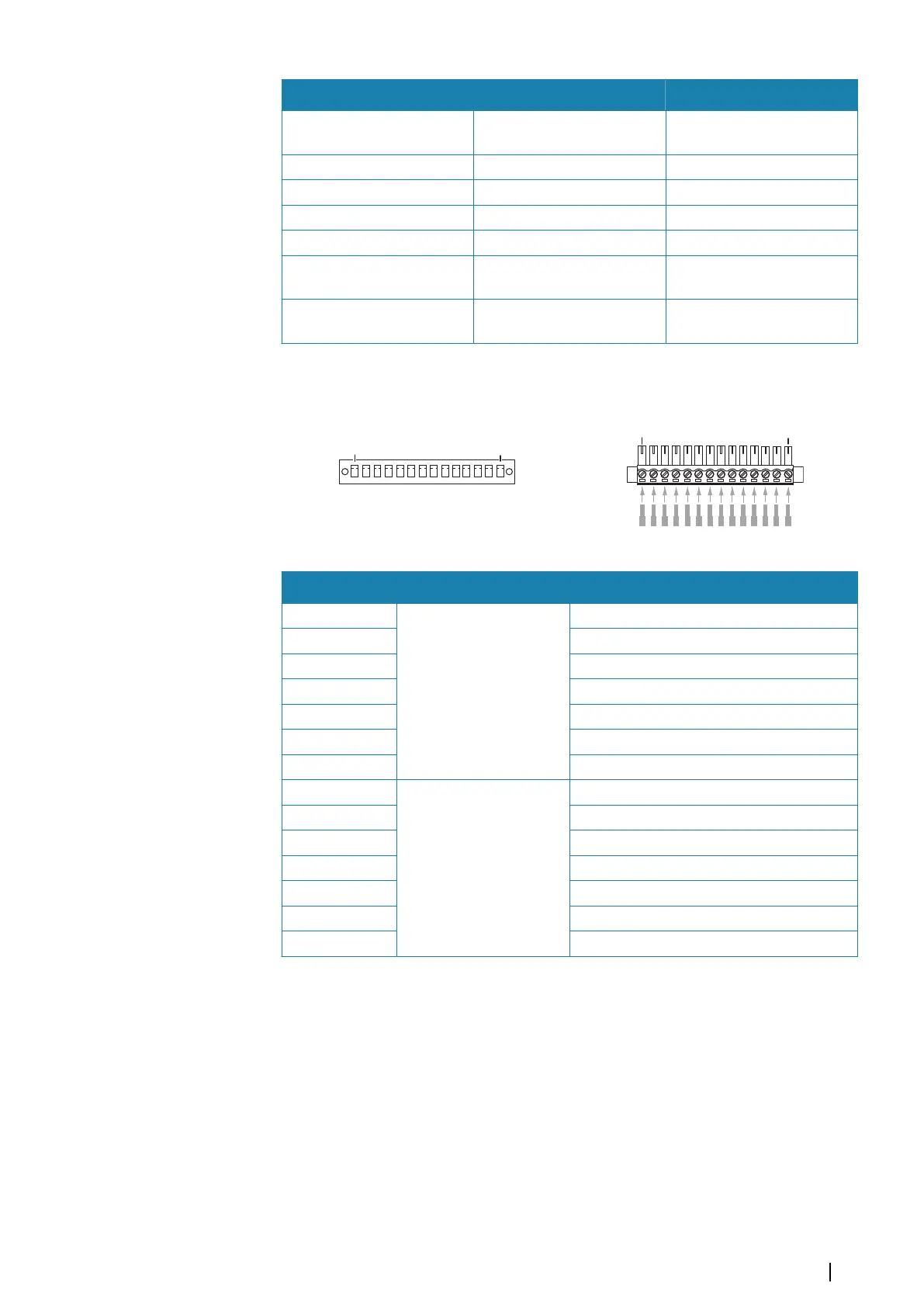

Serial 1-2
1
14
Unit socket (male)
1
14
Cable plug (female)
Pin Port Purpose
1
Port 1
(IEC 61162-2)
Listener A (Rx_A)
2 Listener B (Rx_B)
3 Shield
4 Ground
5 Talker A (Tx_A)
6 Talker B (Tx_B)
7 Shield
8
Port 2
(IEC 61162-2)
Listener A (Rx_A)
9 Listener B (Rx_B)
10 Shield
11 Ground
12 Talker A (Tx_A)
13 Talker B (Tx_B)
14 Shield
Wiring | R5000 radar processor Installation Manual
11
