Group source selection
This option does not affect the system. All devices in the network use sources independently.
Advanced
Detailed configuration option for the selected device.
Advanced source selection
This allows the most flexible and precise manual control over which devices provide data.
Occasionally auto select might not assign the desired source, which can be corrected using
the advanced source selection.
Priorities table
Used for defining the priority of the control stations for a radar sensor.
The priority can be assigned to all control stations that are registered in the list of control
stations. Refer to "Control stations" on page 28.
The priority configuration can be done from any control station on the Interswitch network,
also with other control stations being offline. Once a control station is available on the
Interswitch network, the settings will be synchronized and accessible.
Assigning the control station priority

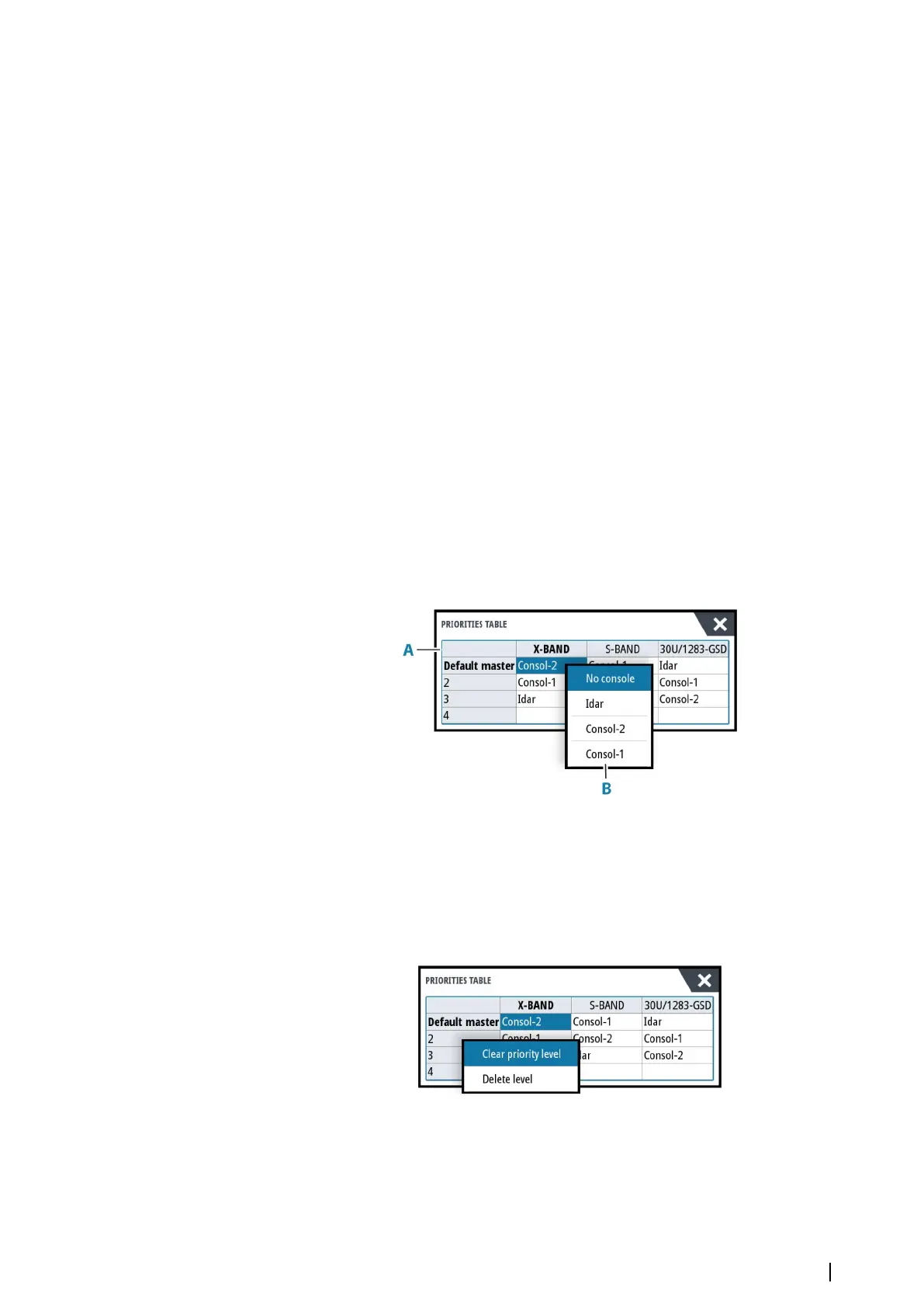

The priorities table list all available radar sensors (A). The name is defined as described in the
"Sensor name" on page 20.
Right-click a cell, or press the enter key when the cursor is over a cell, to display the list of
available control stations (B). The control station name is defined as described in the "Control
stations" on page 28.
1. Define the default master for each radar sensor. The control station that is directly wired
to the radar sensor should be set as the radar sensor's default master
2. Define a priority for each control station that shall be allowed to control each of the radar
sensors
Remove a priority level
A priority level can be removed by right-clicking the greyed area for that priority.
Remove sensor or sensor priorities
Right-click the greyed area including the sensor name to remove all priorities for a radar
sensor, or to remove the radar sensor from the list
Software setup | R5000 Commissioning manual
