Simrad RI9 - Maintenance; Spare Parts

Simrad RI9 Rudder Angle Indicator
12 20220562E
1.4 Maintenance
Simrad rudder indicator equipment will need no special attention
besides replacing illumination bulbs (See Fig. 1-12 for location of
bulbs). It is, however, essential that the mechanical linkage between the
rudder stock and the shaft of the rudder feedback unit is regularly
checked and maintained in good condition to avoid misalignment.
1.5 Spare parts
Art.no. Pos. Description
22015655 RI9 Rudder Angle Indicator
22015663 Mounting kit
22015622 1 Printed Circuit Board Assy (PCB)
22015671 2 Instrument
22015028 3 Window
44117687 4 Light Bulb 12V 40mA
44155620 5 Potentiometer, 2.2K
44107423 6 Nut Cover
44149995 7 Dimmer Knob
44108496 8 Cap
22015606 9 Front panel plate
22015721 2 Instrument scale 60 degrees
22015697 2 Instrument scale 70 degrees
22015705 2 Instrument scale 90 degrees

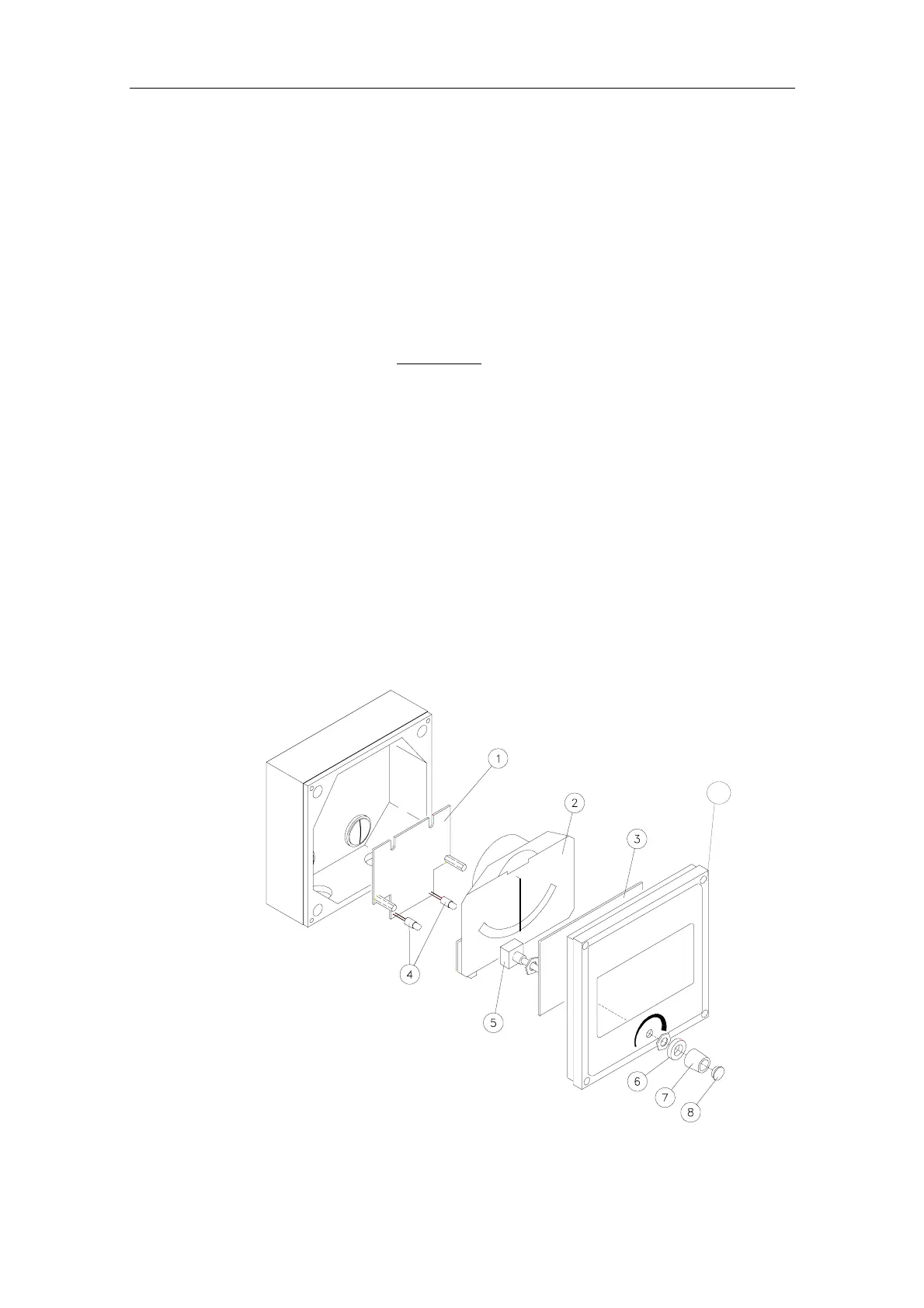

Fig. 1-12. RI9 Exploded view
