Simrad RI9 Rudder Angle Indicator
4 20220562E
137 (5.40")
144 (5.67")
Panel cut-out:138x138 (5.44")
65 (2.56")
57 (2.24")
144 (5.67")
153 (6.02")
RI9

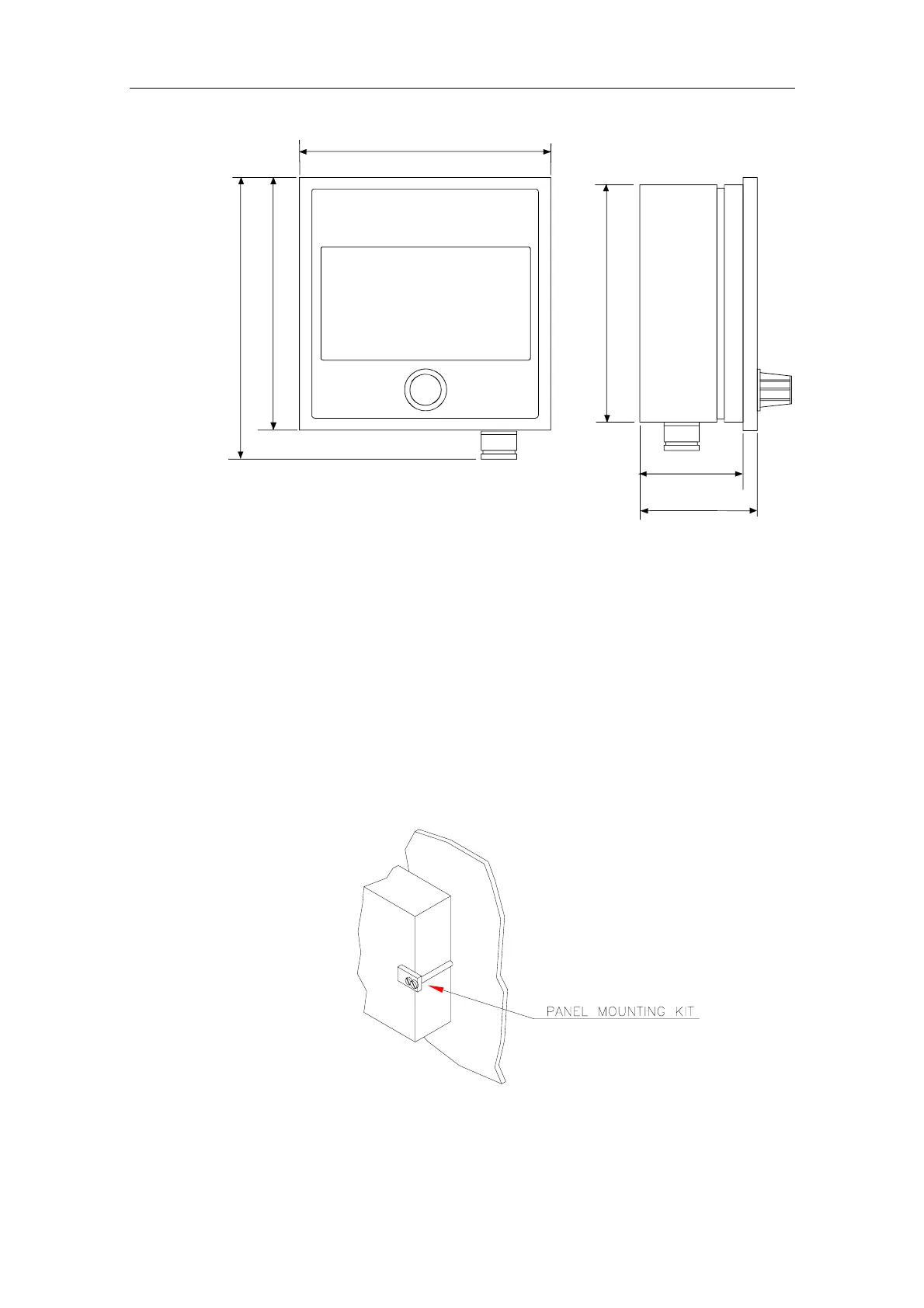

Fig. 1-1 RI9 Dimensions
1.3 Installation
The RI9 is designed for bulkhead or panel mounting, and should be
positioned in a location in clear view of the helmsman and the ship's
officers. For bulkhead mounting, use the 8 bushings enclosed with the
unit. These are placed two and two against each other and the screws
are put through them. Direct contact between RI9 and a steel bulkhead
is then avoided and corrosion is prevented.
Several indicators may be connected to one rudder feedback unit, in
parallel for voltage input signal, and in series for current input signal.
Fig. 1-2 RI9 Panel mounting
