Simrad RI9 Rudder Angle Indicator
14 20220562E
2.2 Technical specifications
Dimensions:............ .........See Fig. 2-1 and Fig. 3-2
Protection: .............. .........IP56
Ambient temperature:.......–10 - +55°C
Supply voltage:....... .........24VDC –10%/20%
Frequency section 12-40V DC
Output RAI:............ .........Midship reference 0.5 x supply voltage
Full deflection ±9V
Output autopilot: 3400Hz ±20Hz/degree
No. of indicators: 5 in parallel
Rudder angle: ......... .........±45° (changeable to 60, 70 or 90°)
Limit switches:....... .........Adjustable from ±5° to ±160°

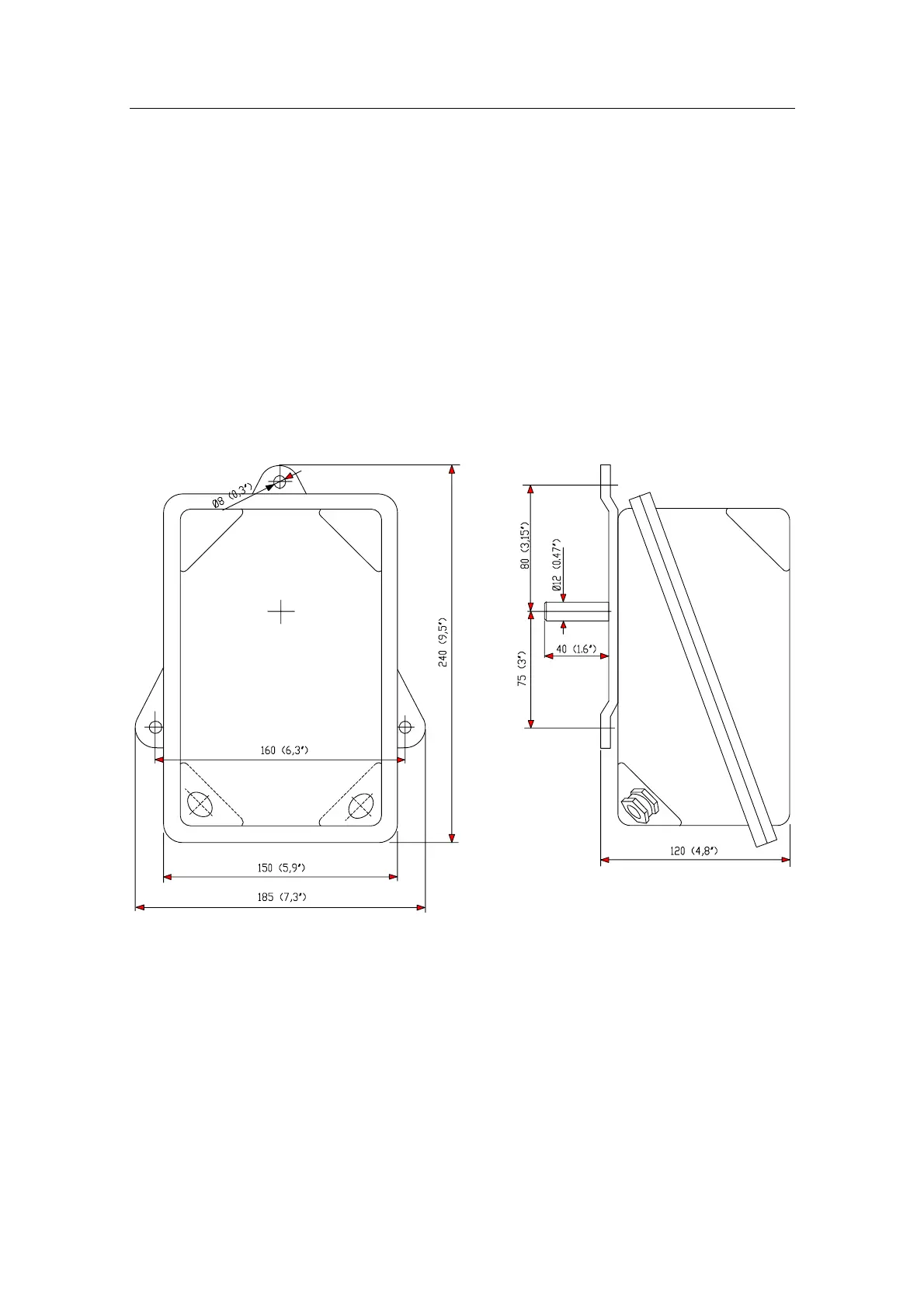

Fig. 2-1 RF14XU, dimensions
