General Information | RS40/RS40-B User Guide

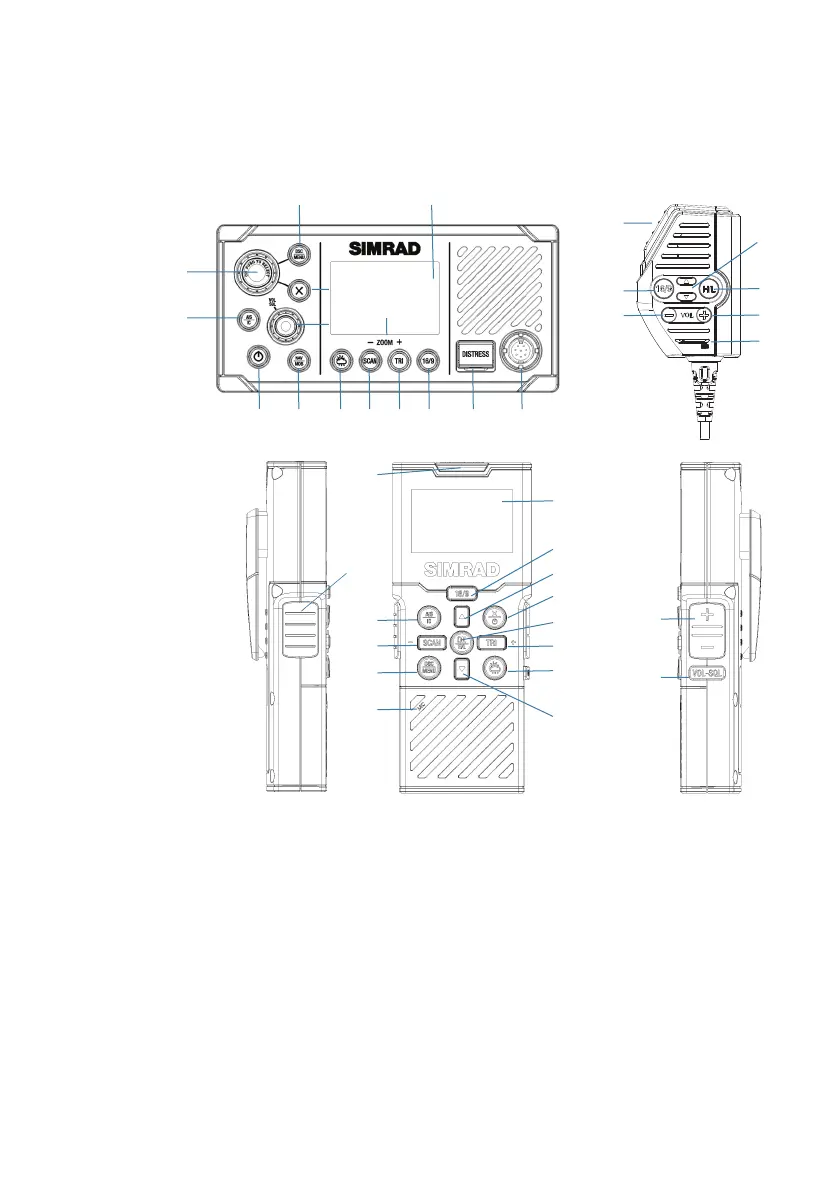

Key functions
The following describes the direct functions of the keys/knobs.
Where necessary, additional detail on any menus accessed by keys is
covered in following chapters.
1
5
7
4
3
2
8 9 10 11 12 13 18
6
24
14
1616
15
17
12
19
24
12
15
20
21
11
9
15
13
17
5
10
4
19
23
22
1. Channel knob / Press to Select
Turn knob for channel selection, menu scrolling, alphanumeric
entry, and fine adjustment of backlight level (dependent on active
menu).
Short press to make selections in menus.
Long press to open MY CHANNELS.
2. VOL / SQL
Volume and Squelch level.
Short press knob to select which control to adjust. Which is
currently selected is indicated by a small triangular arrow above
the level bar for each option. Turning the knob clockwise increases
setting, anti-clockwise decreases it. Volume control is common to

Simrad RS40 Specifications

General

Type	VHF Marine Radio
Display	LCD
AIS Receiver	Yes
NMEA 2000	Yes
Waterproof Rating	IPX7
Output Power	25W
NMEA 0183	Yes
Modulation	FM
Power Supply	12V DC
DSC	Class D
Channels	International, US, Canadian
GPS	Built-in
Frequency Range	156.025 MHz to 162.025 MHz
Weight	1.2 kg
