Installation | RS40/RS40-B User Guide
Cradle charger (BC-12)
What’s in the box
1. Cradle charger
2. 2 pcs 4 x 25 mm, stainless steel, panhead Phillips
3. Documents: warranty card, mounting template

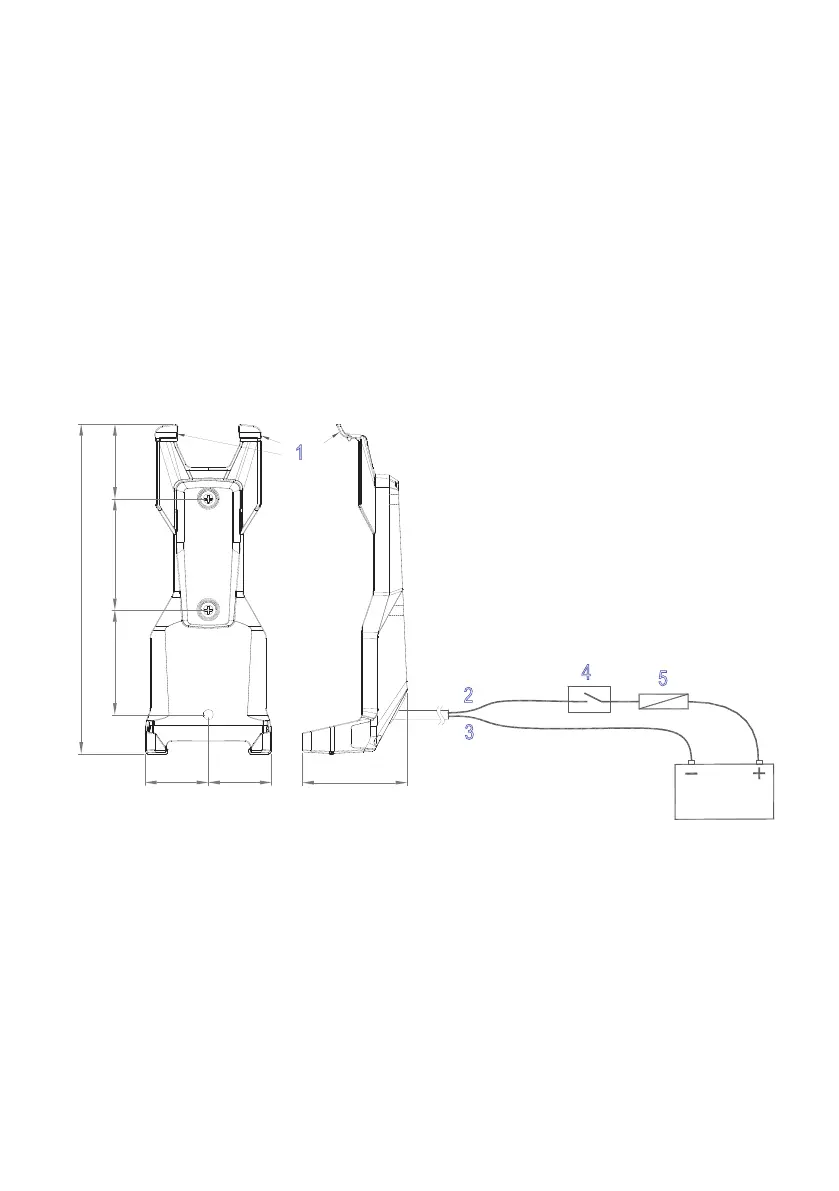

Wiring instructions
1. Connect the red wire to battery (+) via 2A fuse (not provided)
2. Install an optional power switch
3. Connect the black wire to battery (-)
1. Handset release tabs
2. Red wire
3. Black wire
4. Switch
5. Fuse 2A
58.0mm
[2.28"]
54.5mm
[2.15"]
171.5mm
[6.75"]
32.9mm
[1.29"]
32.9mm
[1.29"]
38.8mm
[1.53"]
12V DC
54.5mm
[2.15"]
1
2
3
4
5
