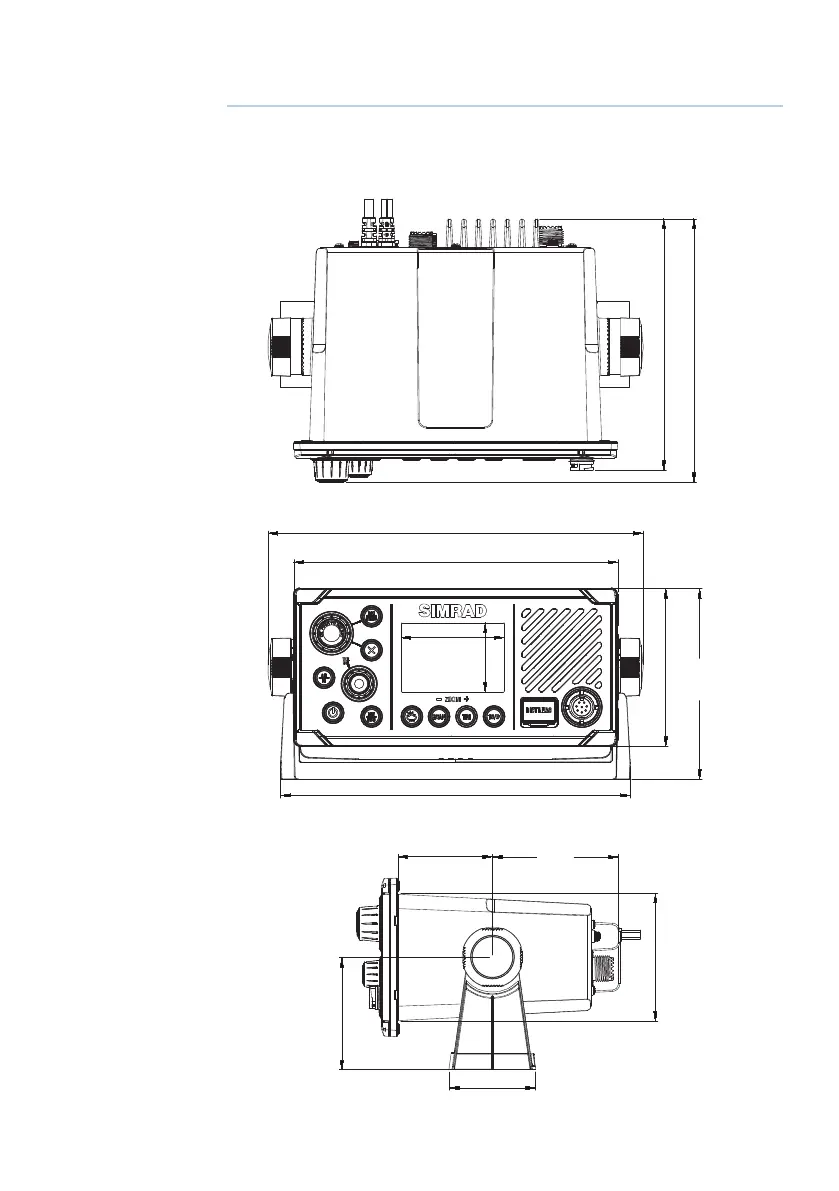

Dimensional drawings
RS40/RS40-B xed mount VHF
12
118.7mm
[4.67"]
97.8mm
[3.85"]
64.1mm
[2.53"]
42.8mm
[1.68"]
201.2mm
[7.92"]
217.2mm
[8.55"]
53.5mm
[2.11"]
79.5mm
[3.13"]
58.5mm
[2.30"]
69.7mm
[2.74"]
155.9mm
[6.14"]
163.3mm
[6.43"]
232.8mm
[9.17"]
78.2mm
[3.08"]
118.7mm
[4.67"]
97.8mm
[3.85"]
64.1mm
[2.53"]
42.8mm
[1.68"]
201.2mm
[7.92"]
217.2mm
[8.55"]
53.5mm
[2.11"]
79.5mm
[3.13"]
58.5mm
[2.30"]
69.7mm
[2.74"]
155.9mm
[6.14"]
163.3mm
[6.43"]
232.8mm
[9.17"]
78.2mm
[3.08"]
