Simrad RS40 User Manual

| 41
DSC call menu | RS40/RS40-B User Guide

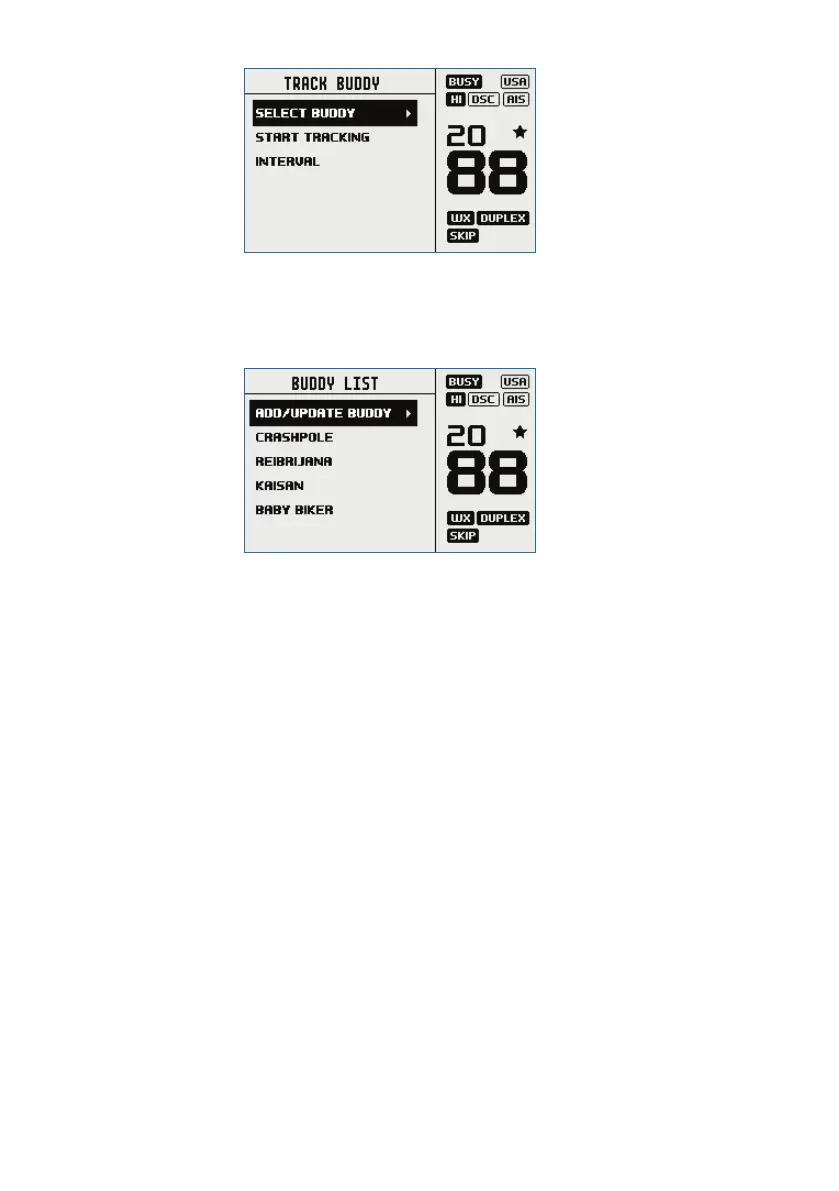

Select buddy
Shows any existing ‘buddies’ already selected, and the option to add
more. Selecting a ‘buddy’ already in the buddy list will remove them.
Choose ADD/UPDATE BUDDY to view the full contacts list, and
choose who to add for tracking.
Start tracking / Stop tracking
Selecting START TRACKING option initiates tracking of buddies in
the Track buddy list that have been set to tracking ON. The radio will
show a screen indicating which buddy is being called. If there is no
acknowledgement, the radio will retry the call after a few seconds.
Only one retry is made per tracking interval.
If tracking is already taking place, the START TRACKING text is
replaced with STOP TRACKING.
Interval
The frequency that ‘buddies’ are polled with position requests can
be selected between: 5, 15, 30 and 60 minutes.

Simrad RS40 Specifications

General

Type	VHF Marine Radio
Display	LCD
AIS Receiver	Yes
NMEA 2000	Yes
Waterproof Rating	IPX7
Output Power	25W
NMEA 0183	Yes
Modulation	FM
Power Supply	12V DC
DSC	Class D
Channels	International, US, Canadian
GPS	Built-in
Frequency Range	156.025 MHz to 162.025 MHz
Weight	1.2 kg
