Simrad RS40 User Manual

| 47
AIS menu | RS40/RS40-B User Guide
Plotter symbols and meanings

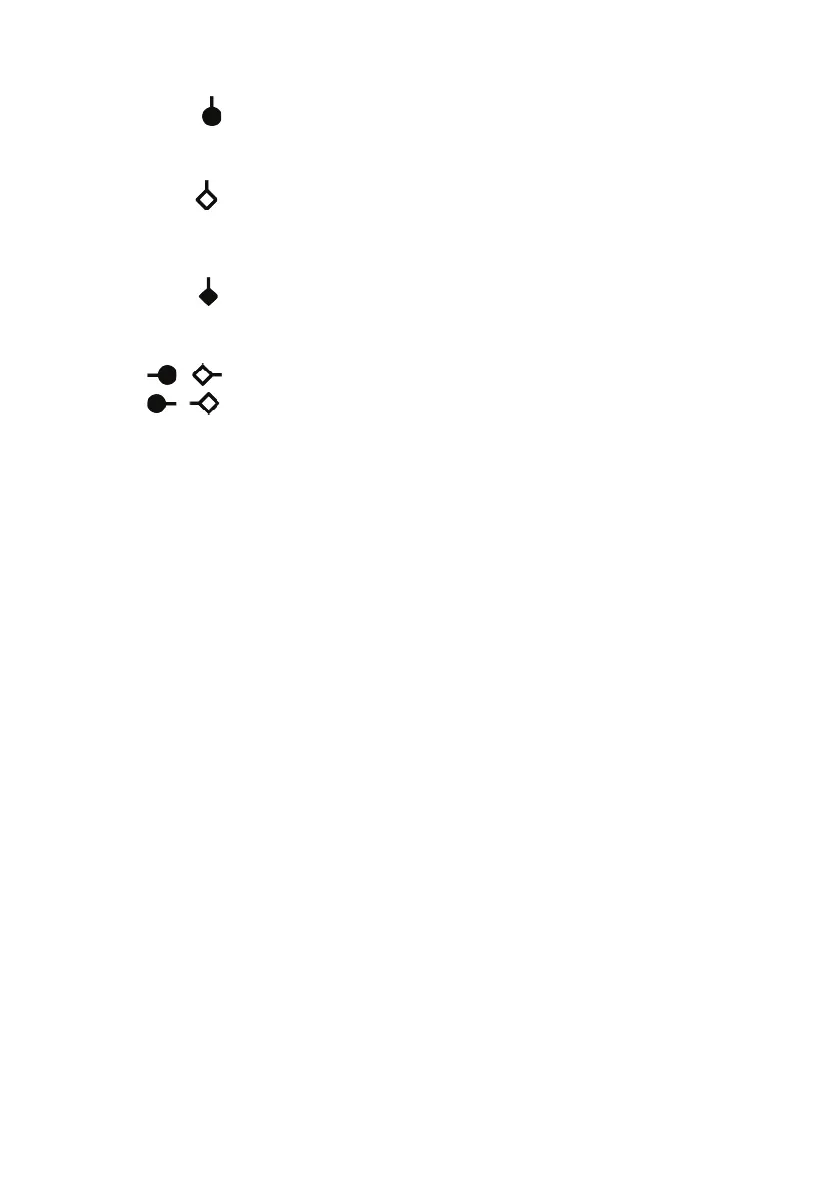

Your vessel is always in the center of the plotter screen. You are
represented by a solid circle, along with a small line that indicates
your bearing with respect to North.
All other vessels or targets displayed on the plotter screen are
represented by a diamond shape. These are targets around your
vessel that are within the current zoom distance setting. The small
line indicates the targets bearing.
When a target is selected, it is represented by a solid diamond.
Examples:
You and the target vessel are heading away from each other.
You and the target vessel are heading towards each other.
¼ Note: Nautical Miles is the only unit used in AIS mode.

Simrad RS40 Specifications

General

Type	VHF Marine Radio
Display	LCD
AIS Receiver	Yes
NMEA 2000	Yes
Waterproof Rating	IPX7
Output Power	25W
NMEA 0183	Yes
Modulation	FM
Power Supply	12V DC
DSC	Class D
Channels	International, US, Canadian
GPS	Built-in
Frequency Range	156.025 MHz to 162.025 MHz
Weight	1.2 kg
